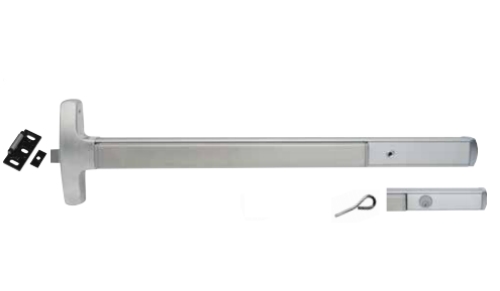

Falcon 24R-EO Narrow Rim Exit Device (Monarch)

Falcon 24R-EO Narrow Rim Exit Device (Monarch)

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

Strikes:299F strike standard.

Latchbolt:Stainless steel, 3⁄4" throw. Deadlocking latchbolt: Optional. Specify “DL" prefix.

Dogging feature: Half turn hex dogging standard. No threaded parts to wear out.

Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".

Projections:2 3⁄4" maximum, 2" dogged.

Mounting height:40" from CL to finished floor.

Fasteners: All mounting screws are concealed.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 4 - 425   SNB and 2 - 325 (1 ⁄4"-20) SNB. For devices with trim, specify 4 - 425   SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Wrought steel with heavy wrought and sintered metal parts.

**

**
