Product Details

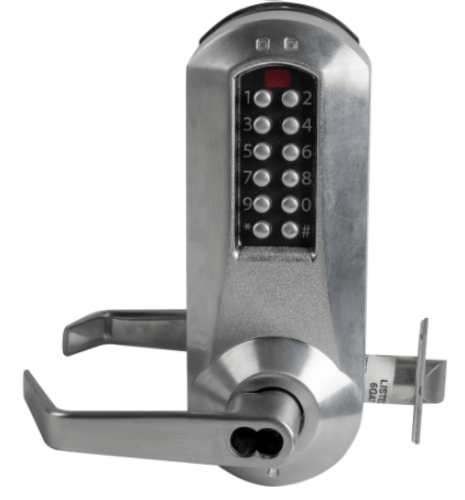

Dormakaba* E5051BWL626-41 Electronic Pushbutton Lock W/ Privacy, IC Core for BEST - Satin Chrome*

Key Override - Small Format "Best or Equivalent Interchangeable Core (6 or 7 Pin), Core not Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications

Cylindrical latch with 3-hour UL/ULC fire rating

Door Thickness: 1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

ANSI/BHMA A156.25, Grade 1 Certified

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5051BWL62641, E5051-BWL-626-41, E5051 B WL 626, E5051-BWL626, E5051 BWL 626

Dormakaba E5051BWL626-41 Electronic Lock W/ Privacy, IC Core for BEST

SKU: E5051BWL62641

In Stock

$931.30

$1,390.00

You saved $458.70

About this item

Dormakaba 5000 Series is a Heavy Duty Commercial Grade 1 Certified Electronic Keypad Lockset with 100 Access Codes, No Wiring, No Keys, Long Battery Life, Programmable Features, Multiple Authority Levels, Easy to Install

Resources

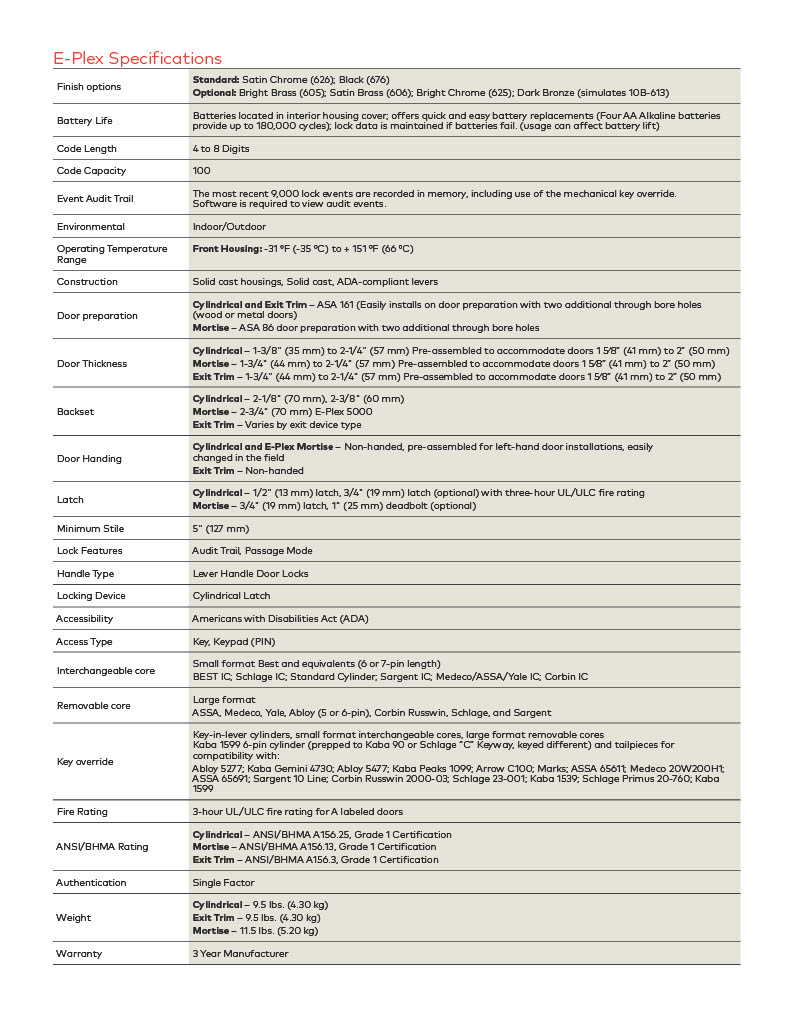

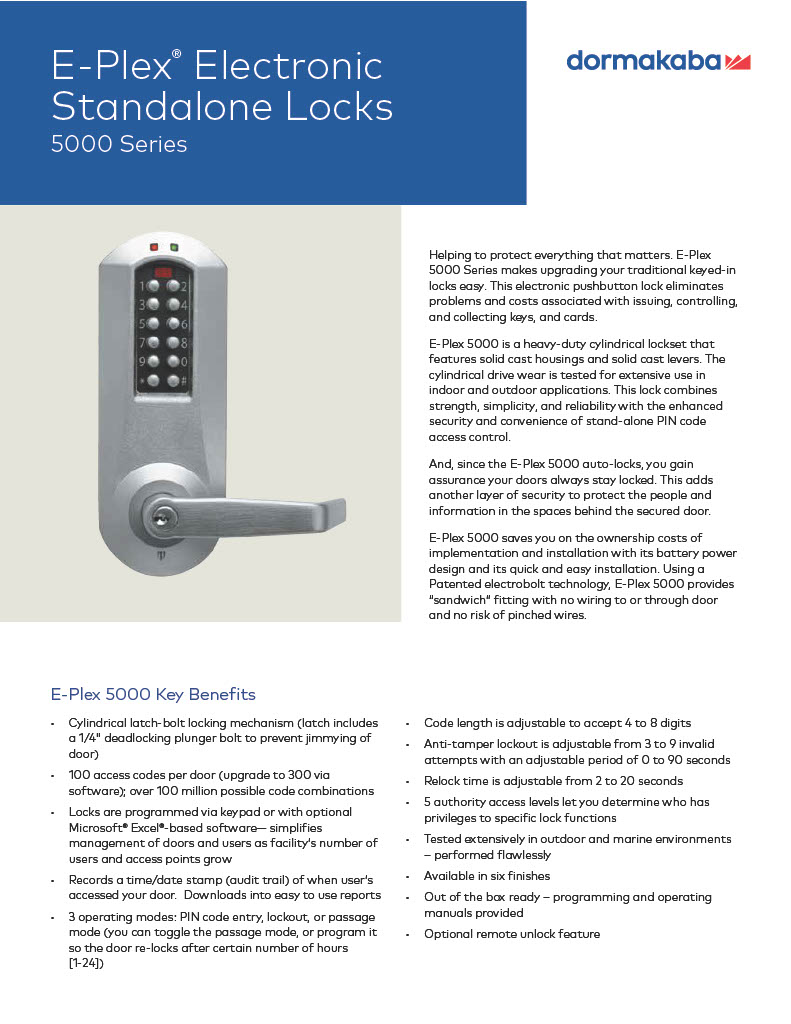

E-Plex_5000_Fact_Sheet.pdf

Dormakaba* E5051BWL626-41 Electronic Pushbutton Lock W/ Privacy, IC Core for BEST - Satin Chrome*

Key Override - Small Format "Best or Equivalent Interchangeable Core (6 or 7 Pin), Core not Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications

Cylindrical latch with 3-hour UL/ULC fire rating

Door Thickness: 1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

ANSI/BHMA A156.25, Grade 1 Certified

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5051BWL62641, E5051-BWL-626-41, E5051 B WL 626, E5051-BWL626, E5051 BWL 626
