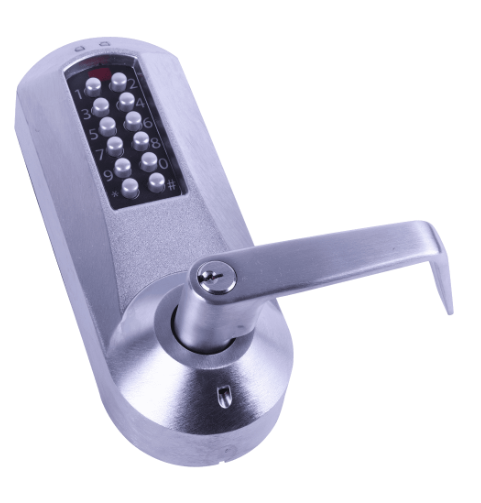

Dormakaba E5210XSWL-626, Electronic Keypad Exit Trim, Satin Chrome

Dormakaba *E5210-XS-WL Exit Device TrimW/ Cylinder  - Satin Chrome*

Provides exterior access by combination and Key Override, while allowing free egress with exit device(Exit Device not supplied).

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Number of Codes:Multiple Users—3,000 Codes

Minimum Stile Required:5" (127 mm)

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed:pre-assembled for left hand door - easily changed in the field

Scheduling:Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock

Three Operation Modes:PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Capability:30,000 Events

Battery:Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty lockset, solid cast housings, solid cast levers,wear tested for exten- sive use in indoor and outdoor applications

Door Thickness:1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

*Exit Device Compatibility:Arrow S1250, Arrow S3883F/S3800, Black & Decker (K-2) QED111/112, Cal Royal 9800, Cal Royal 2200, Corbin Russwin ED5200/5200A, Detex 1001 BP1, Detex 10/F10 Series, Dorex 8500R/8500F, Dorex 9500PR/9500FR, Dorma 9300/F9300, Dorma 9400B/F9400, Monarch 18R,F18R, Precision 21/FL21, Sargent 2828, Sargent 3828, Sargent 8810E/8800, Sargent 8888, Von Duprin 22/22F, Von Duprin 98/98F, Von Duprin 99/99F, Von Duprin XP98/99, Yale YME2100/2100, Yale 7100.(requires special K-Hub Adapter)(Exit Device not included)

ANSI/BHMA A156.3, Grade 1 Certification

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty:Three-year warranty from date of installation; built-in warranty counter in lock memory

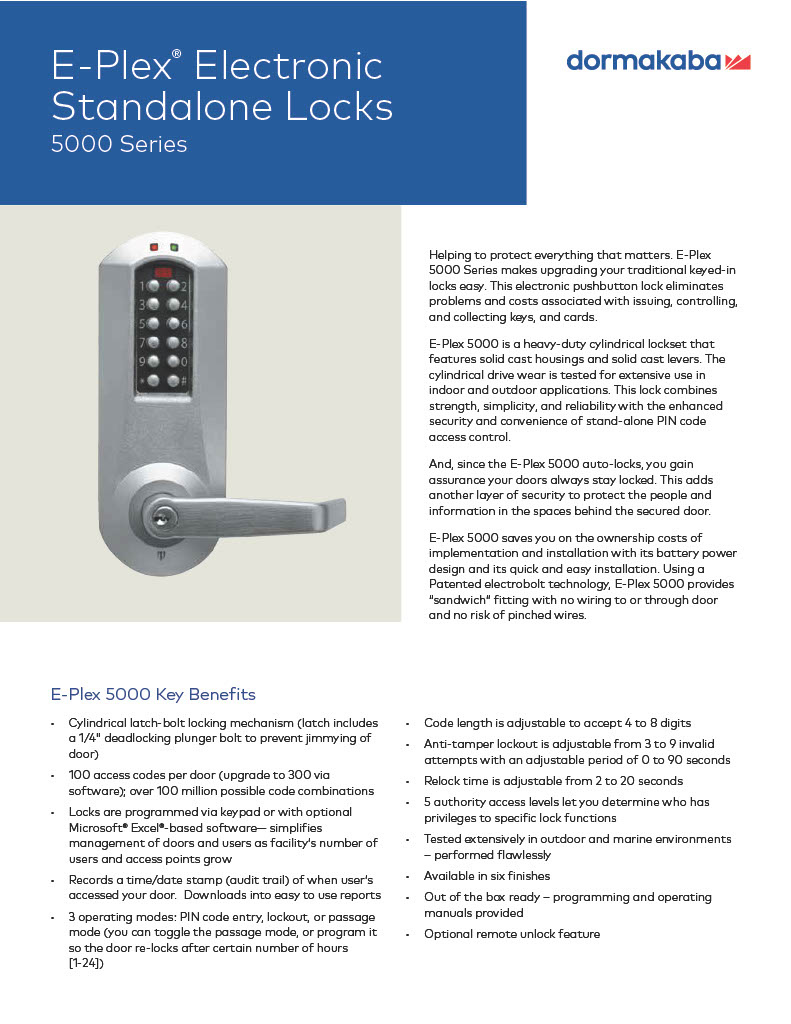

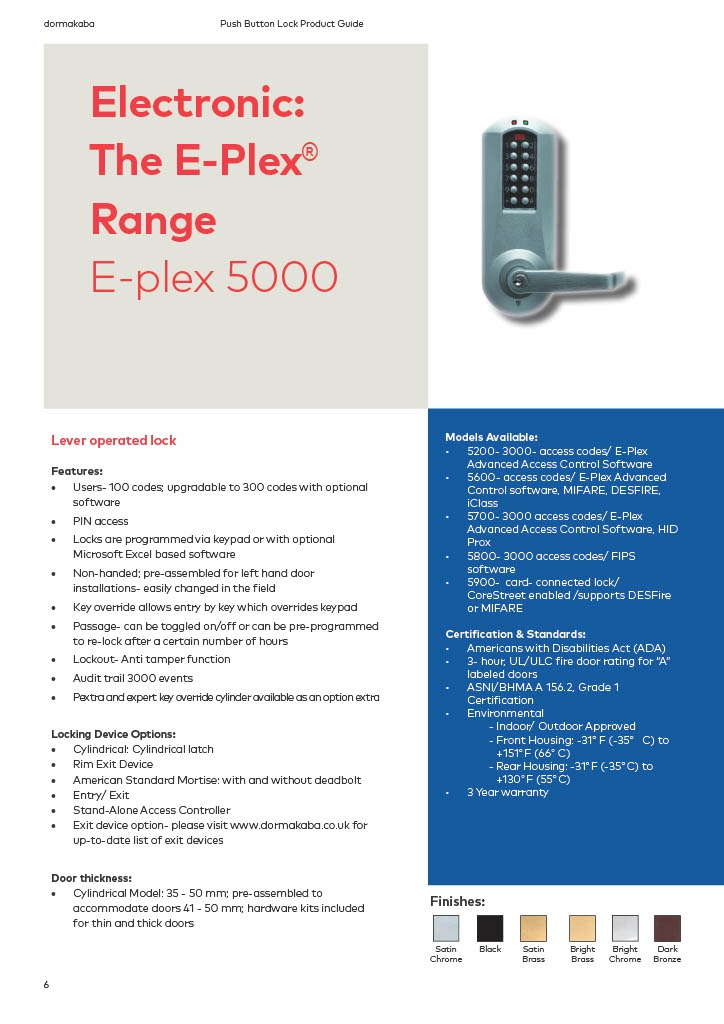

Model:DormakabaIlco E5210XSWL62641, E5210-XSWL-626, E5210XSWL 62641, E5210-XSWL-626-41, Simplex Eplex 5000, E Plex 5210,
