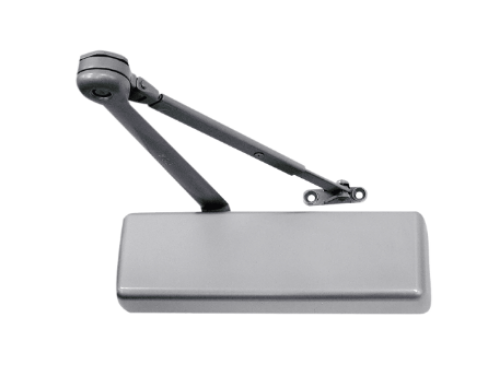

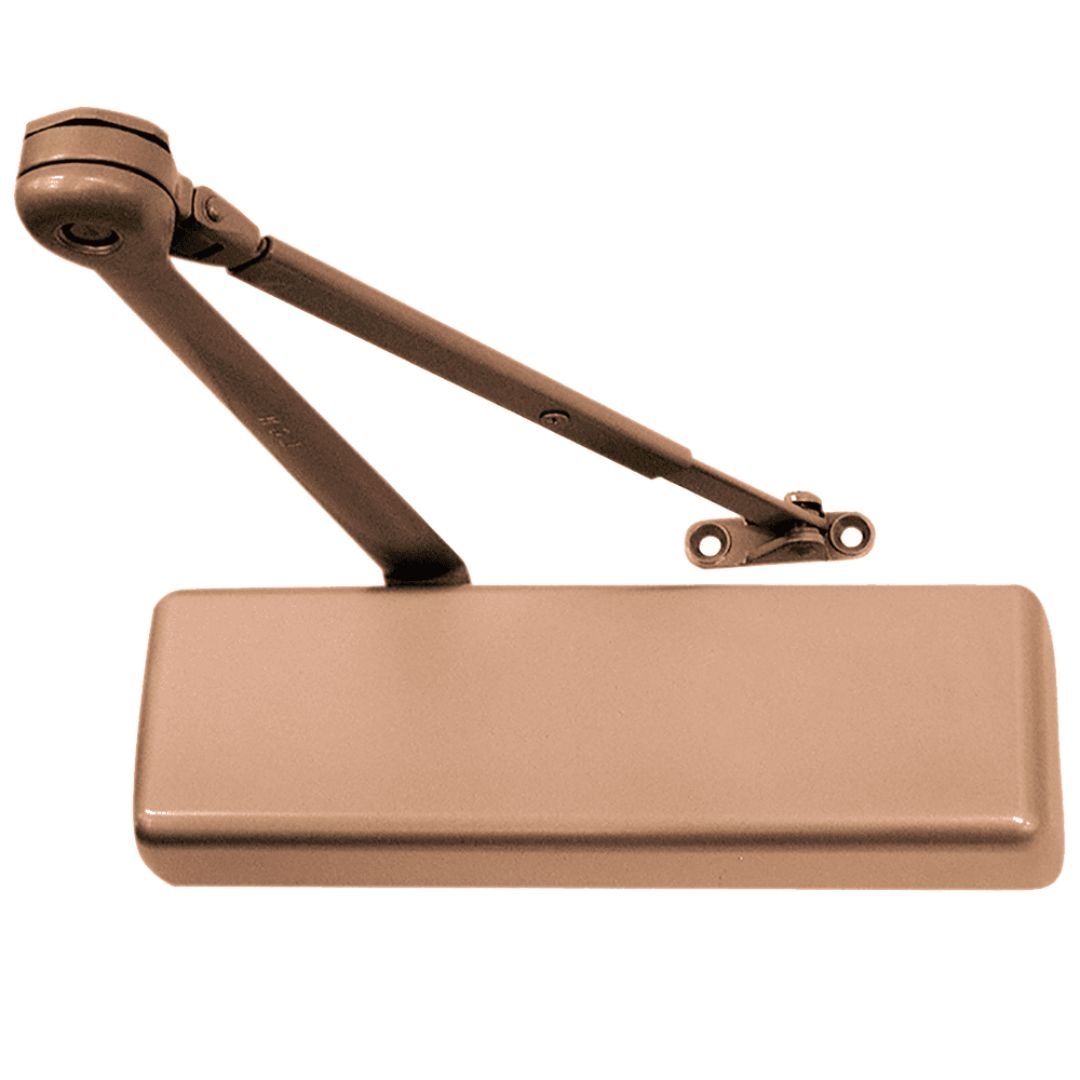

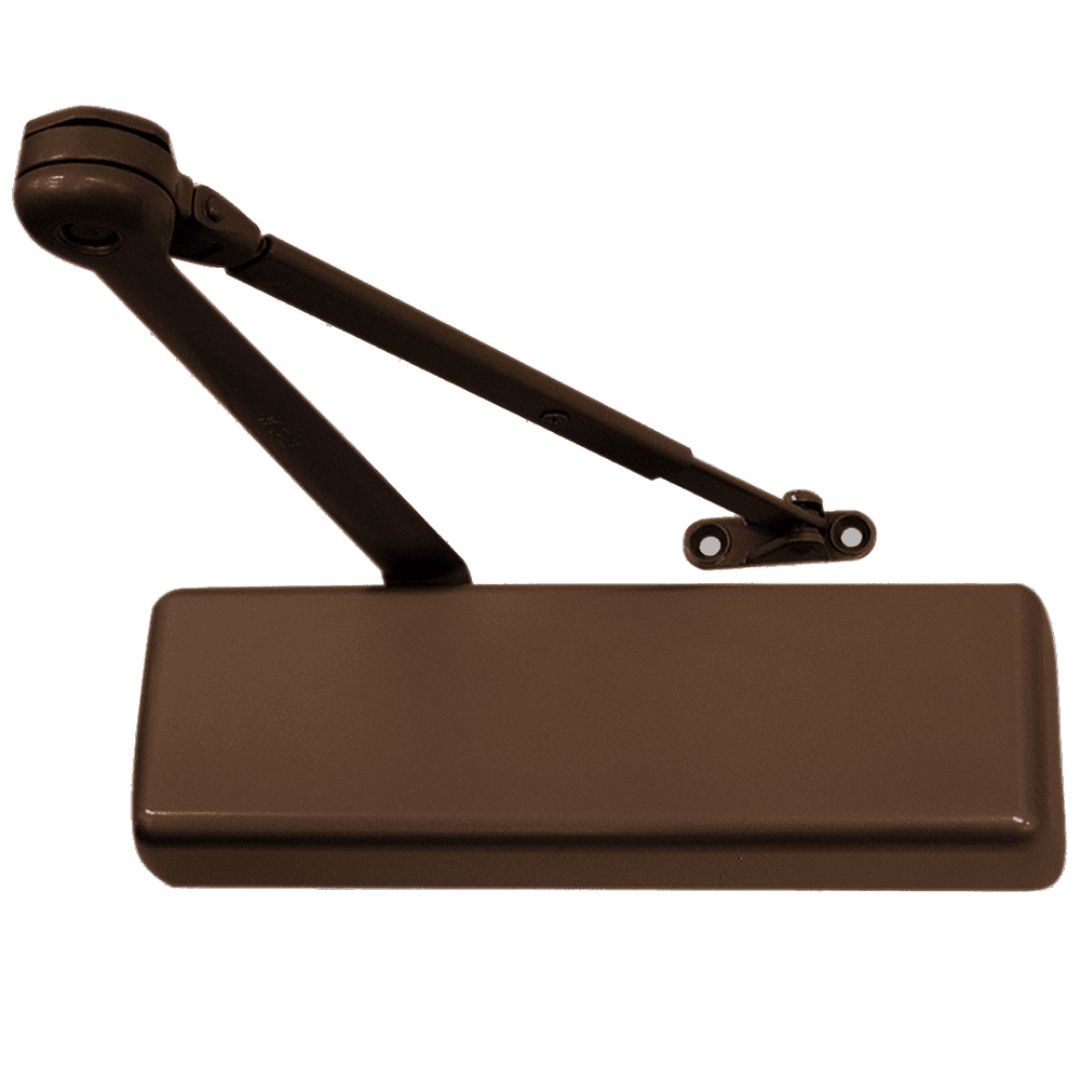

LCN 4011-H Door Closer - Mounting hinge side (Pull Side) w/ Hold Open Arm

LCN 4011-H- Heavy Duty Door Closer with Hold Open arm.

Finish:Powder Coat

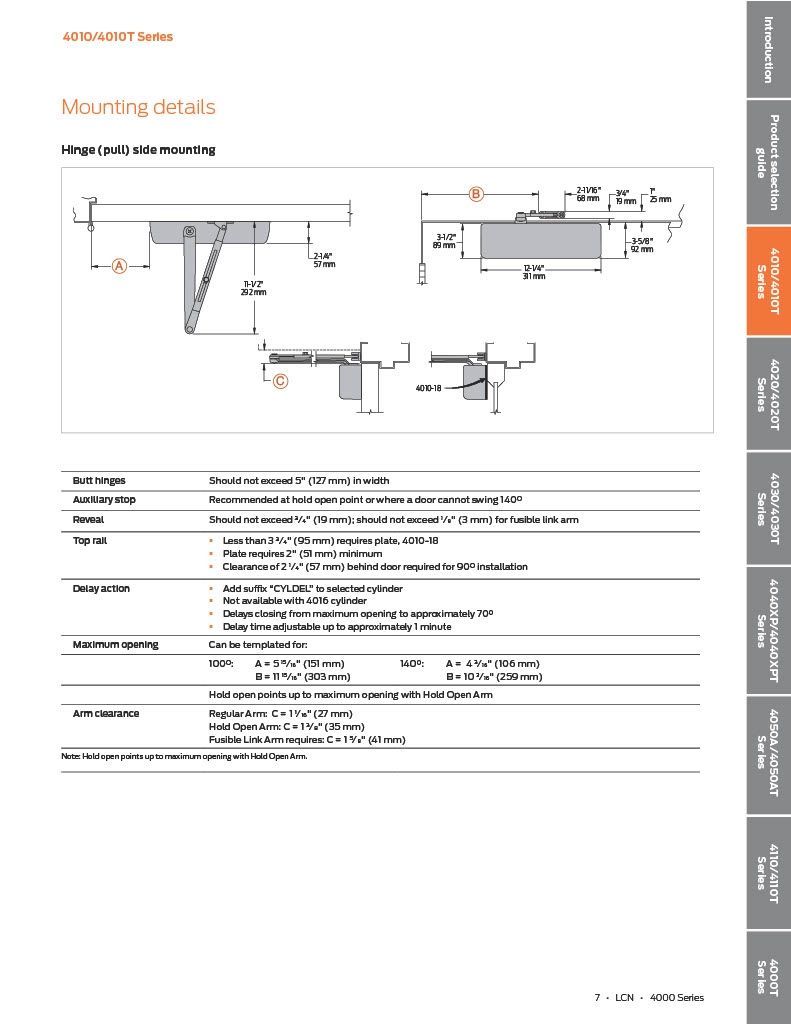

**Closer Mounting:Closer mounts hinge side (Pull Side) only.

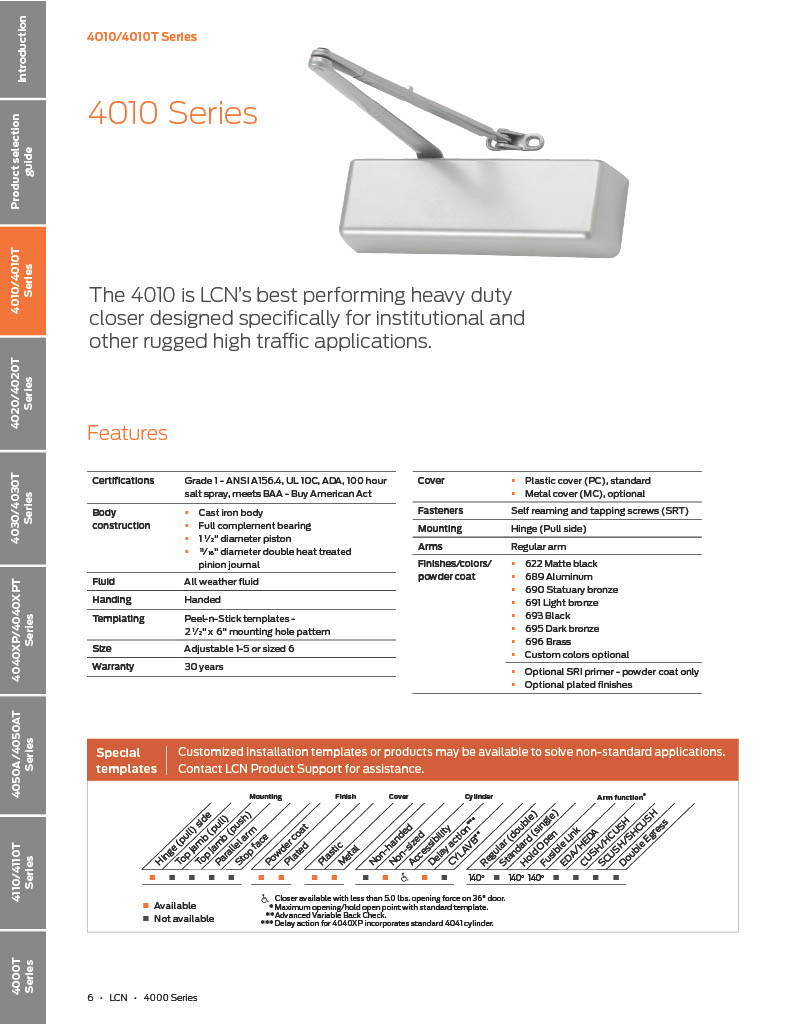

LCN 4010 Series:Cast Iron  - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size:Non-sized cylinder (4011) adjustable for interior doors 24 Degree" to 54 Degree" and exterior doors 24 Degree" to 42 Degree"

Handing:Handed; specify right or left swinging door

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

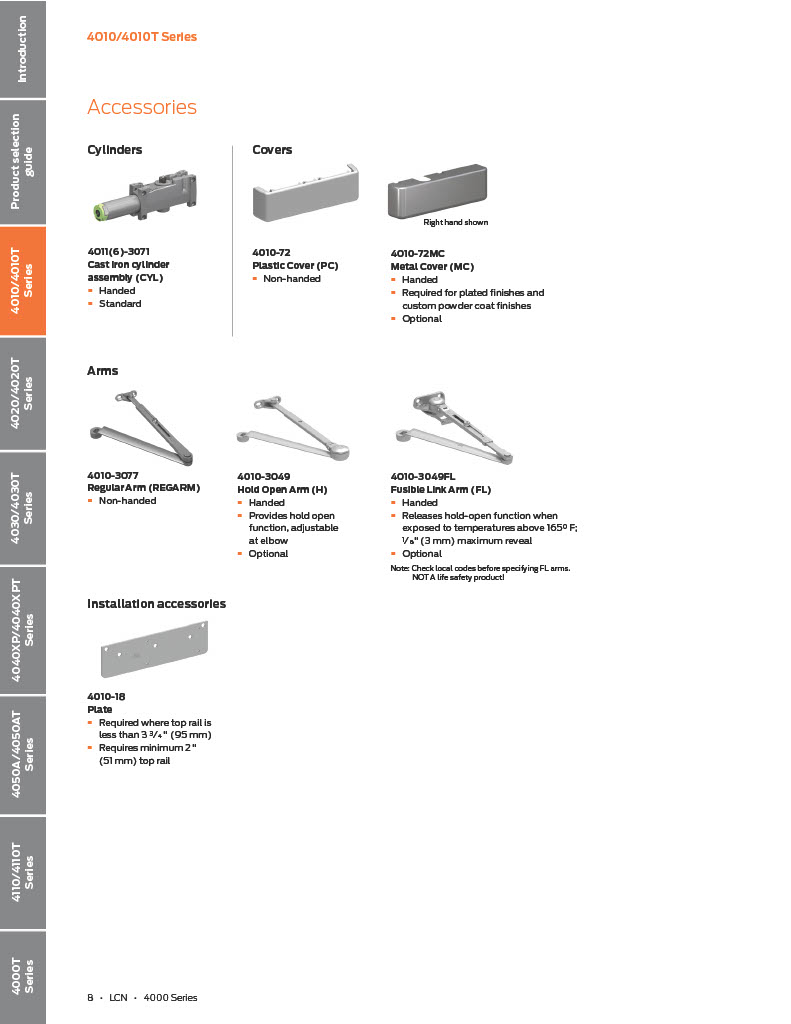

Arm:Regular Arm, 4010-3049**provides hold-open function,adjustable at elbow.

Cover:4010-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

Finishes: ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model:LCN, 4010H, 4011H, 4011-H, 4011HALUM, 4011HDKBRZ, 4011HLTBRZ, 4011HBRASS, 4011H689, 4011H695, 4011H691, 4011H696, 4011HDEL, 4011HMC, 4011HDELALUM, RH, LH, 4011HRHALUM, 4011HLHALUM, Right Hand, Left Hand,Delayed Action (DEL).
