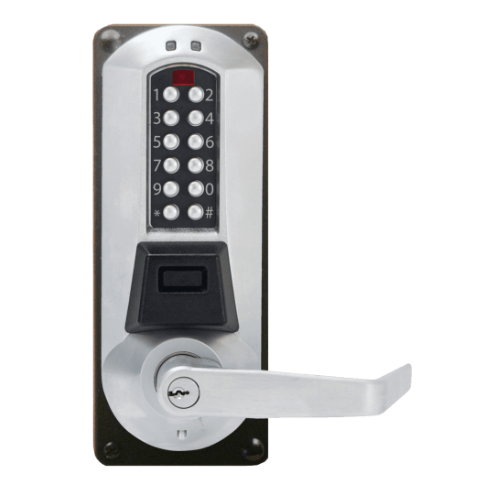

Dormakaba E5786XSWL-626-41 Double Sided - Prox - Mortise lock

Dormakaba* E5786-XS-WL-626-41 Double Sided Electronic Mortise lock -Pin/Prox Access - With Cylinder - Satin Chrome *

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

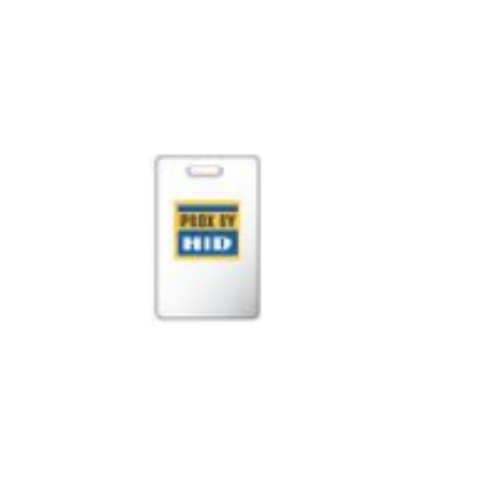

Access Control:Electronic lock with dual credential capability—PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.  PIN only  PROX card only  PIN + PROX card

Minimum Stile Required:5" (127 mm)

Locking Device:American Standard Mortise: With 1¼" (32 mm) face plate; without deadbolt

Number of Codes:Multiple Users—300 with LearnLok feature; 3,000 with optional software

Programming:Locks are programmed via keypad or with optional Microsoft Excel-based software—simplifies management of doors and users as facility’s number of users and access points grow

Handing:Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Key Override:Key-in-Lever/Knob cylinders, small format interchangeable cores, large format removable cores

Scheduling:Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock

Operation Modes:  Single credential—access  Single credential—egress

Authority Levels:Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds

Battery Operation:Batteries located in mortise housing; offers quick and easy battery replacement for institutions (four AA Alkaline batteries provide up to 100,000 cycles). Lock data is maintained if batteries fail.

Construction:Extra heavy-duty Grade 1 lock; solid cast housings; solid cast zinc levers, tested for extensive use in indoor and outdoor applications

Numeric Keypad:Vandal resistant, solid metal pushbuttons

Handing:Non-handed; pre-assembled for left-hand door installation—easily changed in the field

Backset:Mortise: 2¾" (70 mm) backset

Latch:¾" (19 mm) latch

Ease of Installation:Utilizes existing mortise prep for simple installation

Door Preparation:Easily installs on wood or metal doors; four bolt installation; no wiring

Door Thickness:1¾" (44 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Battery:Batteries located in mortise housing; provides quick and easy battery replacement for institutions; four AA batteries provide up to 100,000 cycles

Indicators:Audible and visual indicators; low battery visual indicator Audit

Audit Capability:30,000 Events

Access Schedules:Up to 32 holiday and vacation blocks and 16 access schedules

Certification and Testing

Accessibility Standard:Americans with Disabilities Act (ADA)

Fire Rating:3-hour, UL/ULC fire door rating for "A" labeled doors         Durability:ANSI/BHMA Grade 1 Certified for Mortise Electronic Locks (A156.13 and A156.25)   Environmental:Indoor/Outdoor Approved Front Housing: -31 Degree F (-35  Degree C) to 151 Degree F (66 Degree C); Rear Housing: -31 Degree F (-35 Degree C) to 151 Degree F (66 Degree C)

Warranty:1-year warranty from date of installation; built-in warranty counter in lock memory

Model: Dormakaba E5786XSWL626-41, E5786XSWL-626-41, E5786-XS-WL-626-41, E5786XSWL-626-41, E5786XSWL62641, E5786XSWL 626 41
