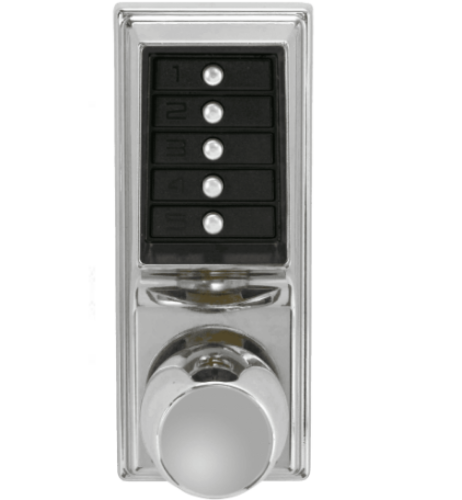

Dormakaba Simplex 1011-026 Pushbutton Lock - Bright Chrome

Dormakaba *Simplex  1011 Series Keyless Pushbutton Lock*

Cylindrical Lock with Knob, Combination Entry Only, No Key Override

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

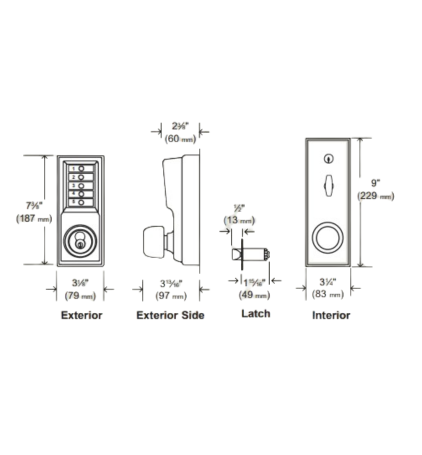

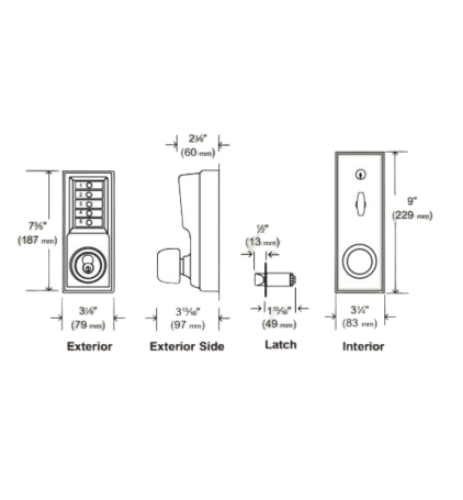

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Passage option:(optional) Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key (included with all passage feature models)

Lockout option:(optional) Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only.

Model: Dormakaba , Dormakaba Ilco, Dormakaba Access, Simplex, 1011, 1011026, 101126, 1011US26,1011-026, 1011-26, 1011-US26,1011 026, 1011 26, 1011 US26, 1011-026-41, 625,Bright Chrome
