Dormakaba Simplex 1021C-026 Pushbutton Lock - Bright Chrome - Corbin

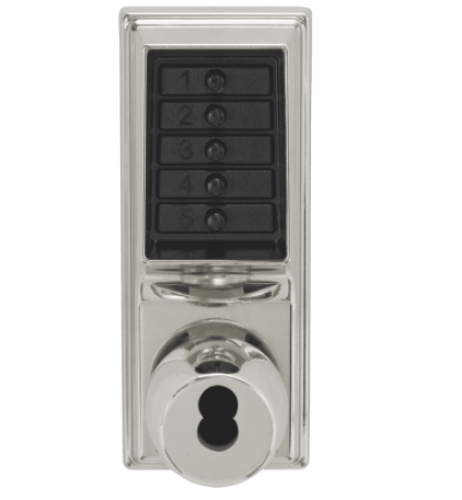

Dormakaba *Simplex 1021C Pushbutton Lock, with Key Override, prepared for "Corbin Russwin" Cores*

Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Corbin Russwin Large Format IC Cores, Core not included.

Features Include:

Heavy duty cylindrical lock housing with cast front housing, unified trim plate, cast knobs

Vandal resistant, solid metal pushbuttons

Factory handed for left hand doors, easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch, 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate, ASA strike plate

Fire Rating: 3 hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Passage option: Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (optional)

Lockout option: Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override (optional) only.

Model: Dormakaba Ilco, Simplex, 1021C026, 1021C26, 1021CUS26, 1021C-026-41, 625, Bright Chrome
