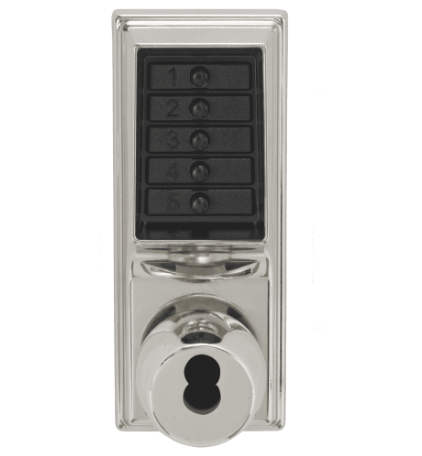

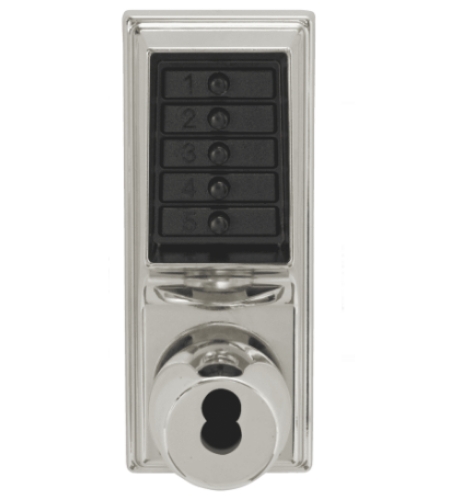

Dormakaba Simplex 1021M-026 Pushbutton Lock - Bright Chrome - Medeco

Dormakaba *Simplex 1021M Pushbutton Lock, with Key Override,preparedfor*"Medeco and Yale" Cores

Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Medeco and Yale Large Format IC Cores, Core not included.

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

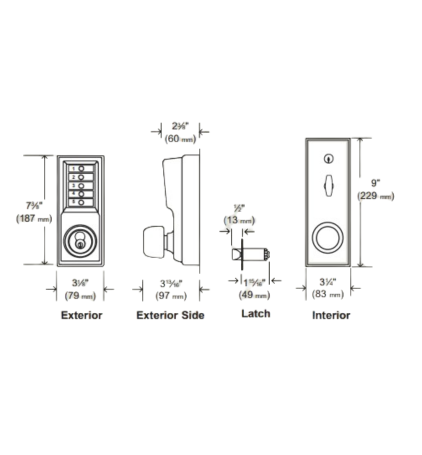

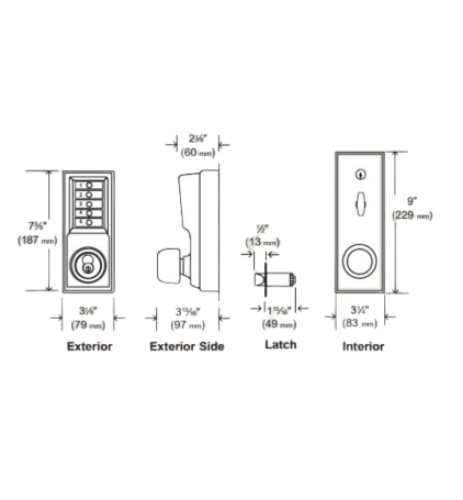

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch; 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

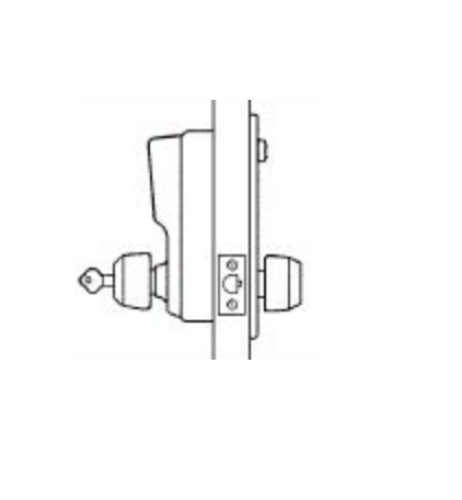

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Passage option:(optional) Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key (included with all passage feature models)

Lockout option:(optional) Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only.

Model: Kaba, Kaba Ilco, Kaba Access, Simplex, 1021M, 1021M026, 1021M26, 1021MUS26, 1021M-026, 1021M-26, 1021M-US26, 1021M 026, 1021M 26, 1021M US26, 1021 M, 1021 M026, 1021 M26, 1021 MUS26, 1021 M-026, 1021 M-26, 1021 M-US26, 1021 M 026, 1021 M 26, 1021 M US26, 1021-M, 1021-M026, 1021-M26, 1021-MUS26, 1021-M-026, 1021-M-26, 1021-M-US26, 1021-M 026, 1021-M 26, 1021-M US26, 1021M-026-41, 625, Bright Chrome
