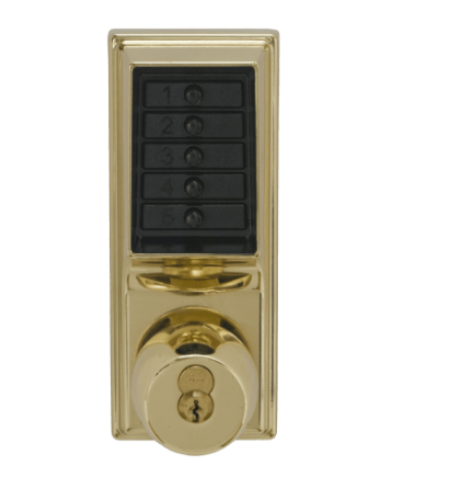

Dormakaba Simplex 1041B-03 Pushbutton Lock - Bright Brass - Key Override

Dormakaba *Simplex 1041B Pushbutton Lock, with Key Override "Best and Compatibles" with Passage Feature*

Cylindrical keyless Lock with Knob, Combination Entry and Key Override Best and Compatibles (Best, Arrow & Falcon Small Format IC Cores)

Passage:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

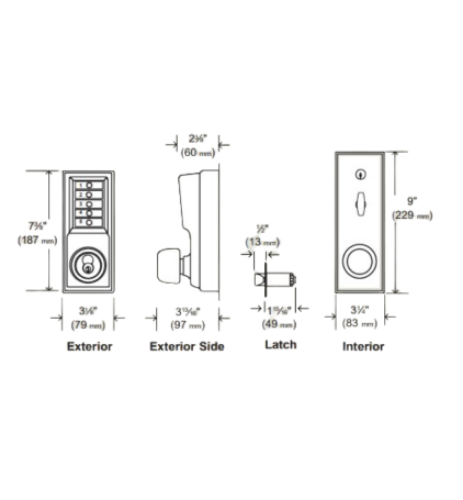

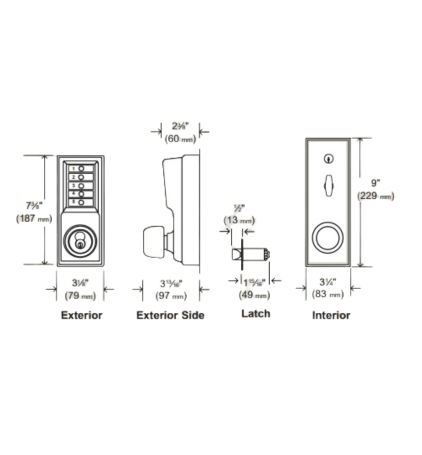

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch; 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

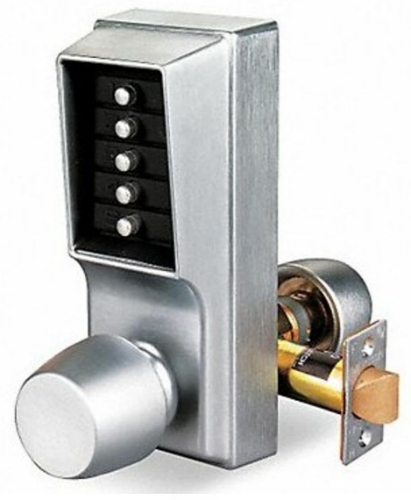

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

Combination Entry and Key Override (model 1021B)

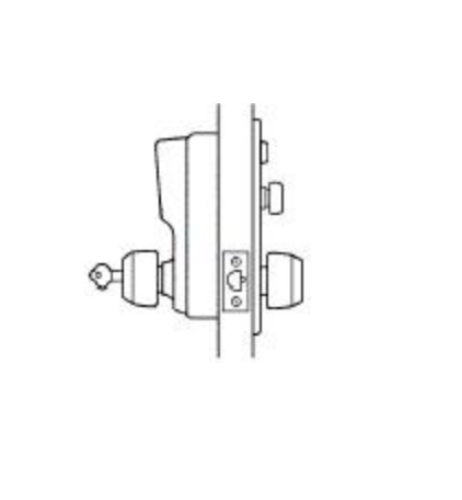

Combination Entry, Key Override and Passage (model 1041B)

Model: Dormakaba, Dormakaba Ilco, Dormakaba Access, Simplex, 1041B, 1041B03, 1041B3, 1041BUS3, 1041B-03, 1041B-3, 1041B-US3, 1041B 03, 1041B 3, 1041B US3, 1041 B, 1041 B03, 1041 B3, 1041 BUS3, 1041 B-03, 1041 B-3, 1041 B-US3, 1041 B 03, 1041 B 3, 1041 B US3, 1041-B, 1041-B03, 1041-B3, 1041-BUS3, 1041-B-03, 1041-B-3, 1041-B-US3, 1041-B 03, 1041-B 3, 1041-B US3, 1041B-03-41, 605, Bright Brass
