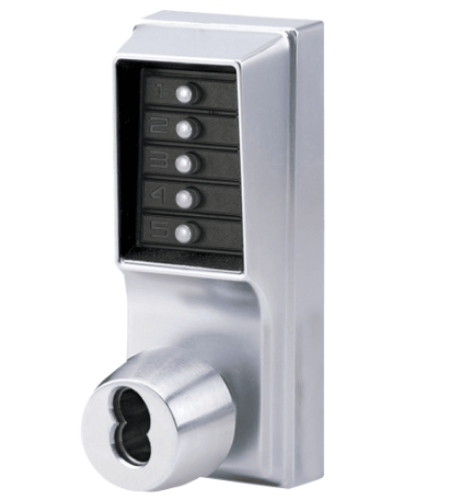

Dormakaba Simplex 1041M-26D Pushbutton Lock - Satin Chrome - Medeco

Dormakaba *Simplex 1041M Pushbutton Lock, with Key Override,preparedfor*"Medeco and Yale" Cores with Passage Feature

** Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Medeco and Yale Large Format IC Cores, Core not included.

Passage:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch; 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Model: Dormakaba, Dormakaba Ilco, Dormakaba Access, Simplex, 1041M, 1041M26D, 1041MUS26D, 1041M-26D, 1041M-US26D, 1041M 26D, 1041M US26D, 1041 M, 1041 M26D, 1041 MUS26D, 1041 M-26D, 1041 M-US26D, 1041 M 26D, 1041 M US26D, 1041-M, 1041-M26D, 1041-MUS26D, 1041-M-26D, 1041-M 26D, 1041-M US26D, 1041M-26D-41, 626, Satin Chrome
