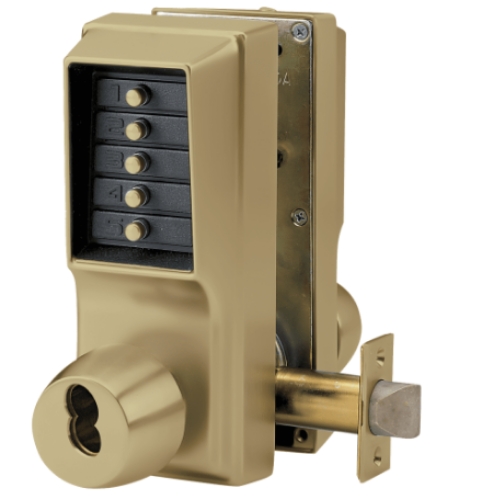

Dormakaba Simplex EE1021C/EE1011-05 2-Sided Lock f/ Corbin - Antique Brass

Dormakaba* Simplex EE1021C/EE1011 Series Double Sided Pushbutton Lock (Back to Back)*

Key Override:prepared*for*"Corbin Russwin" Cores

Cylindrical Lock with Knob, Combination with Key Override Entry / Combination only Egress

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Highly Water Resistant

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled door

Door Thickness: 1-3/8" to 2-1/4" thick.

Models:

Combination Entry / Combination Egress(EE1011/EE1011)

Combination Entry / Combination Egress / Key override Entry(EE1021/EE1011)

Combination and Key Override Entry / Combination and Key Override Egress(EE1021/EE1021)

Model: Dormakaba, Ilco, Access, Simplex, EE1021C/EE101105, EE1021C/EE1011US5, EE1021C/EE1011-05-41, 609, Antique Brass
