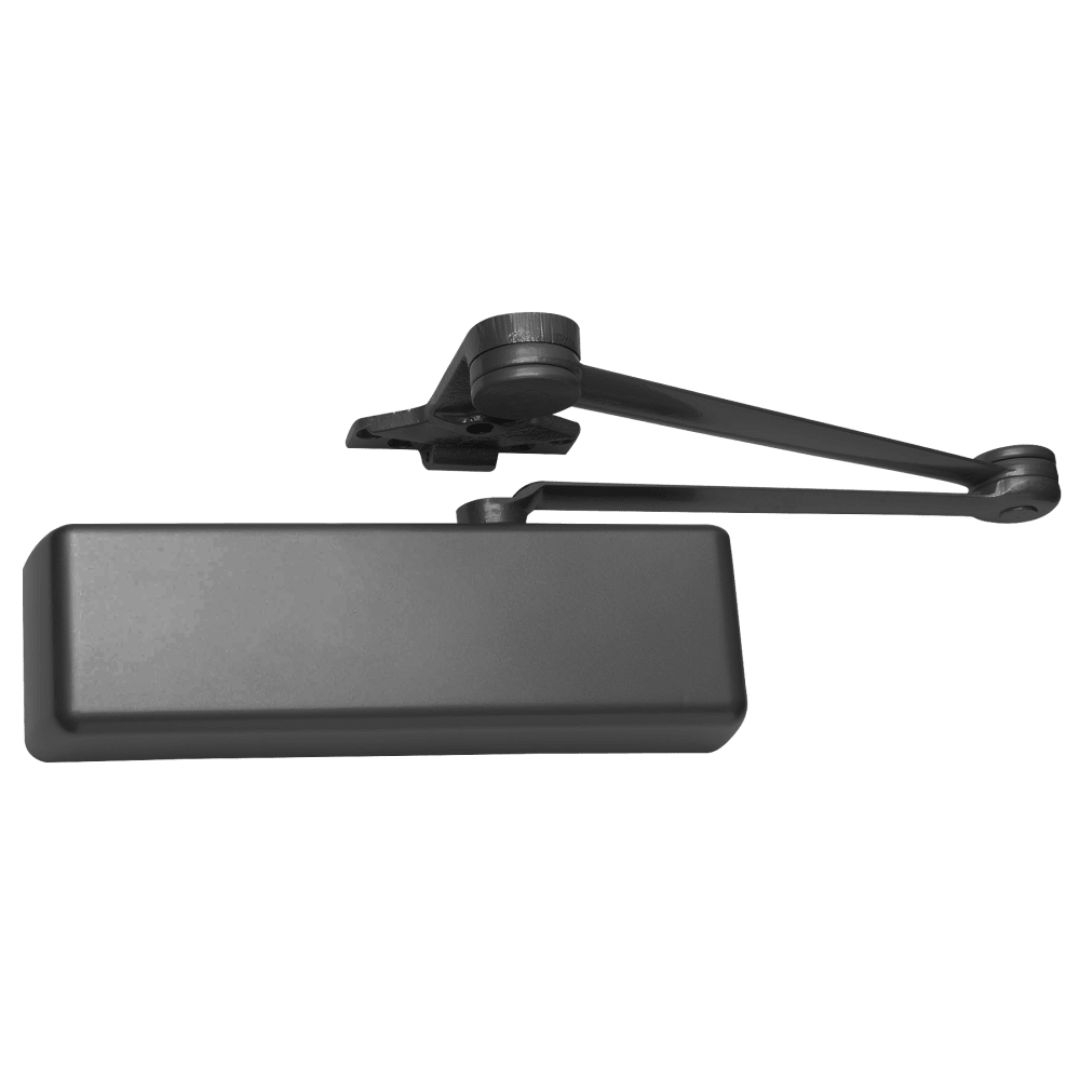

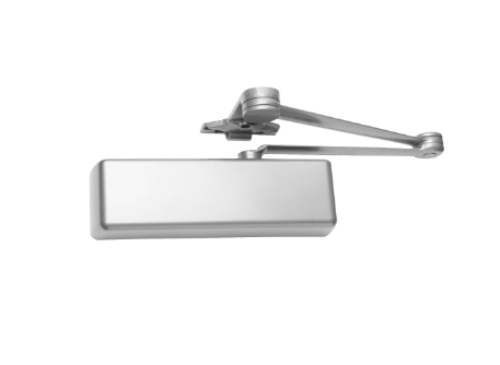

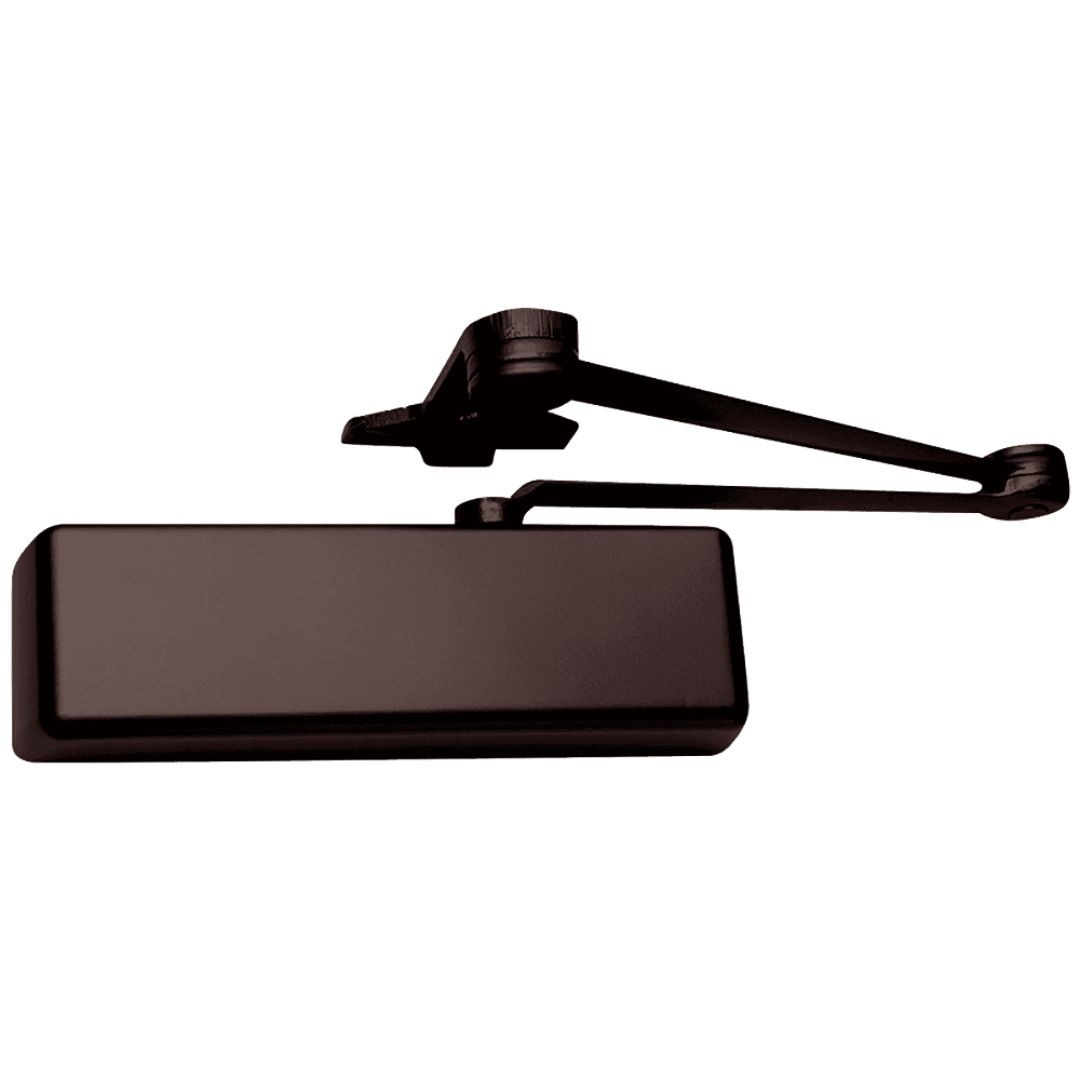

LCN 4111 CUSH, Door Closer - Mounting Parallel Arm (Push Side) - CUSH-N-STOP Arm

LCN 4111- Heavy Duty Door Closer, CUSH-N-STOP Arm.

Finish:Powder Coat

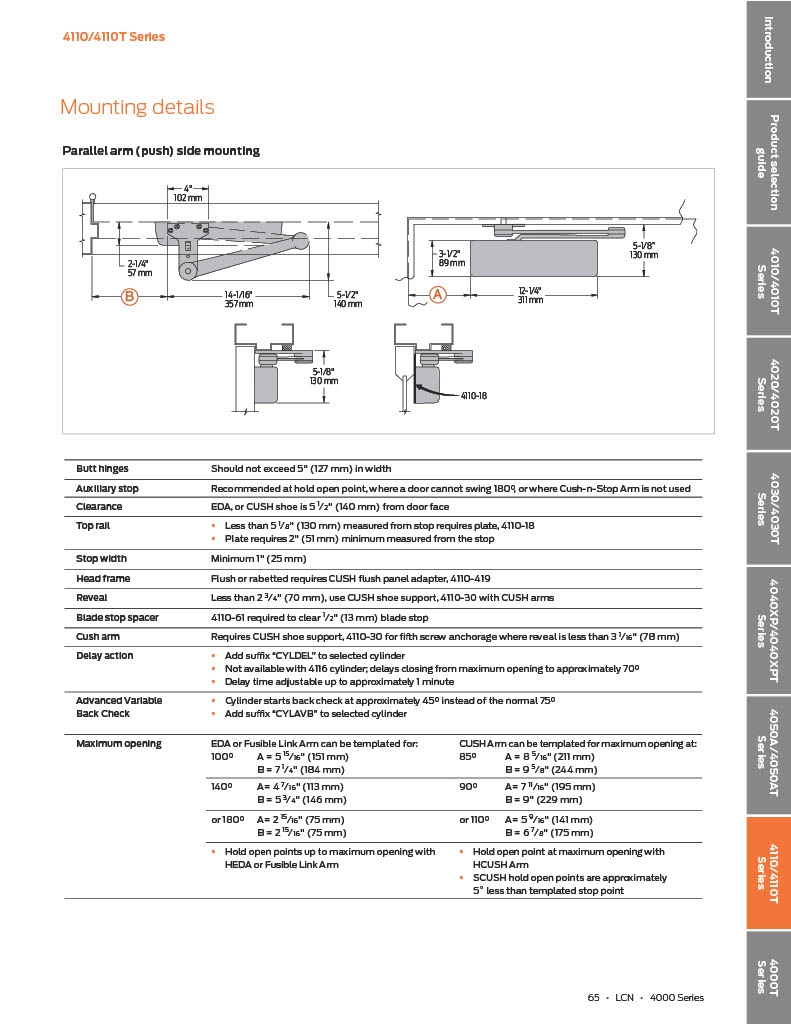

**Closer Mounting:Closer mounts parallel arm(Push Side) only.

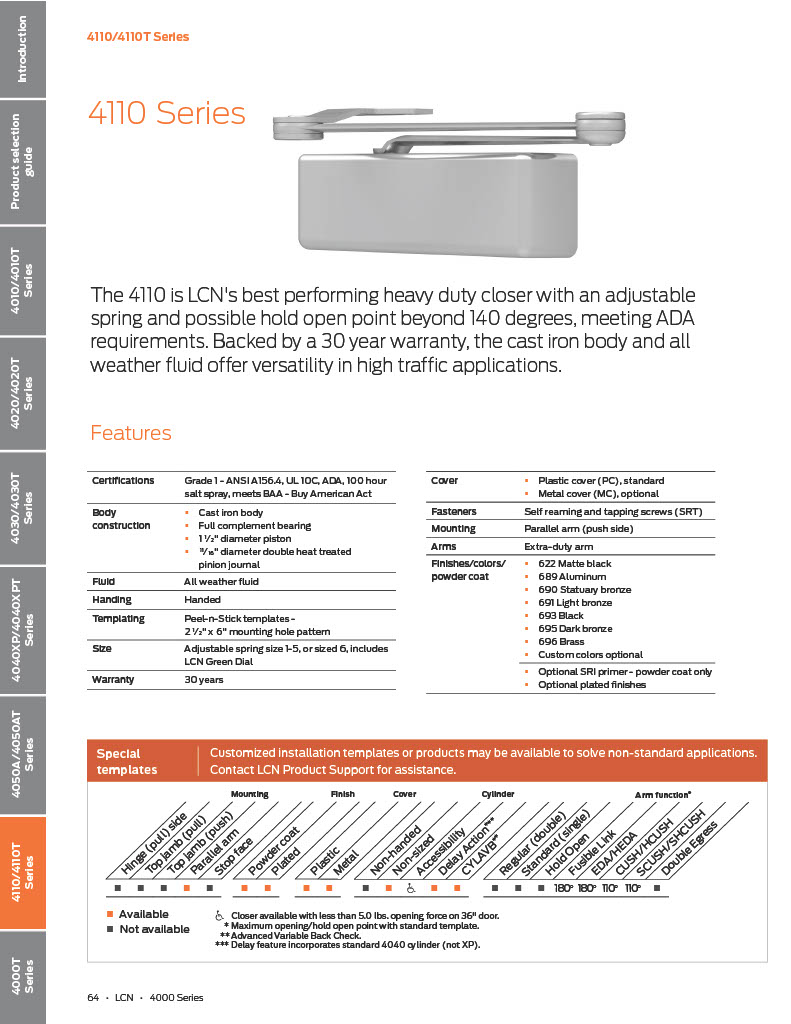

LCN 4110 Series:Cast Iron  - Forged Steel Arm - Double Heat Treated Steel Pinion - All Weather Fluid - LCNFastPower Adjust - Fast & Accurate Installation.

Power size:Non-sized cylinder (4111) adjustable for interior doors to 4'6" and exterior doors to 3'6".

Handing:Handed; specify right or left swinging door

UL:UL & cUL Listed

ANSI:Tested and certified under ANSI Standard A156.4, grade 1

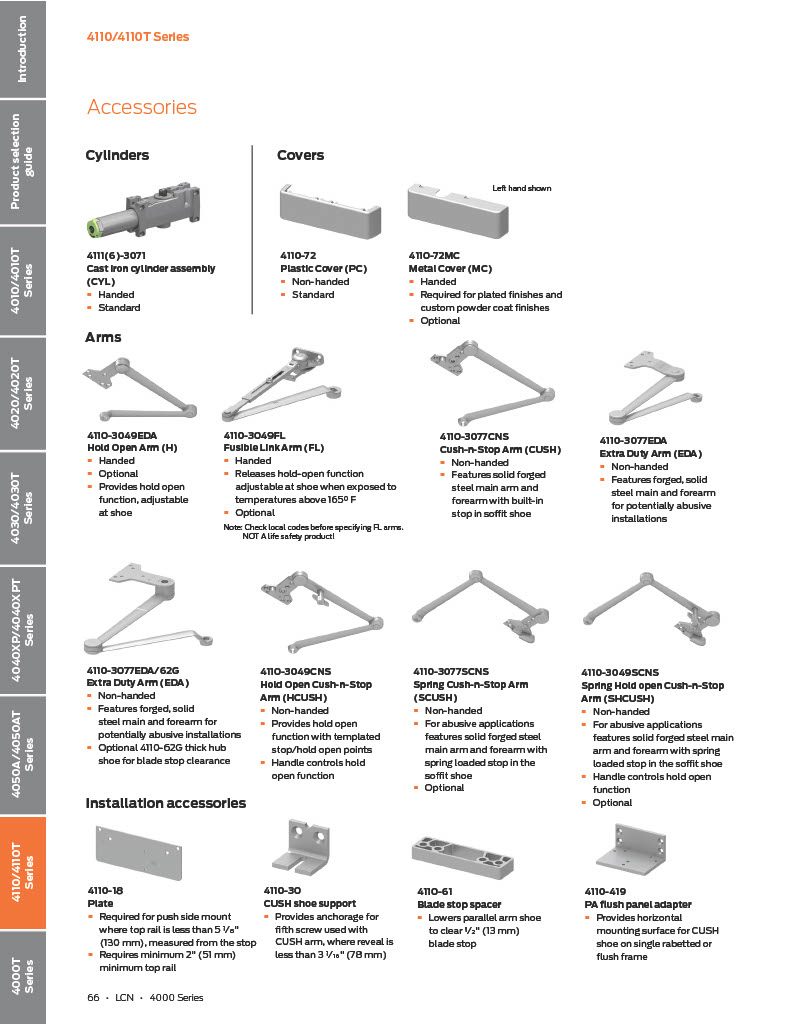

Arm:*Arm:*CUSH-N-STOPARM, 4110-3077CNS, non-handed parallel arm features solid forged steel main arm and forearm with stop in soffit shoe.

Cover:4110-72 Standard, non-handed plastic cover.

Screw Pack:Packed w/TBWMS (Thru Bolts, Wood & Machine Screws)

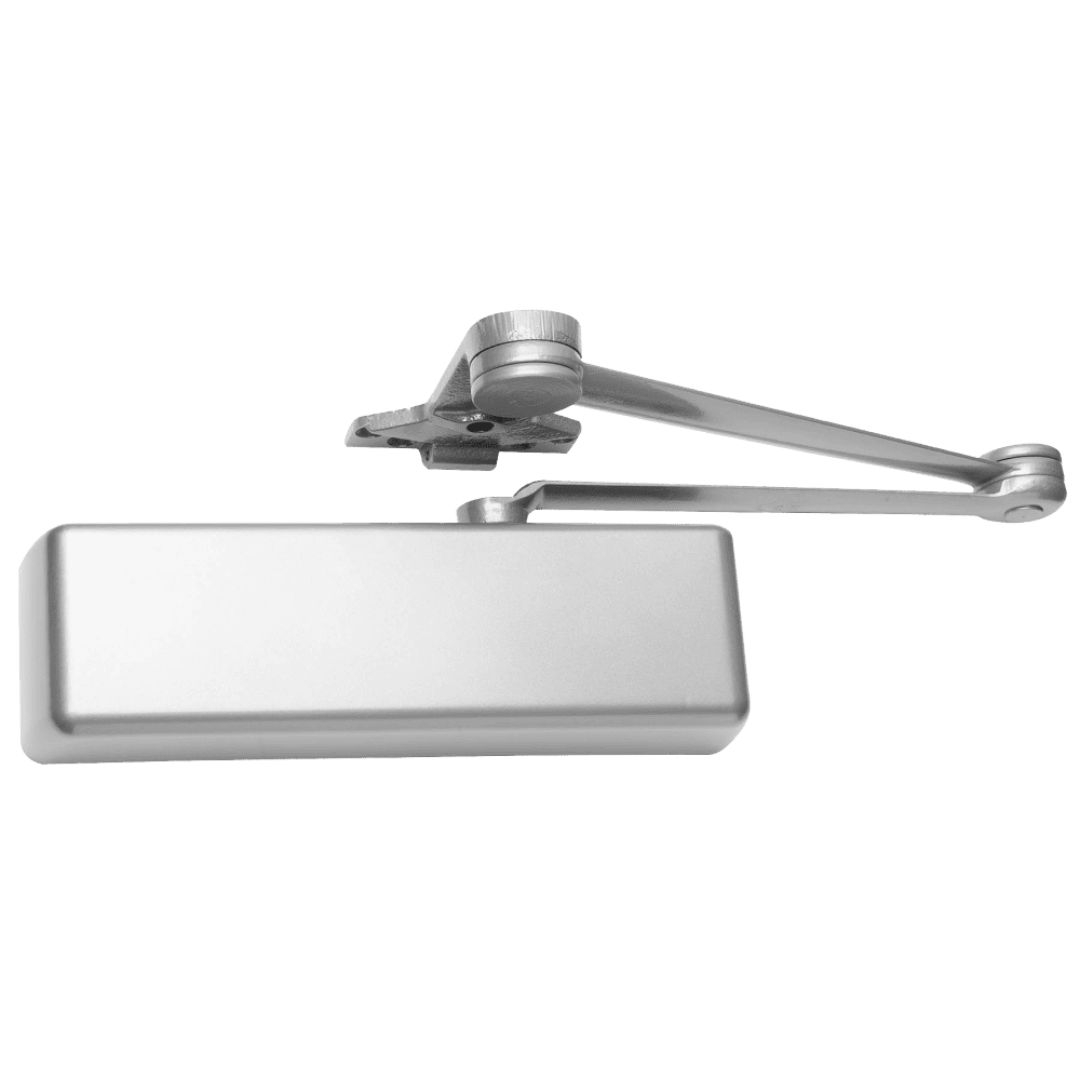

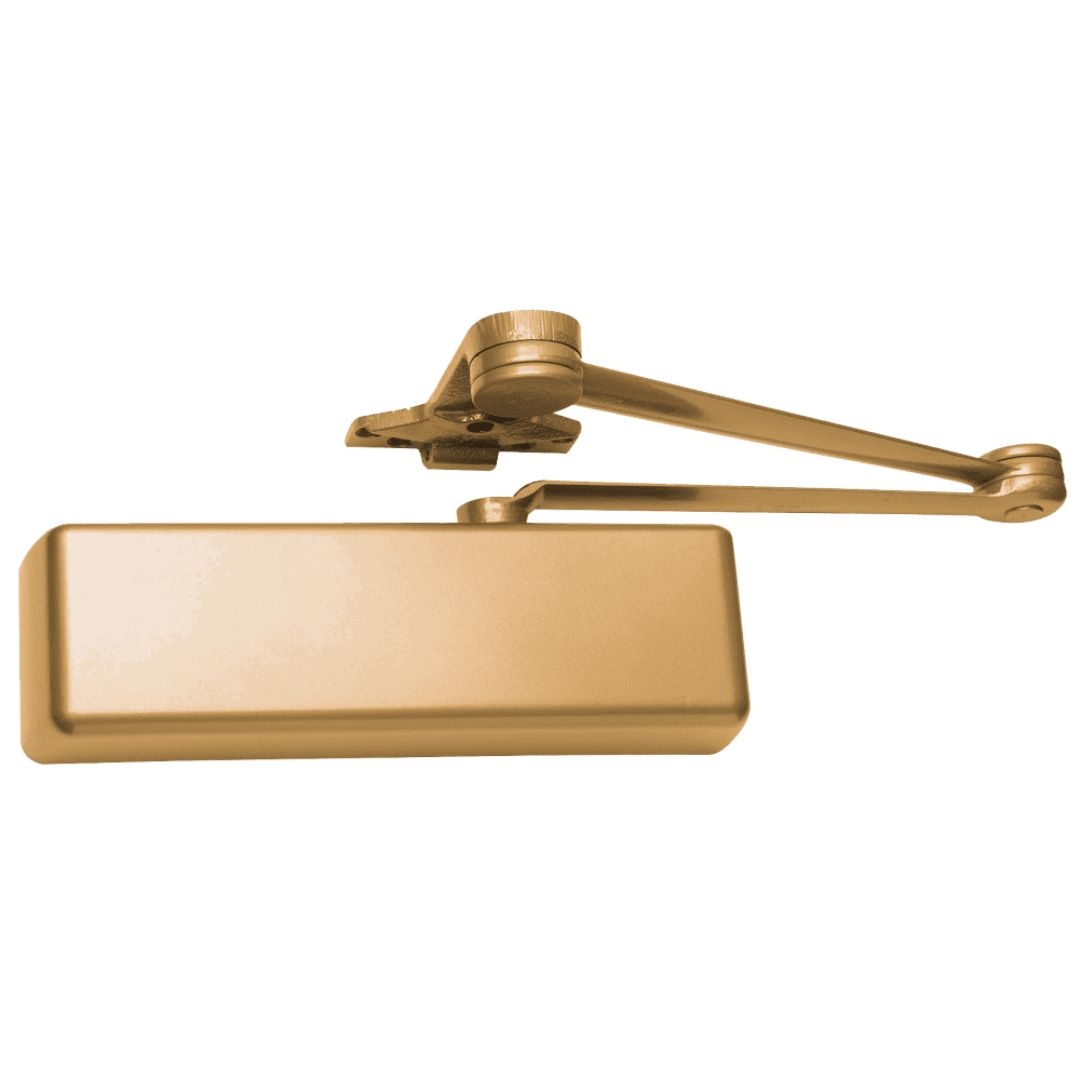

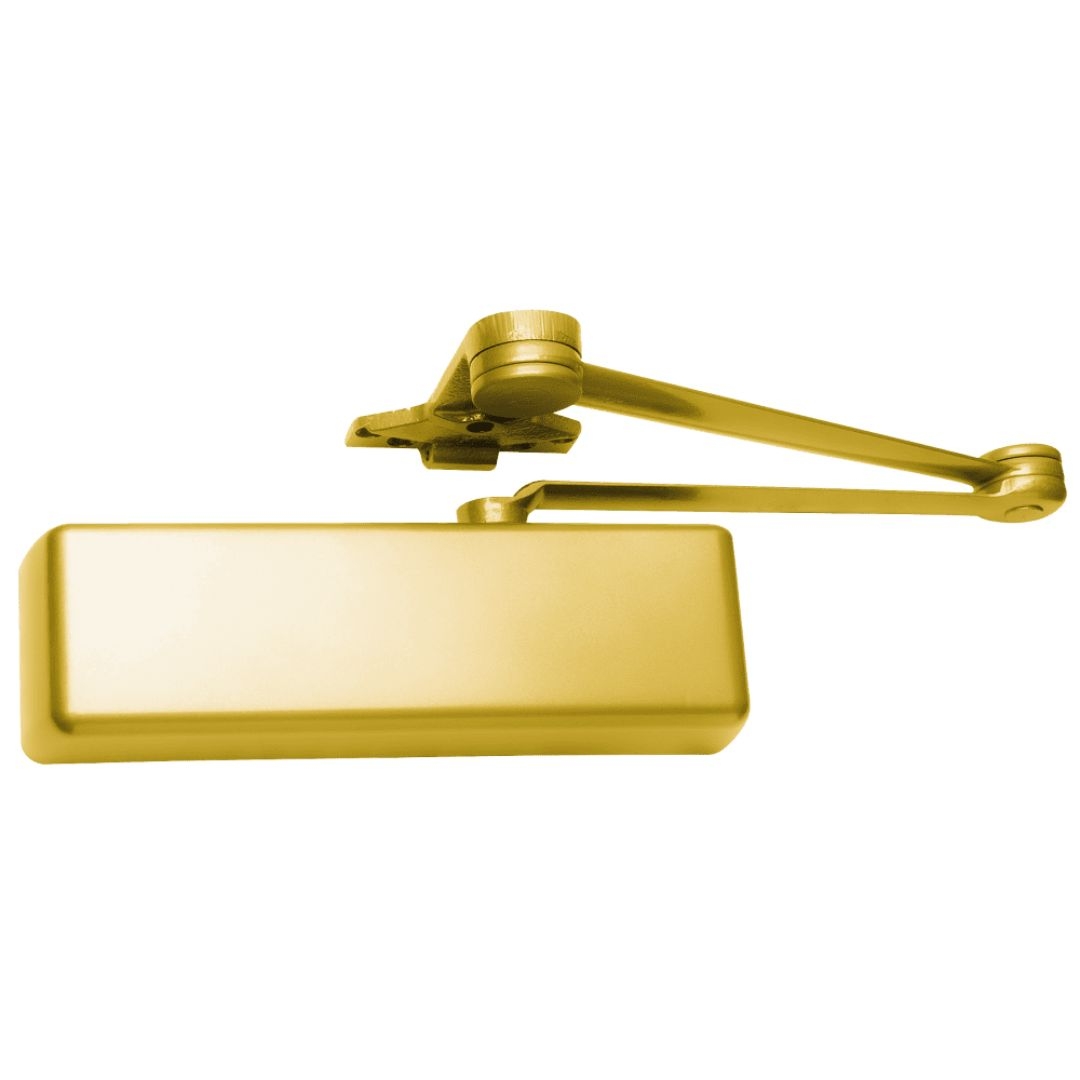

*Finishes: *ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695), LTBRZ - LIGHT BRONZE (BHMA 691), BRASS - BRASS (BHMA 696)

Model:LCN, 4111CUSH, 4111-CUSH, 4111CUSHALUM, 4111CUSHDKBRZ, 4111CUSHLTBRZ, 4111CUSHBRASS, 4111CUSHSRI, 4111CUSH-SRI, 4111CUSHSRIALUM, 4111CUSH689, 4111CUSH695, 4111CUSH691, 4111CUSH696, 4111CUSHDEL, 4111CUSHMC, 4111CUSHDELALUM, RH, LH, 4111CUSHRHALUM, 4111CUSHLHALUM, Right Hand, Left Hand, Delayed Action (DEL).
