Dormakaba Simplex 1021C-26D Pushbutton Lock - Satin Chrome - Corbin

Dormakaba *Simplex 1021C Pushbutton Lock, with Key Override,preparedfor*"Corbin Russwin" Cores

**Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Corbin Russwin Large Format IC Cores, Core not included.

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

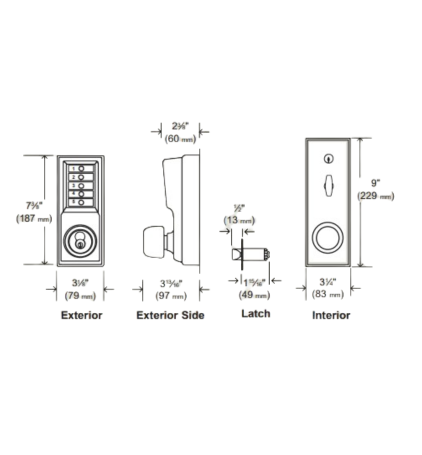

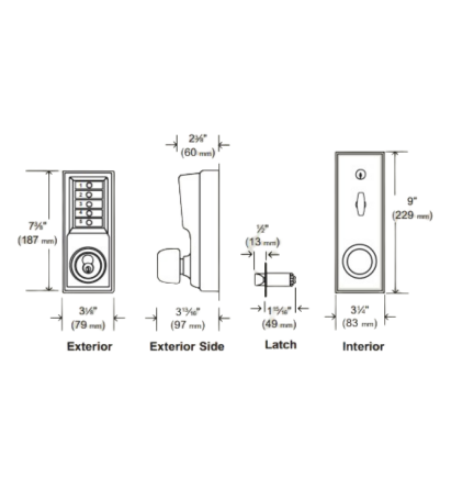

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch; 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Passage option:(optional) Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key (included with all passage feature models)

Lockout option:(optional) Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only.

Model: Dormakaba , Dormakaba Ilco, Dormakaba Access, Simplex, 1021C, 1021C26D, 1021CUS26D, 1021C-26D, 1021C-US26D, 1021C 26D, 1021C US26D, 1021 C, 1021 C26D, 1021 CUS26D, 1021 C-26D, 1021 C-US26D, 1021 C 26D, 1021 C US26D, 1021-C, 1021-C26D, 1021-CUS26D, 1021-C-26D, 1021-C 26D, 1021-C US26D, 1021C-26D-41, 626, Satin Chrome
