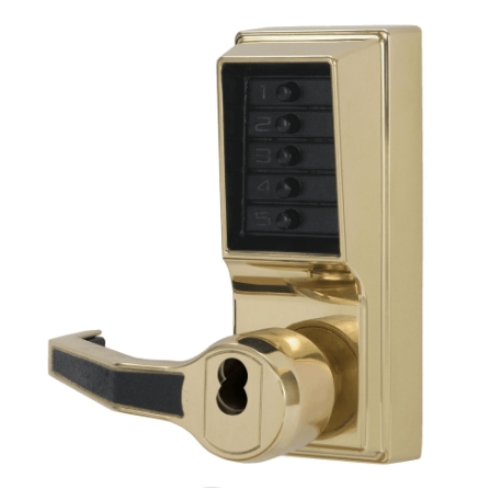

Dormakaba Simplex LL1041S-03 Pushbutton Lock W/Passage LH LHR - Schlage - Bright Brass

Dormakaba *Simplex LL1041S Pushbutton Lock, with Key Override,preparedfor*"Schlage" Core with Passage Feature

for Left Hand or Left Hand Reverse Doors[(Help Me)

**](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

**Cylindrical keyless Lever Lock, Combination Entry and Key Override. Accepts Schlage Large Format IC Core, Core not included.

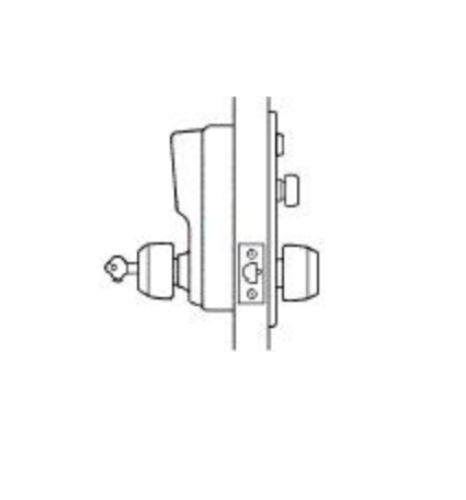

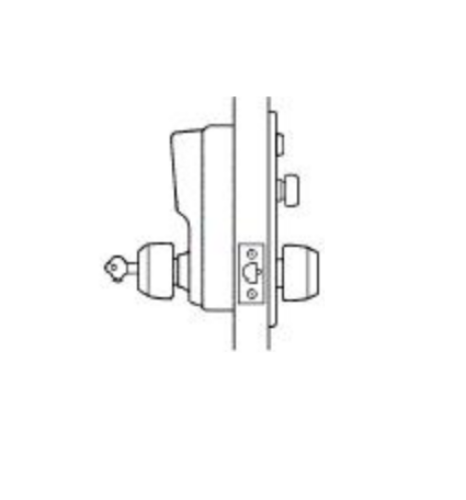

Passage:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Model: Dormakaba, Ilco, Access, Simplex, LL1041S03, LL1041S3, LL1041SUS3, LL1041S-03-41, 605, Bright Brass
