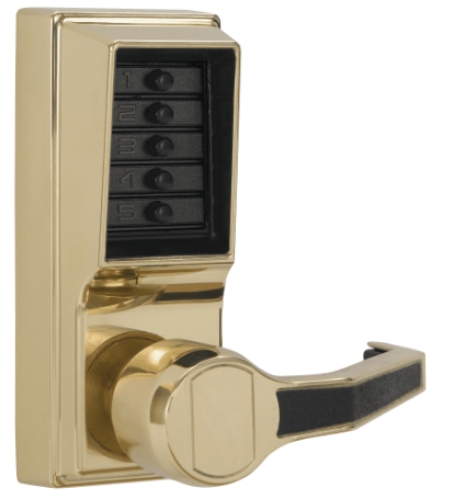

Dormakaba Simplex LR1031-03 Pushbutton Lock w/Passage Bright Brass RH RHR

Dormakaba *Simplex LR1031 Series Keyless Pushbutton Lock with Passage Feature*

for Right Hand or Right Hand Reverse Doors[(Help Me)

**](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

**Cylindrical Lever Lock , Combination Entry Only, No Key Override

Passage:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key

Features Include:

Heavy duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

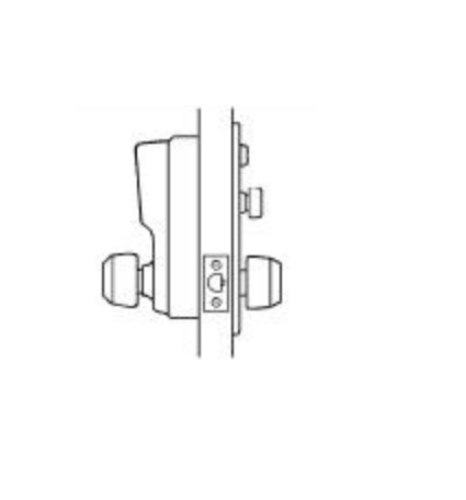

Combination Entry and Passage (model L1031)

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Model: Dormakaba, Ilco, Access, Simplex, LR103103, LR1031US3, LR1031-03-41, 605, Bright Brass
