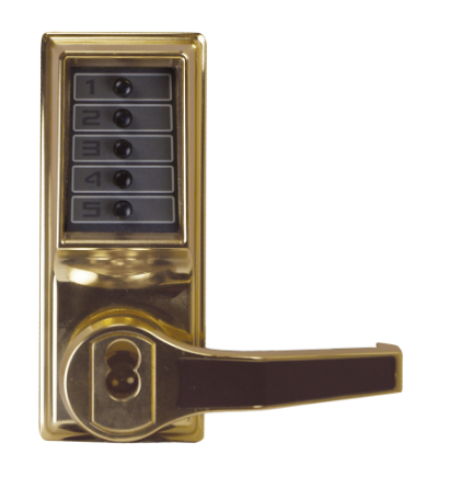

Dormakaba Simplex LR1021B-03 Pushbutton Lock W/ Key RH & RHR Bright Brass

Dormakaba Simplex LR1021B Pushbutton Lock, with Key Override "Best and Compatibles"

for Right Hand or Right Hand Reverse Doors

Cylindrical keyless Lever Lock, Combination Entry and Key Override Best and Compatibles (Best, Arrow & Falcon Small Format IC Cores)

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

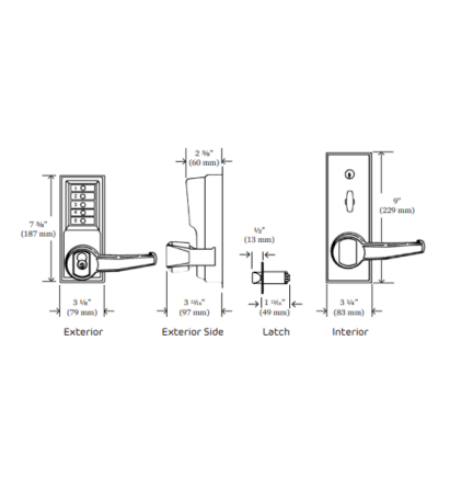

Backset: 2 3⁄4" (70 mm), 2 3⁄8" (60 mm)

Latch: 1⁄2" (13 mm) throw latch; 3⁄4" (19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model L1011)

Combination Entry and Passage (model L1031)

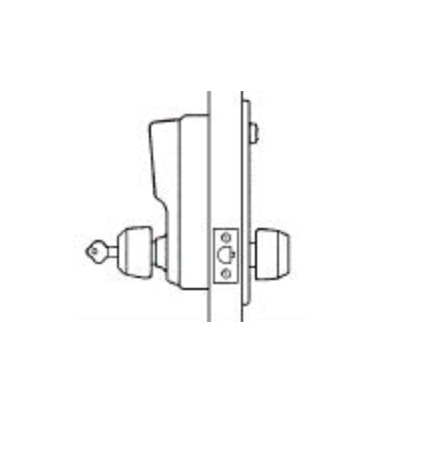

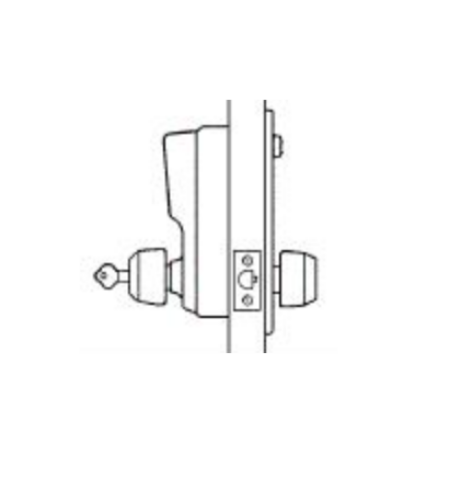

Combination Entry and Key Override (model L1021)

Combination Entry, Key Override and Passage (model L1041)

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models (optional)

Lockout option:Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only (optional)

Model: Dormakaba, Ilco, Access, Simplex, LR1021B03, LR1021B3, LR1021BUS3, LR1021B-03-41, 605, Bright Brass
