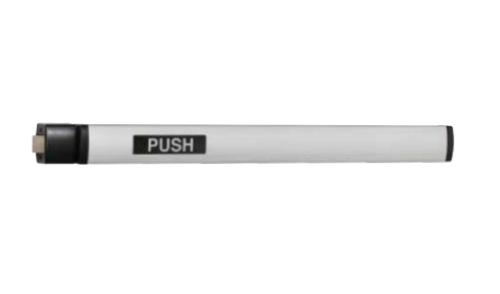

Falcon 1593-HB-OP 36, US28 Rim Touchbar Exit Device, 36 In., Hold Back Optional Pull, with 149CA-HB and Rim Cylinder

Falcon 1593-HB-OP 36IN US28 Rim Touchbar Exit Device, 36 In., Hold Back Optional Pull, with 149CA-HB and Rim Cylinder, Satin Aluminum Clear Anodized

HB-OP- Hold back cylinder only key retracts latch and holds latch back, no pull For 36" x 84", Aluminum or Hollow Metal Doors. RL Bottom Latch furnished standard.

The 1490 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.

Length:36"

Minimum door size:25 3 ⁄4"

Strikes:PB48 top.

Dogging feature:Quarter turn hex dogging standard. No threaded parts to wear out.

Doors:1 3⁄4" thick metal doors

Projections:2 3⁄4" maximum, 2" when dogged. Pushbar height is 3".

Stile:1 3⁄4" minimum.

Fasteners:All mounting screws are concealed. Uses all machine screws for device and latch.

End caps:Durable zinc die cast, powder coated

Vertical rods:7' standard, extension rods available up to 7' 10".

ANSI:Certified ANSI A156.3 2001 Grade 1 standards.

High security:1490 High Security devices are used for hurricane rated door openings. Consult door manufacturer’s listing.

**

Falcon 1590HBOP, 1590 HB OP, 1590-HB-OP, US28, DC13
