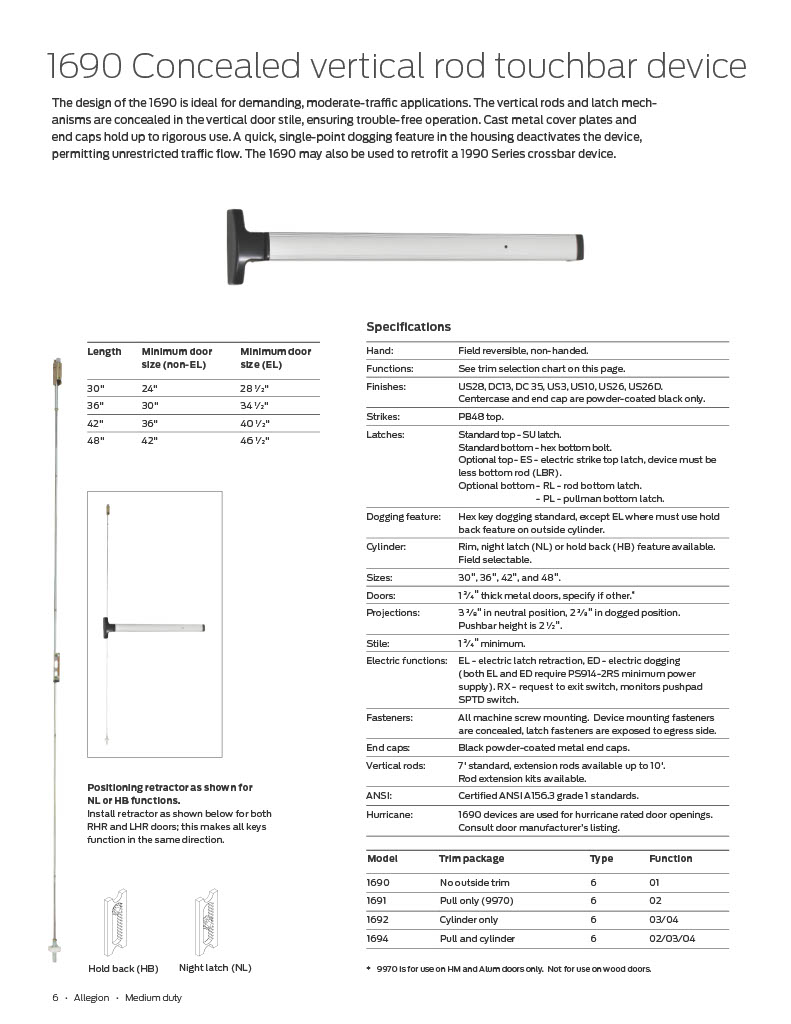

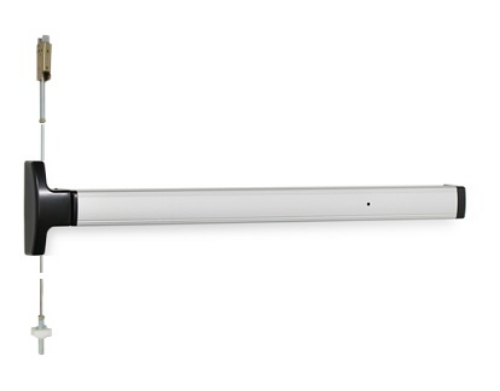

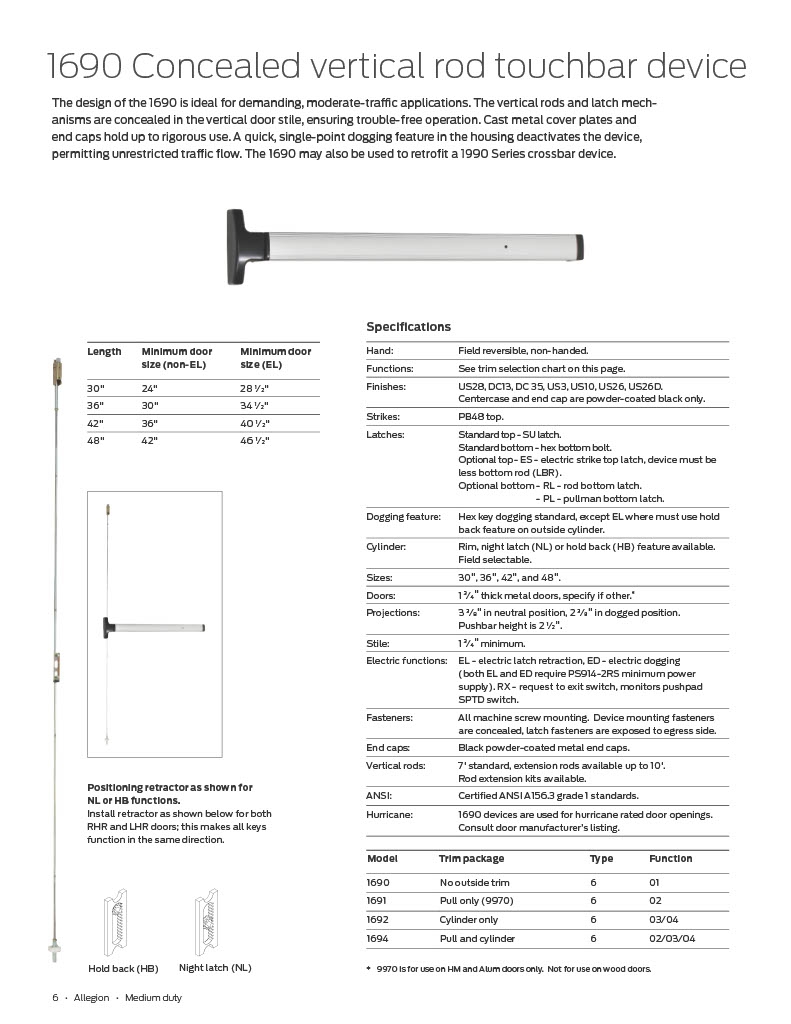

Falcon 1690EO Concealed Vertical Rod Touchbar Device

Falcon 1690EO Concealed Vertical Rod Touchbar Device(Dor-O-Matic)

Length: 36"Minimum door size:  30"

Length: 42"Minimum door size:  36"

Hand:Field reversible, non-handed

Strikes:PB48 top.

Latches:Standard top - SU latch. Standard bottom - hex bottom bolt.

Dogging feature:Hex key dogging standard, except EL where must use hold back feature on outside cylinder.

Doors:1 3 ⁄4" thick metal doors, specify if other.

Projections:3 3 ⁄8" in neutral position, 2 3 ⁄8" in dogged position. Pushbar height is 2 1 ⁄2".**

Stile:1 3 ⁄4" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black powder-coated metal end caps.

Vertical rods:7' standard, extension rods available up to 10'. Rod extension kits available.

ANSI:Certified ANSI A156.3 grade 1 standards.

High security:1690 High security devices are used for hurricane rated door openings. Consult door manufacturer’s listing.

**

**

**

 Model: 169048US28Falcon, 1690-EO-48-US28Falcon, 1690EO48US28Falcon, 1690 EO 48  US28 Falcon,Falcon1690, Falcon1690-EO, Falcon1690EO, Falcon1690 EO, 1690 Falcon, 1690-EO Falcon, 1690EO Falcon, 1690 EO Falcon, 1690Falcon, 1690-EOFalcon, 1690EOFalcon, 1690 EOFalcon, 1690-EO-36, 1690EO36, 1690 EO 36, Falcon 1690, Falcon 1690-EO-36, Falcon 1690EO36, Falcon 1690 EO 36, Falcon169036, Falcon1690-EO-36, Falcon1690EO36, Falcon1690 EO 36, 1690 Falcon, 1690-EO-36 Falcon, Falcon 1690EO36, Falcon 1690 EO 36, 169036Falcon, 1690-EO-36Falcon, 1690EO36Falcon, 1690 EO 36 Falcon,   .1690 EO-36-DC13, 1690EO36DC13, 1690 EO 36 DC13, Falcon 1690, Falcon 1690-EO-36-DC13, Falcon 1690EO36DC13, Falcon 1690 EO 36 DC13, Falcon169036DC13, Falcon1690-EO-36-DC13, Falcon1690EO36DC13, Falcon1690 EO 36 DC13, 1690 Falcon, 1690-EO-36-DC13 Falcon, Falcon 1690EO36DC13, Falcon 1690 EO 36 DC13, 169036DC13Falcon, 1690-EO-36-DC13Falcon, 1690EO36DC13Falcon, 1690 EO 36 DC13 Falcon, 1690-EO-48, 1690EO48, 1690 EO 48, Falcon 1690, Falcon 1690-EO-48, Falcon 1690EO48, Falcon 1690 EO 48, Falcon169048, Falcon1690-EO-48, Falcon1690EO48, Falcon1690 EO 48, 1690 Falcon, 1690-EO-48 Falcon, Falcon 1690EO48, Falcon 1690 EO 48, 169048Falcon, 1690-EO-48Falcon, 1690EO48Falcon, 1690 EO 48 Falcon,   .1690-EO-48-DC13, 1690EO48DC13, 1690 EO 48 DC13, Falcon 1690, Falcon 1690-EO-48-DC13, Falcon 1690EO48DC13, Falcon 1690 EO 48 DC13, Falcon169048DC13, Falcon1690-EO-48-DC13, Falcon1690EO48DC13, Falcon1690 EO 48 DC13, 1690 Falcon, 1690-EO-48-DC13 Falcon, Falcon 1690EO48DC13, Falcon 1690 EO 48 DC13, 169048DC13Falcon, 1690-EO-48-DC13Falcon, 1690EO48DC13Falcon, 1690 EO 48  DC13 Falcon,
