Falcon 1792NL-OP/HB-OP Night Latch Rim touchbar device

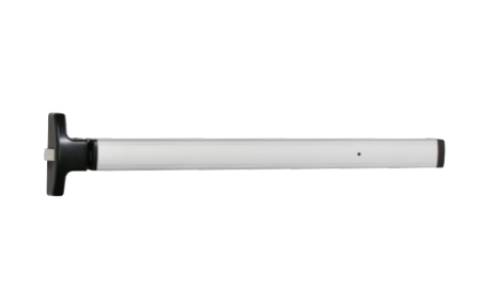

Falcon 1792NL-OP/HB-OP Rim touchbar device

HB-OP- Hold back, cylinder only: key retracts latch and holds latch back, no pull

NL-OP- Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull

Rim cylinder supplied standard with NL and HB options is C keyway.

Length:  36" Minimum door size: 30"

Length:  42"  Minimum door size: 36"

Hand:Non handed.

Strikes:TD35 strike supplied standard, see page 11 for other rim strikes available.

Latchbolt:1" thickness, 3 ⁄4" throw.

Dogging feature:Hex key dogging standard, except EL where must use hold back feature on outside cylinder.

Doors:1 3 ⁄4" thick metal or wood, specify if wood door.

Projections:3 3 ⁄8" in neutral position, 2 3 ⁄8" in dogged position. Pushbar height is 2 1 ⁄2".

Stile:1 3 ⁄4" minimum

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black powder-coated metal end caps.

ANSI:Carry UL label and approved for life safety. Certified ANSI A156.3 grade 1 standards.

**

**

**
