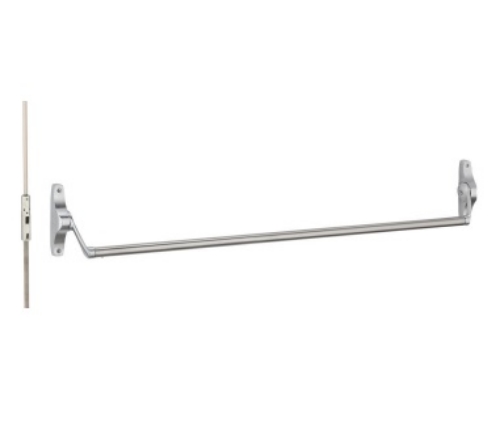

Von Duprin 5547WDC-EO Concealed Vertical Rod Device

Von Duprin 5547WDC-EO Concealed Vertical Rod Device, For 4' Doors  - Exit Only

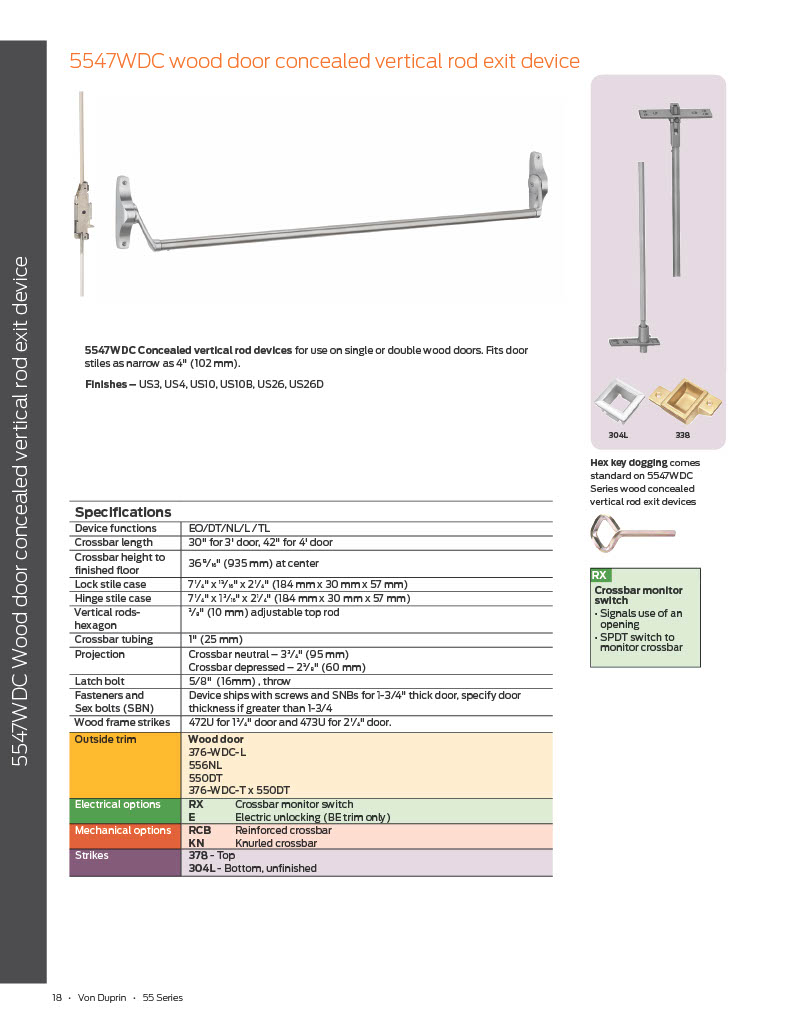

5547WDC concealed vertical rod devices for use on single or doublewood doors. Fits door stiles as narrow as 4" (102mm).

Crossbar length:42" (1067mm), Field sizeable.

Door height:if other than 8' (2438mm), extension rods must be ordered.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome

.

Strike:Device is furnished with 338 and 304L Strikes.

Dogging Feature:Hex key dogging standard.

Fasteners:Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors.

Latch Bolt:1/2" (13mm) (MD) or 5/8" (16mm) WD throw latch bolt.

Crossbar height to finished floor 36-13/16" (1011mm) at center.

All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.

Model:Von Duprin 5547WDC, 5547WDCEO, US10B, US26D
