Falcon 25C-EO Concealed Vertical Rod Exit Device, Exit Only

Falcon 25C-EO Concealed Vertical Rod Exit Device, Exit Only

Product Details

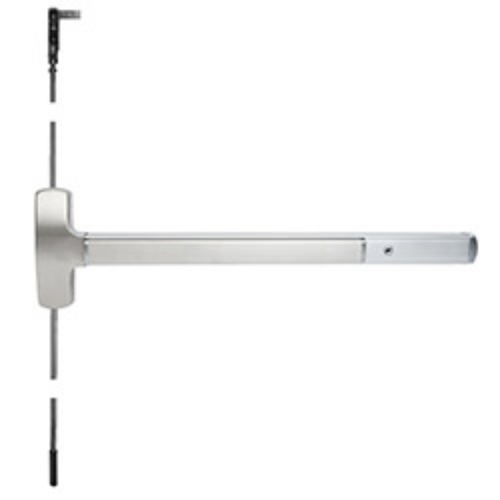

Falcon 25C-EO Concealed Vertical Rod Exit Device, Exit Only

25 Series Exit Device:

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Specifications:

Hand:Field reversible.

Finishes:US3 (605); US4 (606); US10 (612); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN (710)

Strikes:4188 mortised top, 2130 bottom standard, 4155.

Latchbolt:Top stainless steel 3⁄4" throw. Bottom bolt 1⁄2" throw.

Deadlocking latchbolt:Standard in top latch.

Latch retention hold:Standard in top latch.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify 'CD' prefix. Uses 1 1 ⁄8" long mortise cylinderdogging with standard cam.

Doors:1 3⁄4" thick wood or metal. Specify thickness if other than 1 3⁄4".

Projection:2 3⁄4" maximum, 2" dogged.

Stile:3 1⁄2" minimum (6 1⁄2" minimum on wood doors).

Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.

Fasteners:All mounting screws are concealed, sheet metal screws standard, machine screws available, specify AMS.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (#10-24) SNB. For devices with trim, specify 2 - 425 (#10-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

25-C-LBR:Less bottom rod concealed vertical device.

Vertical rods:Furnished to length based on 40 1⁄4" horizontal CL to finished floor and a 7'0" door. Variations from these standards must be specified when ordering.

Patented centerslide:For ease of adjustment.

Shim kits:Consult factory.

Falcon 25CO, 25-C-EO, 25 C EO, 25C EO, 25C-EO, 26D 28

Falcon 25C-EO Concealed Vertical Rod Exit Device, Exit Only

Name: Falcon 25C-EO Concealed Vertical Rod Exit Device, Exit Only
SKU: 25CEO
Price: 974.67 USD
Availability: InStock

SKU: 25CEO

In Stock

Chat

$974.67

$1,839.00

You saved $864.33

About this item

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 25-C Series concealed vertical rod device offers great value, clean styling and the security benefits of two-point latching. Falcon's patented center slide mechanism allows easy rod adjustment in the field

Resources

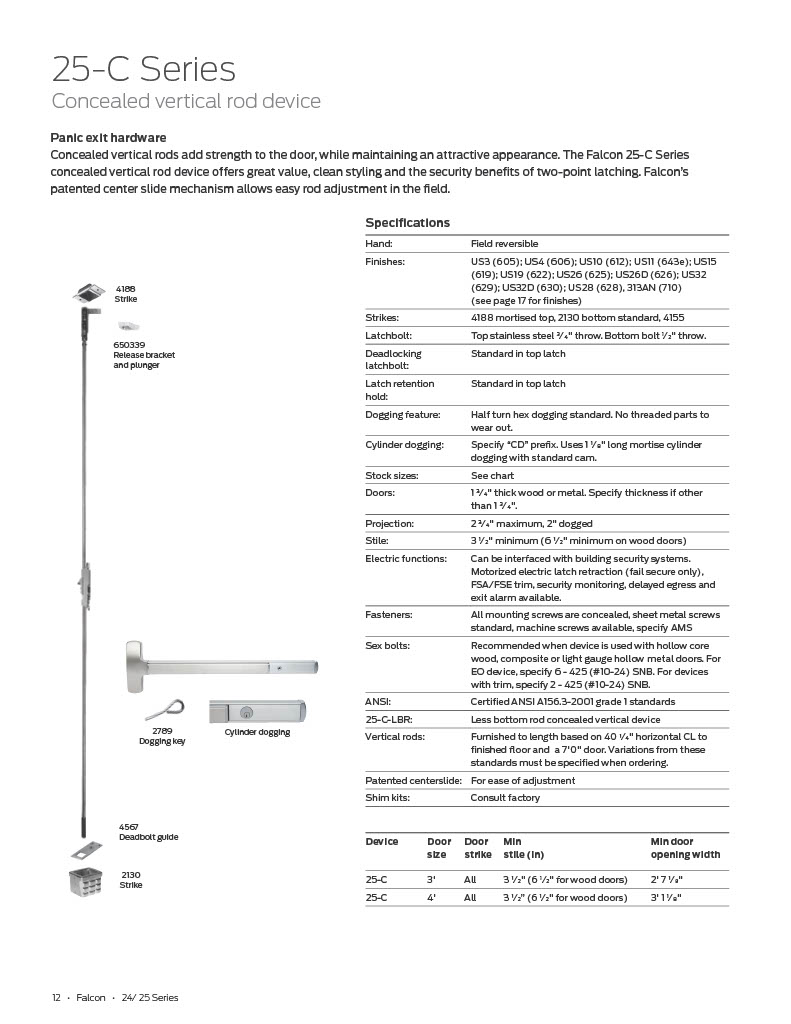

24/25 Series Product Catalog
