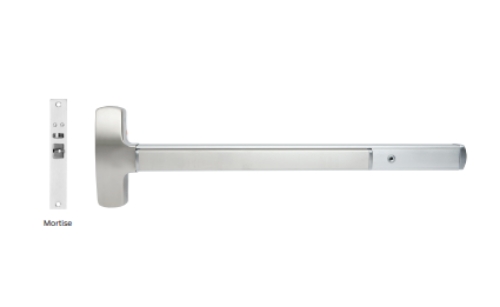

Falcon 25M-EO Mortise Exit Device, Exit Only

Falcon 25M-EO Mortise*Exit Device, Exit Only*

25 Series Exit Device:

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

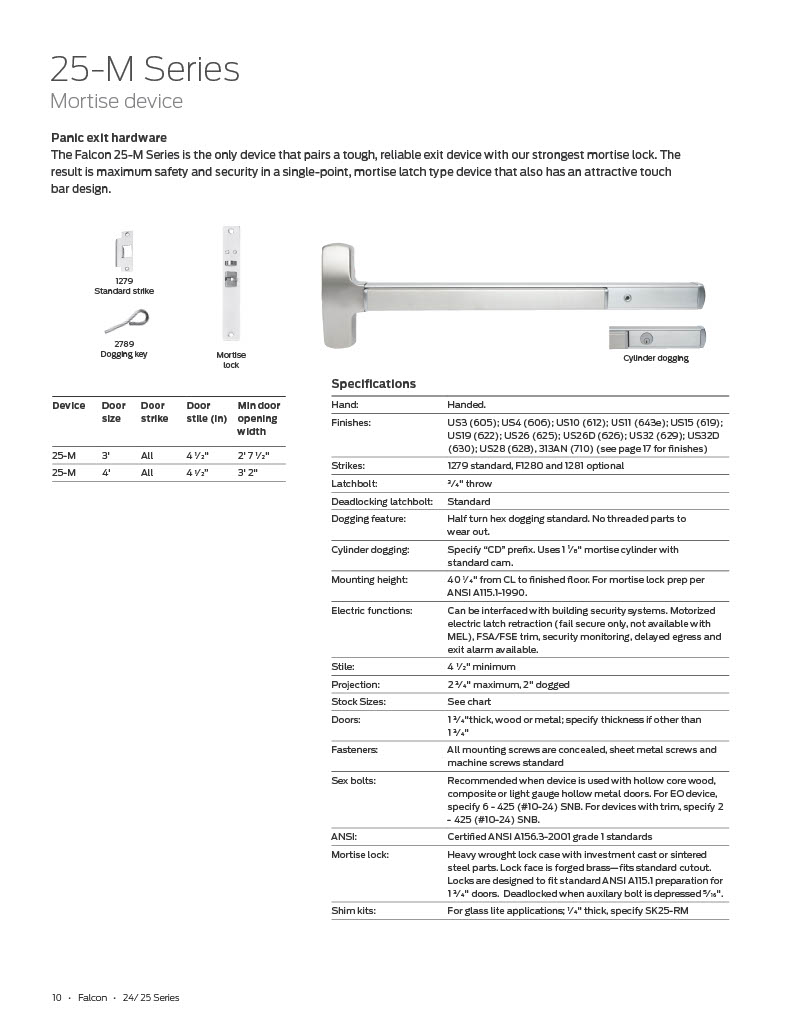

Specifications:

Mortise lock:Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1 3⁄4" doors. Deadlocked when auxilary bolt is depressed 5⁄16".

Hand:Handed.

Finishes:US3 (605); US4 (606); US10 (612); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN (710).

Strikes:1279 standard, F1280 and 1281 optional.

Latchbolt:3⁄4" throw

Deadlocking latchbolt:Standard.

Latch retention hold:Standard in top latch.

Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.

Cylinder dogging:Specify 'CD' prefix. Uses 1 1 ⁄8" long mortise cylinderdogging with standard cam.

Mounting height:40 1 ⁄4" from CL to finished floor. For mortise lock prep per ANSI A115.1-1990.

Projection:2 3⁄4" maximum, 2" dogged.

Stile:4 1 ⁄2" minimum.

Doors:1 3⁄4"thick, wood or metal. Specify thickness if other than 1 3⁄4".

Electric functions:  Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only, not available with MEL), FSA/FSE trim, security monitoring, delayed egress and exit alarm available

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 6 - 425 (#10-24) SNB. For devices with trim, specify 2 - 425 (#10-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Shim kits:For glass lite applications; 1 ⁄4" thick, specify SK25-RM.
