Product Details

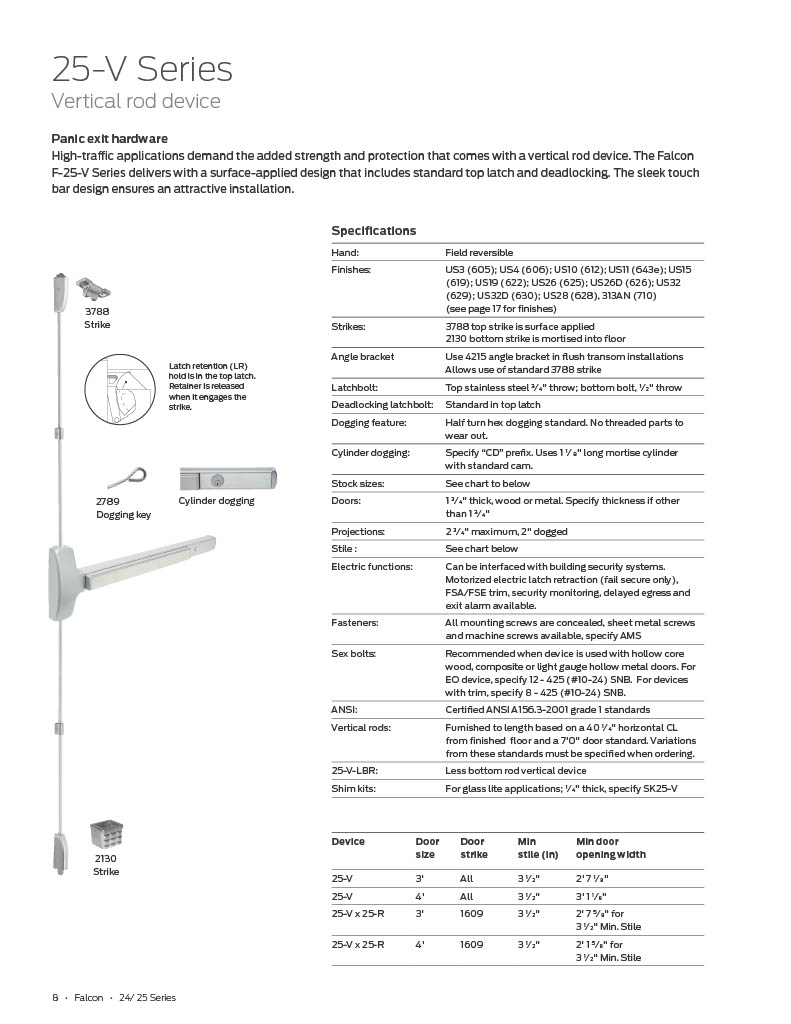

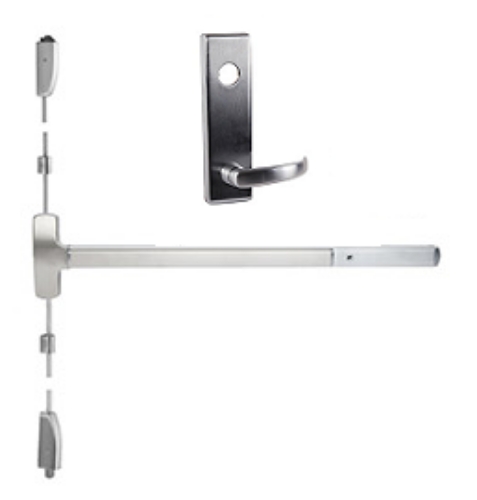

Falcon 25V-L-Q Vertical Rod Exit Device, With 510L Trim, Quantum Lever

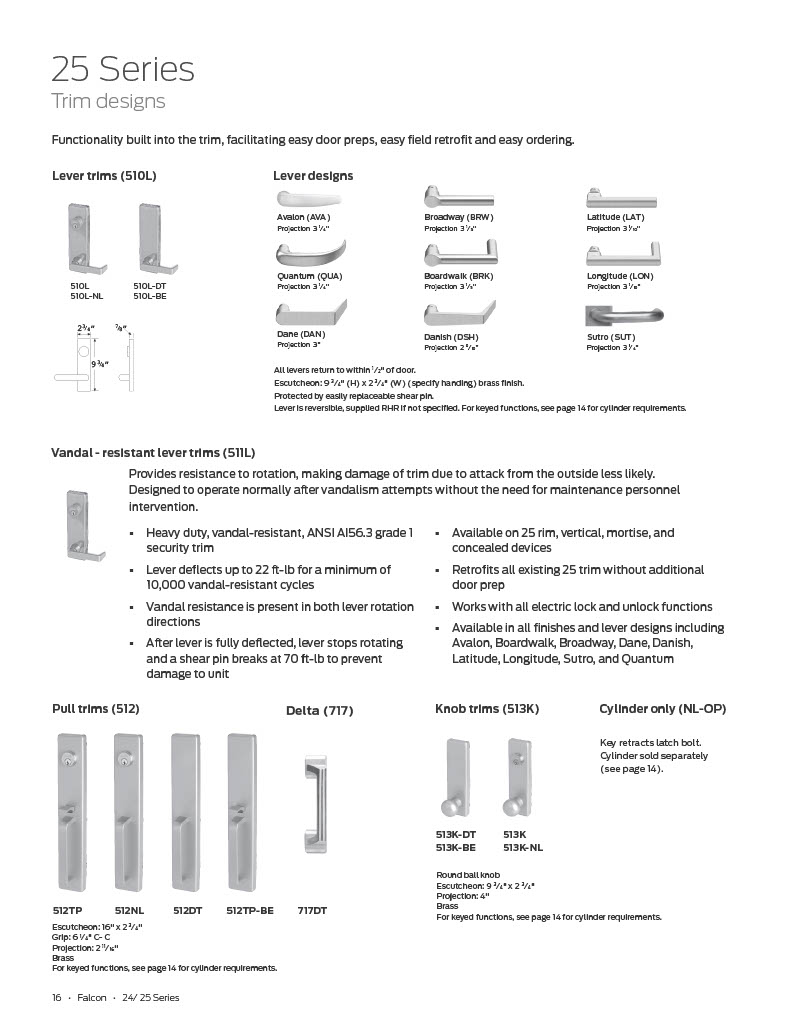

Trim Type:510L Classroom Lever.
- Maximum flexibility in a variety of applications
- Wide range of features and options
- Patent pending deadlocking technology
- Frequent traffic
- Offices, churches, hospitality, retail, education, healthcare
- Interior, exterior, new construction, retro-fit
- 10-year warranty
Hand:Field reversible.
Strikes:3788 top strike is surface applied. 2130 bottom strike is mortised into floor.
Angle bracketUse 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
Latchbolt:Top stainless steel 3⁄4" throw. Bottom bolt, 1 ⁄2" throw.
Deadlocking latchbolt: Standard in top latch.
Dogging feature:Half turn hex dogging standard. No threaded parts to wear out.
Cylinder dogging:Specify “CD" prefix. Uses 1 1 ⁄ 8" long mortise cylinder with standard cam.
Doors:1 3⁄4" thick, wood or metal. Specify thickness if other than 1 3⁄4".
Projections:2 3⁄4" maximum, 2" dogged.
Fasteners:All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 SNB. For devices with trim, specify 8 - 425 SNB.
ANSI:Certified ANSI A156.3-2001 grade 1 standards.
Vertical rods:Furnished to length based on a 40 1 ⁄4" horizontal CL from finished floor and a 7'0" door standard.
25-V-LBR:Less bottom rod vertical device
Extension Rods:For door heights over 7'0" up to 8'0", 12" extension rods Are Needed
