SFIC 6-Pin Combinated Core, 6-Pin A Keyway, 2 Operating Keys, No Control, Satin Brass Finish,Finish, Non-Handed

About this item

SFIC 6-Pin Core, 6-Pin A Keyway, 0 Bit if not Specified, 2 Blank Keys, Satin Brass

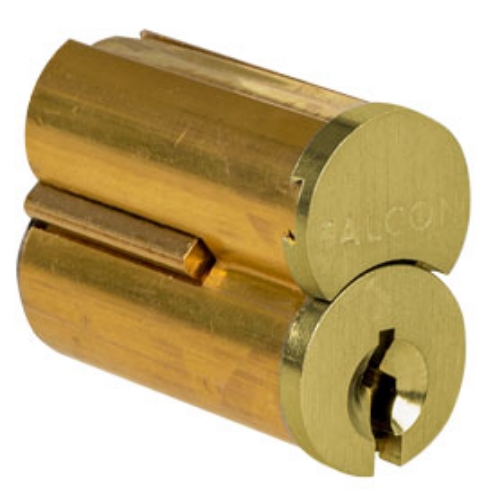

The Falcon C606 A 606 is a 6-pin combinated Small Format Interchangeable Core (SFIC) in the A keyway, finished in 606 Satin Brass. It ships pre-combinated with two change keys and is ready to install into any SFIC-compatible lock housing without additional setup by a locksmith. The C606 is a Falcon Allegion-branded core that directly cross-functions with BEST and Arrow SFIC products, which makes it the correct order for facilities running mixed hardware across those three brands on a unified key system. American Locksets is an authorized Allegion Falcon dealer stocking the C606 A 606 with same-day shipping and free shipping on orders over $300.

Falcon C606 SFIC Core: What Makes It a Combinated Core

A combinated SFIC core is one that has been pinned and keyed at the factory to a specific bitting. The C606 A 606 ships with bitting already set and two change keys cut to that bitting included. The core installs directly into the housing and operates immediately without any field pinning. This is the standard core format for facilities ordering individual cores to add to an existing key system or to a new installation where each door gets its own change key bitting.

Uncombinated cores ship as blank-pinned and require a locksmith or key systems technician to combinate in the field before installation. When ordering the C606, confirm whether you need combinated (ready-to-use, keyed) or uncombinated (field-keyed) before ordering.

Falcon C606 A 606 Specifications

• SKU: C606A606

• Core Type: Small Format Interchangeable Core (SFIC)

• Pin Count: 6-pin

• Keyway: A keyway (Arrow "A" equivalent). The A keyway is the standard for all Falcon SFIC cylinders

• Keying: Combinated. Pre-keyed at factory. Includes 2 change keys

• Control Key: No control key included. Control key must be specified and ordered separately

• Keying System: A2 System standard (depths 0-9). A4 (depths 0-5) available as special

• Finish: 606 Satin Brass

• Handing: Non-handed

• Logo: Falcon logo on keys standard. Non-logo keys available by specification

SFIC Cross-Compatibility: Falcon, BEST, and Arrow

This is the specification detail that matters most for facilities managers making core procurement decisions. Falcon SFIC cores are cross-compatible with BEST and Arrow SFIC products. A Falcon C606 core installs in a BEST lock housing. A BEST IC core installs in a Falcon lock housing. This physical interchangeability extends across most functions and housing types in the SFIC format, which means a facility that has a mix of Falcon, BEST, and Arrow hardware can operate the entire property on a single key system using cores from any of these three manufacturers.

When ordering Falcon cores for an existing BEST or Arrow key system, provide a copy of the existing bitting list with the order so Falcon can combine the cores into the correct existing master key hierarchy. Attempting to order new cores into an existing master key system without submitting the bitting list will result in cores that do not operate within the system structure.

Ordering the Correct C606 Variant

The C606 core is available in multiple keyways and two standard finishes. The A keyway is the default for all Falcon SFIC cylinders and is the correct choice for new installations and for systems where the A keyway is already established. Other open keyways available across the Falcon SFIC line include B, C, D, DD, E, F, G, H, J, K, L, M, N, Q, R, TB, and TD. Confirm the keyway before ordering if you are adding cores to an existing system.

Available finishes are 606 Satin Brass and 626 Satin Chrome. Specify finish in order.

Browse all Falcon IC Cores, the complete IC Cores catalog, and all Cylinders/Cores/Keys at American Locksets.
