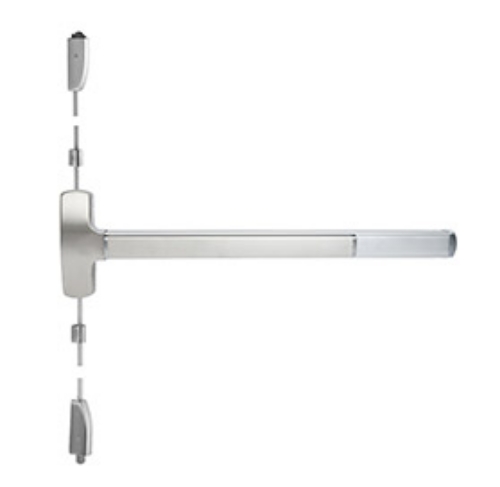

Falcon F25V-EO Fire Rated Surface Vertical Rod Exit Device

Falcon F-25-V-EO Fire Rated Surface Vertical Rod Exit Exit Device

- Maximum flexibility in a variety of applications

- Wide range of features and options

- Patent pending deadlocking technology

- Frequent traffic

- Offices, churches, hospitality, retail, education, healthcare

- Interior, exterior, new construction, retro-fit

- 10-year warranty

Hand:Non-handed

UL:“A" label (3 hr.); 4'0" x 8'0"; 8'0" x 8'0" with F-4023 mullion. “B" label (1 1 ⁄2 hr.); 8'0" x 8'0"; with KRF4023.

Strikes:299F strike standard. 499F standard for pairs with mullion.

Latchbolt:Stainless steel, 3⁄4" throw.

Deadlocking latchbolt:Standard.

Doors:1 3⁄4" thick, wood or metal.

Projections:2 3⁄4" maximum,

Mounting height:40 1 ⁄4" from CL to finished floor.

Fasteners:All mounting screws are concealed, sheet metal screws and machine screws standard.

Sex bolts:Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.

ANSI:Certified ANSI A156.3-2001 grade 1 standards.

Center case & working parts:Center case is heavy wrought and sintered metal parts.

Model:Falcon F25R-EO, F25-R-EO, F25REO, F25 R EO , F25 R EO
