Falcon MA18 Grade 1 Double Dummy Mortise Trim

Falcon MA18 Double Dummy Mortise Trim MA Series Lock Features

Door thickness: Standard accommodates thickness of 1-3/8 to 2-1/2".

Case: Cold formed steel, zinc dichromate plated, .090 thick.

Hubs: Hardened steel.

Handing: Right hand is standard; left hand optional. Reversible in the field.

Cylinders: Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Faceplates: (Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

UL: 3 hour A label.

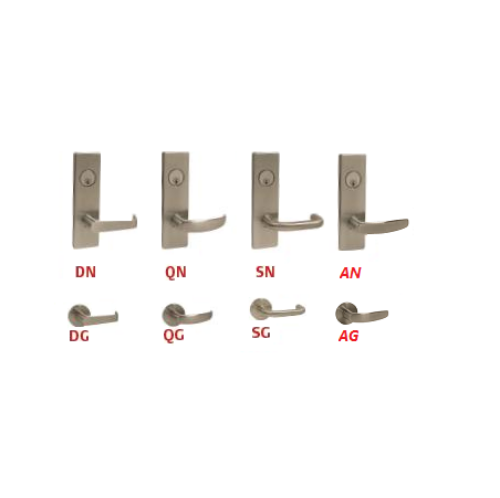

Model: Falcon MA18, DG, Dane-Gala, QG, -Quantum-Gala, SG, Sutro-Gala, DN, Dane-Napa, QN, -Quantum-Napa, SN, Sutro-Napa, HG, Hana-Gala, HN, Hana-Napa, 626, Satin Chrome, 613, Oil Rubbed Bronze, 630, Satin Stainless Steel, MA18DG, MA18QG, MA18SG, MA18HG, MA18DN, MA18QN, MA18SN, MA18HN, MA18DG626, MA18DG613, MA18DG630 ,MA18QG626, MA18QG613, MA18QG630, MA18SG626, MA18SG613, MA18SG630, MA18DN626, MA18QN626, MA18SN626, MA18HG626, MA18HN626
