Product Details

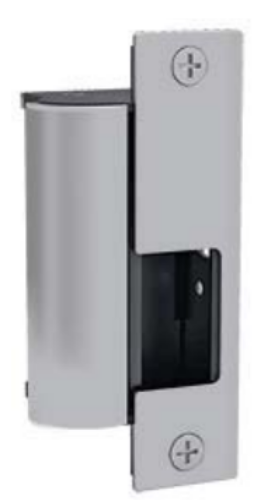

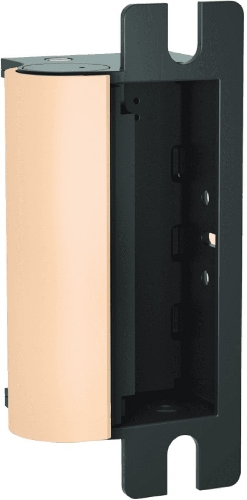

Hes 1006F-612 Electric Strike - Fail Safe - Satin Bronze

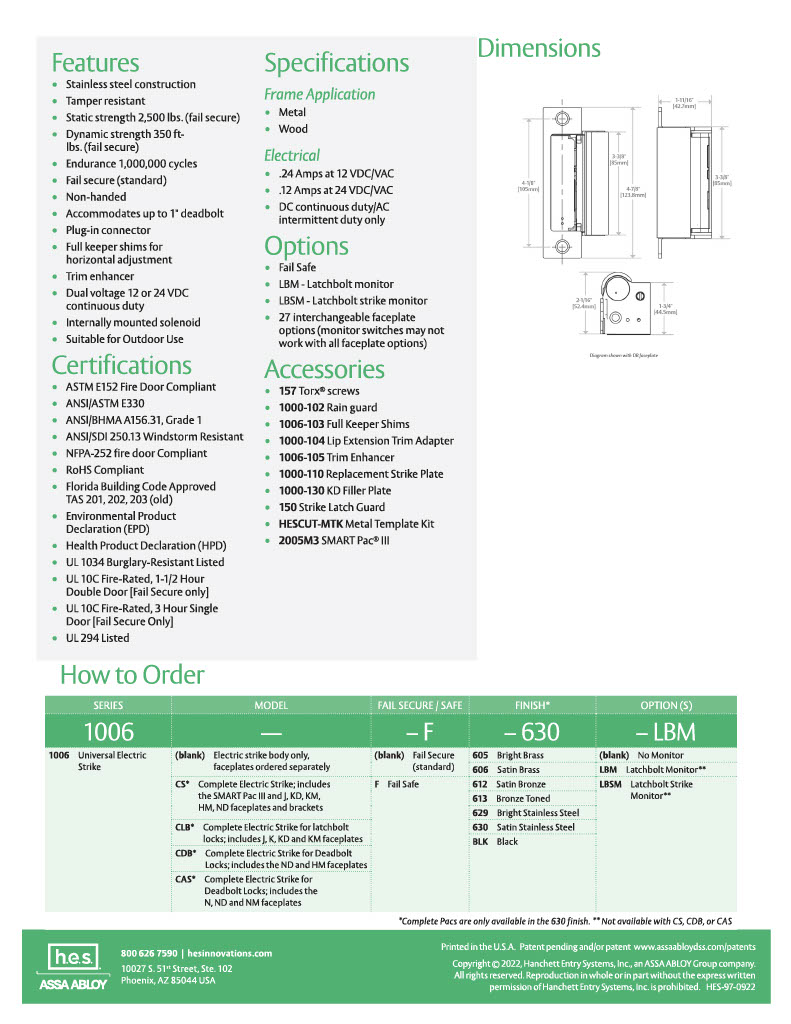

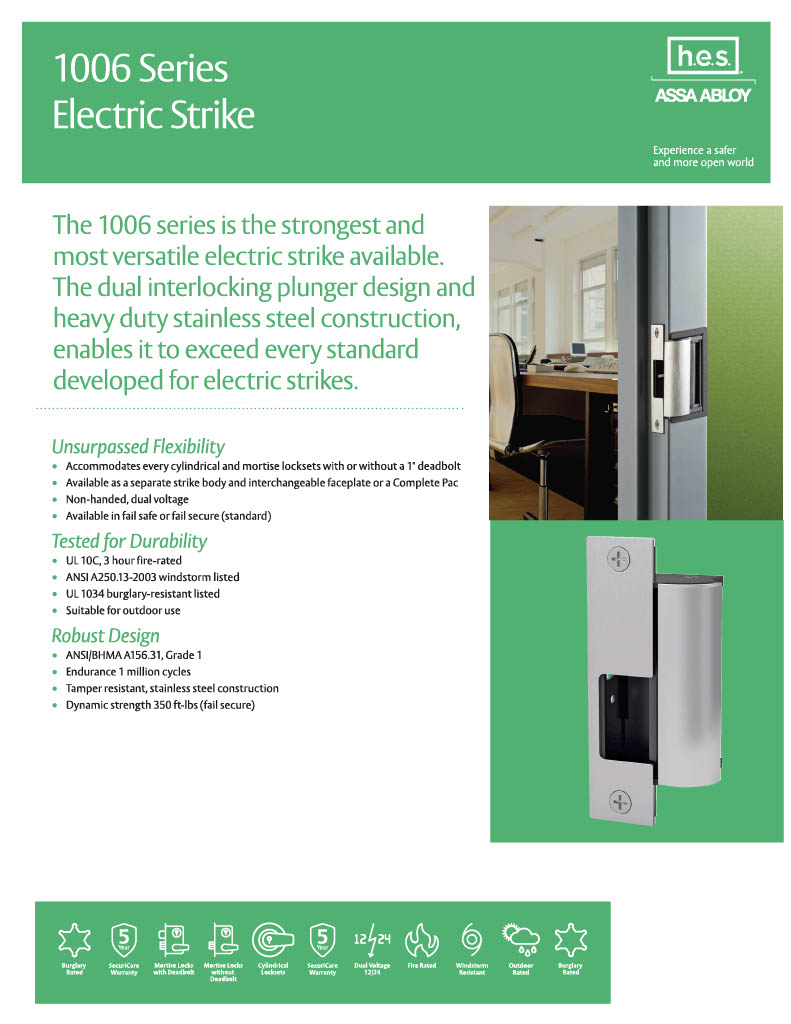

Features:The 1006 series is the strongest and most versatile electric strike available.
The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.
With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Stainless steel construction Tamper resistant Endurance 1,000,000 cycles Fail Safe Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warrantyFrame Application:
- Metal
- Wood
Electrical:
- .45 Amps at 12VDC continuous duty
- .25 Amps at24VDC continuous duty
Finish:612 - Satin Bronze
Optional Features:LBM Latchbolt monitor - LBSM Latchbolt strike monitor
Faceplate Options
E Option
For use with: Corbin Russwin Security Bolt, Weiserbolt and normally extended 1" tubular deadbolts
R Option
For use with: Adams Rite style hookbolt up to 1" throw
Z Option
For use with: Unit and Mono lock.
J-2 Option
For use with: All cylindrical locks with up to a 3/4" latchbolt.
KM-2 Option
For use with: Mortise locksets with a normally extended 1" deadbolt.
J Option
For use with: Cylindrical locksets with up to 3/4" throw and all locksets with center-lined bolts. Compatible locksets: All brands of cylindrical latchbolts
KD Option
For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)
KM Option
For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
AD Option
For use with: Mortise locksets with a normally extended 1" deadbolt. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
AM Option
For use with: Mortise locksets with a normally extended 1" deadbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HM Option
For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HTD Option
For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
ND Option
For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
NM Option
For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
T Option
For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage
TD Option
For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
Model:HES, 1006F612, 1006F612LB, 1006F612LBSM, 1006FJ612,1006FDB612, 1006FTD612, 1006FT612, 1006FNM612, 1006FND612, 1006FHTD612, 1006FHM612, 1006FAD612, 1006FKM612, 1006FKD612, 1006FDB2612, 1006FKM2612, 1006FJ2612, 1006FR612, 1006FZ612, 1006FE612, 1006FLB612, Electric Strike
