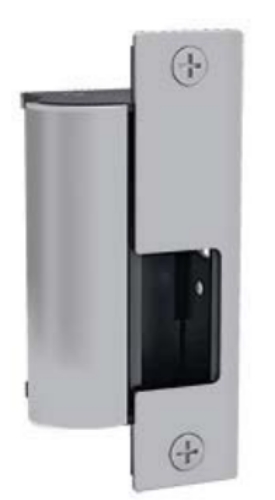

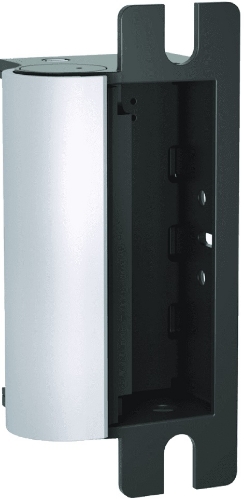

Hes 1006-630 Electric Strike - Fail secure (standard) - Satin Stainless Steel

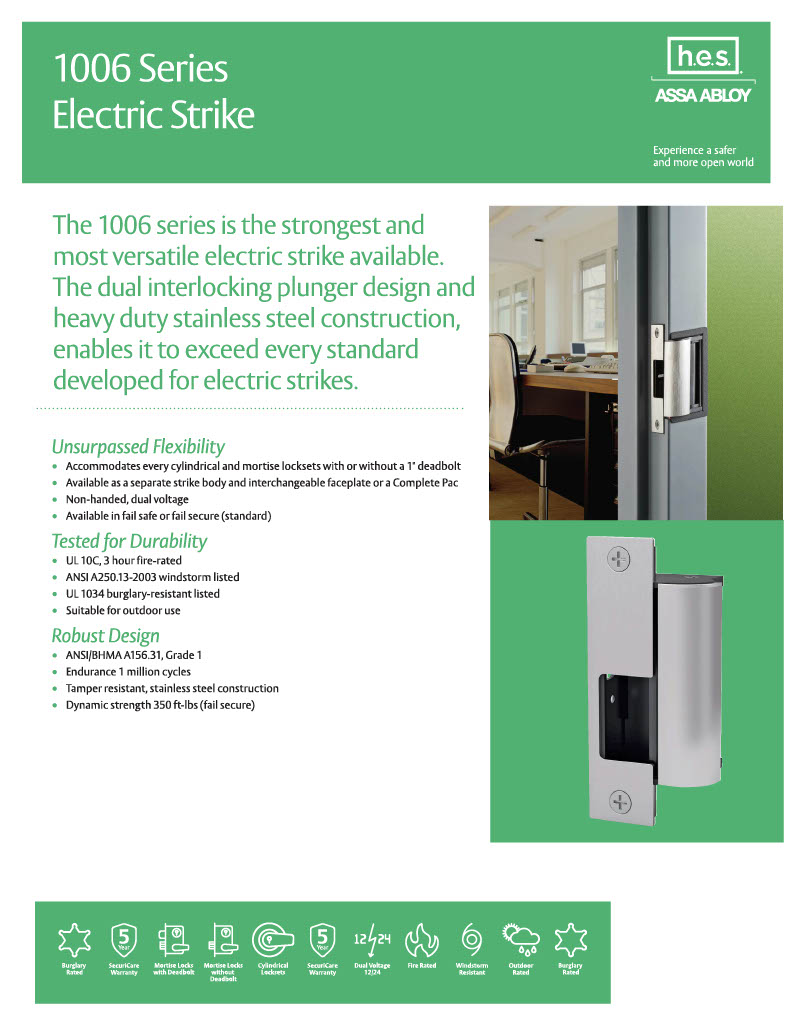

Features:The 1006 series is the strongest and most versatile electric strike available.
The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.
With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

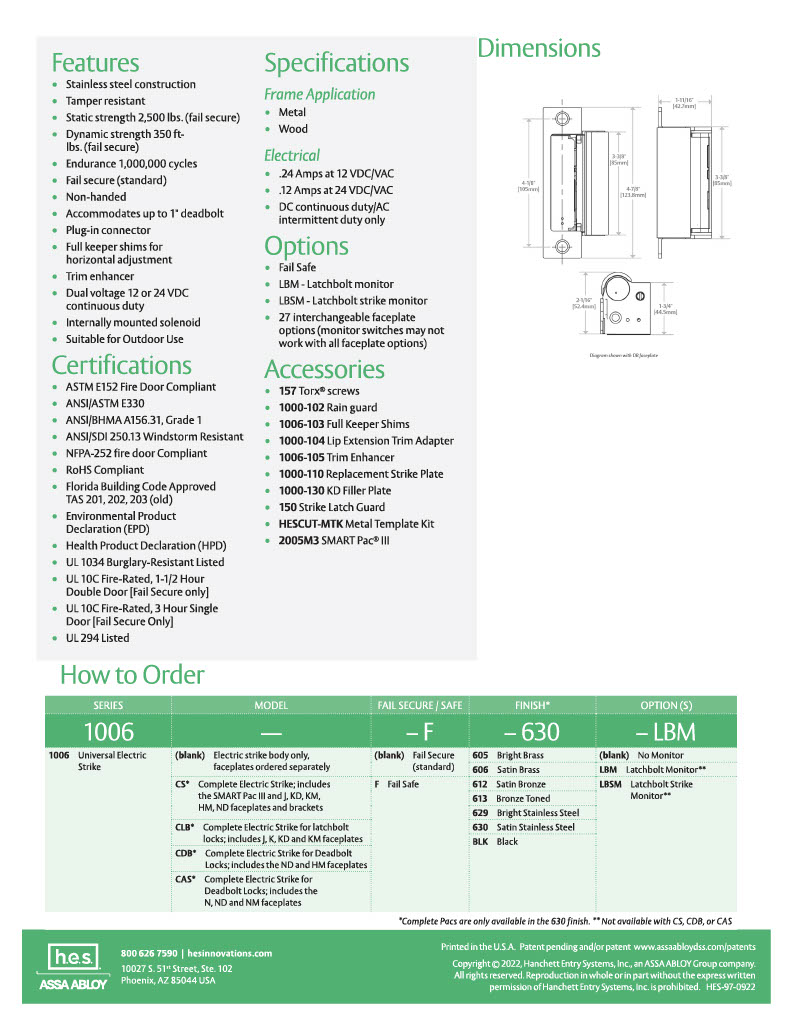

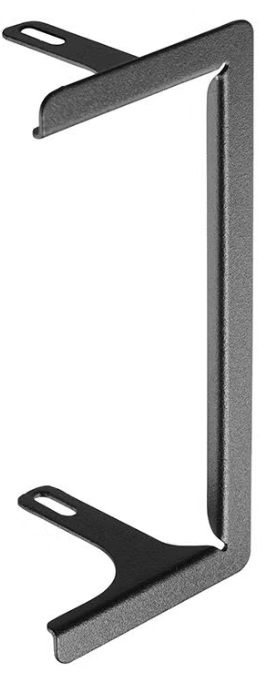

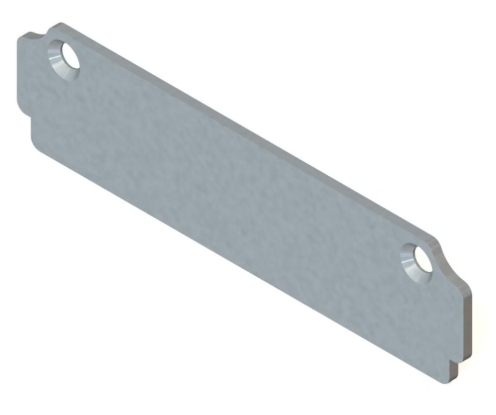

Stainless steel constructionTamper resistantStatic strength 3070 lbs. (fail secure)Dynamic strength 350 ft-lbs. (fail secure)Endurance 1,000,000 cyclesFail secure (standard)Dual voltage 12 or 24VDC continuous dutyNon-handedInternally mounted solenoidAccommodates up to 1" deadboltPlug-in connectorFull keeper shims for horizontal adjustmentTrim enhancerFive year limited warranty
Frame Application:
MetalWood
Electrical:
.45 Amps at 12VDC continuous duty.25 Amps at24VDC continuous duty
Finish:630 - Satin Stainless Steel
Optional Features:LBM Latchbolt monitor LBSM Latchbolt strike monitor
Faceplate Options
LB Kit
The Latchbolt Solution: Includes all hardware to accommodate every cylindrical and mortise lock with up to a 3/4" latchbolt. Replaces the J, K, KM and KD Options
DB Kit
The Deadbolt Solution: Includes all hardware to retain, release and recapture all mortise locks, and tubular deadbolts with up to a 1" latchbolt. Replaces the N, ND, NM, A, AM, AD, T, TD, H, HD, HM, HT, and HTD options
DB-2 Kit*
*The Deadbolt Solution: Includes all hardware to retain, release and recapture all mortise locks, and tubular deadbolts with up to a 1" latchbolt. Replaces the N-2, A-2, T-2, and H-2 options
E Option
For use with: Corbin Russwin Security Bolt, Weiserbolt and normally extended 1" tubular deadbolts
R Option
For use with: Adams Rite style hookbolt up to 1" throw
Z Option
For use with: Unit and Mono lock.
J-2 Option
For use with: All cylindrical locks with up to a 3/4" latchbolt.
KM-2 Option
For use with: Mortise locksets with a normally extended 1" deadbolt.
J Option
For use with: Cylindrical locksets with up to 3/4" throw and all locksets with center-lined bolts. Compatible locksets: All brands of cylindrical latchbolts
KD Option
For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)
KM Option
For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
AD Option
For use with: Mortise locksets with a normally extended 1" deadbolt. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
AM Option
For use with: Mortise locksets with a normally extended 1" deadbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HM Option
For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
HTD Option
For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
ND Option
For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
NM Option
For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)
T Option
For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage
TD Option
For use with: Mortise locksets with a normally extended 1" deadbolt and center-lined deadlatch. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)
Model:HES, 1006630, 1006630LB, 1006630LBSM, 1006J630,1006DB630, 1006TD630, 1006T630, 1006NM630, 1006ND630, 1006HTD630, 1006HM630, 1006AD630, 1006KM630, 1006KD630, 1006DB2630, 1006KM2630, 1006J2630, 1006R630, 1006Z630, 1006E630, 1006LB630, Electric Strike
