Hes 1006CLB Electric Smart Strike - Complete for Latchbolt Locks

Hes 1006CLB Electric Smart Strike - Complete for Latchbolt Locks  - Fail secure (standard)

Features:The 1006CLB is the electric strike for all latchbolt locks. This Complete One Box Solution includes all hardware necessary to fully accommodate every brand of cylindrical and mortise locksets designed to work with an ANSI 4-7/8" strike plate. The 1006CLB is the strongest and most versatile electric strike available. Truly in a class of its own

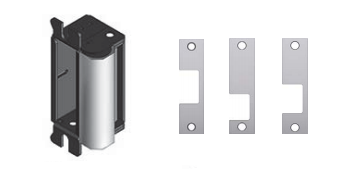

The 1006CLB includes the 1006 electric strike body plus faceplates and brackets that provide the same function as any of the following options:, J Option, K Option, KD Option, KM Option

Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

 Stainless steel construction Tamper resistant Static strength 3070 lbs. (fail secure) Dynamic strength 350 ft-lbs. (fail secure) Endurance 1,000,000 cycles Fail secure (standard) Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warrantyFrame Application: - Metal - Wood

Electrical: - .45 Amps at 12VDC continuous duty - .25 Amps at24VDC continuous duty

Finish:605 - Bright brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 629 - Bright Stainless Steel, 630 - Satin Stainless Steel, BLK - Black

Optional Features:LBM Latchbolt monitor - LBSM Latchbolt strike monitor

Model:HES,1006CLB605, 1006CLB6056 1006CLB612, 1006CLB613, 1006CLB629, 1006CLB630, 1006CLBBLK, Electric Strike

 UL 10C fire-rated, 3 hour single door (fail secure only) UL 10C fire-rated, 1-1/2 hour double door (fail secure only) CAN4-S104(ULC-S104) fire door conformant ANSI A250.13-2003 windstorm listed UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformantASTM-E152 fire door conformant MEA New York City accepted Florida Building Code approved Patents Number: 6021038 & 6595564
