HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish

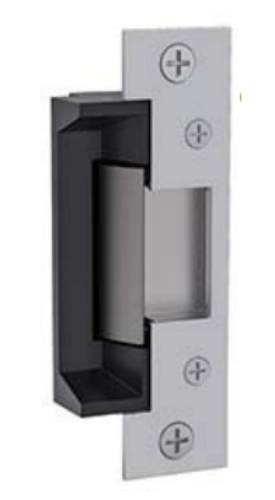

Picture of HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish

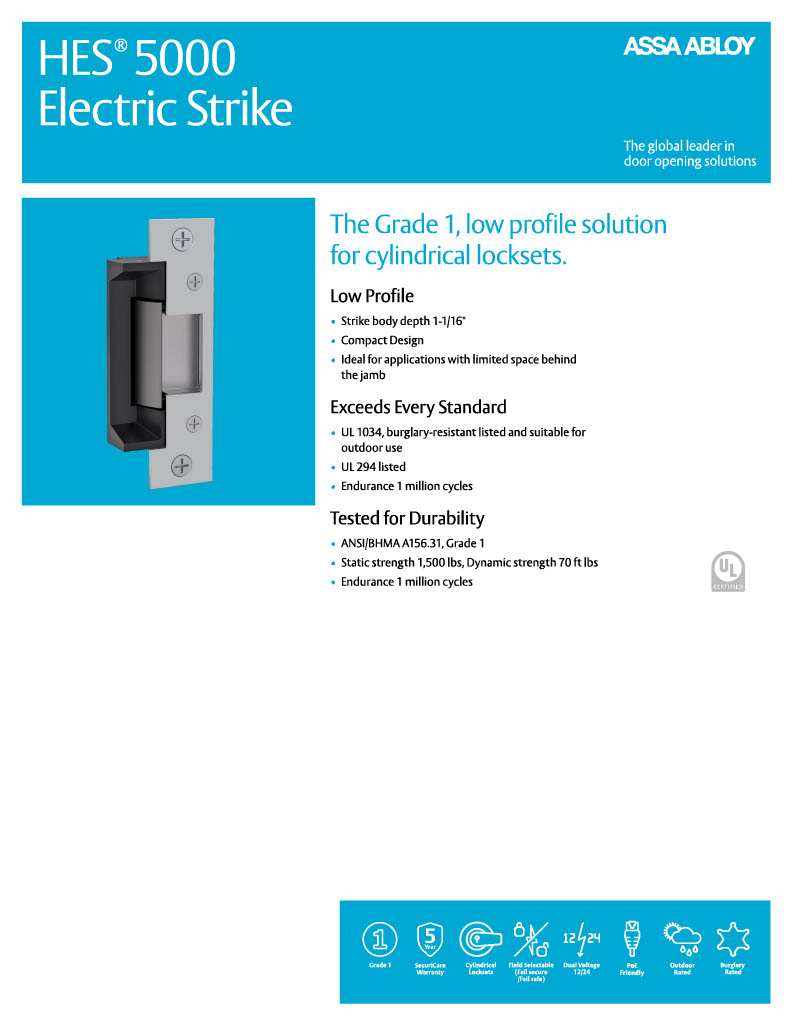

1-Page1-HES5000

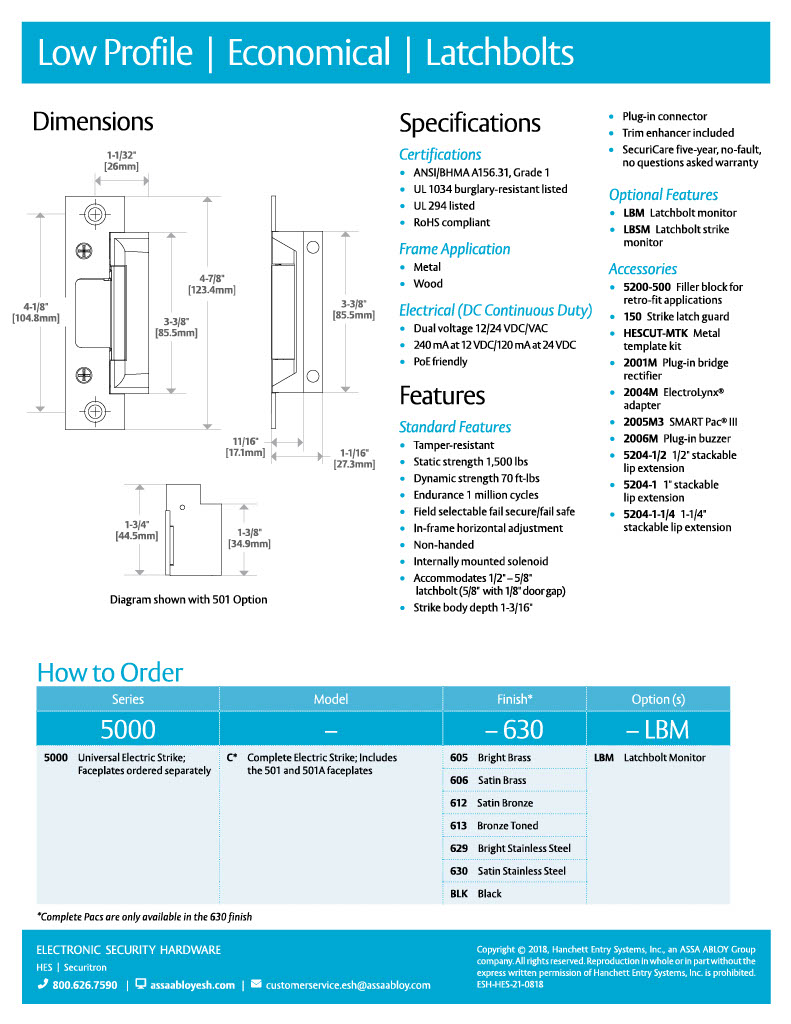

1-Page2-HES5000
Picture of HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish
1-Page1-HES5000
1-Page2-HES5000
naxt
prev

Product Details

HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel

Includes the 501 face plate in the box

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware.

This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application Metal, Wood

Electrical: .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

Non-handed

Internally mounted solenoid

Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)

Strike body depth 1-1/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Optional Features

LBM - Latchbolt monitor

Faceplates 501 Option

Square corners and flat faceplate. For use with: Cylindrical locksets in ANSI metal jambs ANSI/BHMA Numbers: E09321, E09322, E09323

Model: HES, 5000501, 5000501LBM, 5000501630, 5000501LBM630,Electric Strike

HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish

SKU: 5000-501-630

In Stock

$144.78

Option: *

About this item

HES 5000 The grade 1, low profile solution for cylindrical lockset

HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel

Includes the 501 face plate in the box

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware.

This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application Metal, Wood

Electrical: .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

Non-handed

Internally mounted solenoid

Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)

Strike body depth 1-1/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Optional Features

LBM - Latchbolt monitor

Faceplates 501 Option

Square corners and flat faceplate. For use with: Cylindrical locksets in ANSI metal jambs ANSI/BHMA Numbers: E09321, E09322, E09323

Model: HES, 5000501, 5000501LBM, 5000501630, 5000501LBM630,Electric Strike

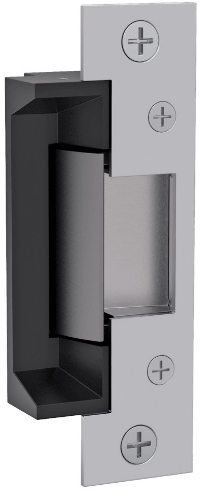

Picture of HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish
HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish

Product code: 5000-501-630

In Stock

$144.78

$144.78

Specifications

UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 MEA New York City accepted Patent #5,934,720

Picture of HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish
HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish

Product code: 5000-501-630

In Stock

$144.78

$144.78

HES 5000-501-630 Electric Strike, For Use with Cylindrical Locksets in ANSI Metal Jambs, Satin Stainless Steel Finish

SKU: 5000-501-630

Parts & Accessories

Picture of HES CUT-MTK Metal Template Kit
HES CUT-MTK Metal Template Kit

Product code: W561BD

In Stock
$113.00

$64.41

Picture of HES 2001M AC Plug-in Bridge Rectifier
HES 2001M AC Plug-in Bridge Rectifier

Product code: W561BD

In Stock
$90.00

$51.30

Picture of HES 2004M - Electrolynx Adaptor
HES 2004M - Electrolynx Adaptor

Product code: W561BD

In Stock
$52.00

$29.64

Picture of HES 2006M In Line Buzzer
HES 2006M In Line Buzzer

Product code: W561BD

In Stock
$70.00

$39.90

Picture of HES 150 Strike Latch Guard, Satin Stainless Steel Finish
HES 150 Strike Latch Guard, Satin Stainless Steel Finish

Product code: W561BD

In Stock
$117.00

$66.69

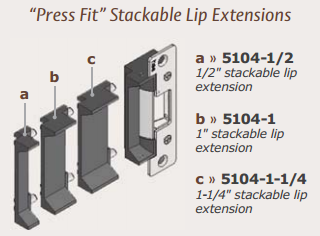

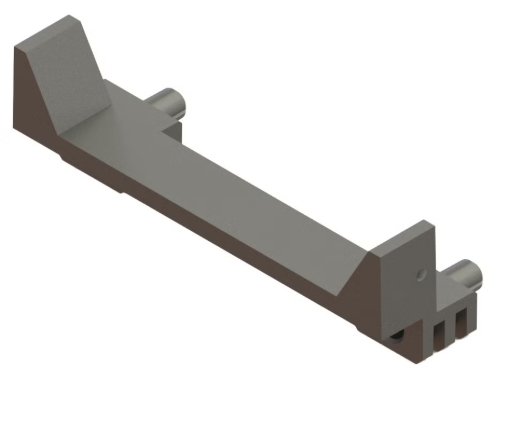

Picture of HES 5104-1/2 Stackable Lip Extension - For 5000 Series -  1/2"
HES 5104-1/2 Stackable Lip Extension - For 5000 Series - 1/2"

Product code: W561BD

In Stock
$69.00

$39.33

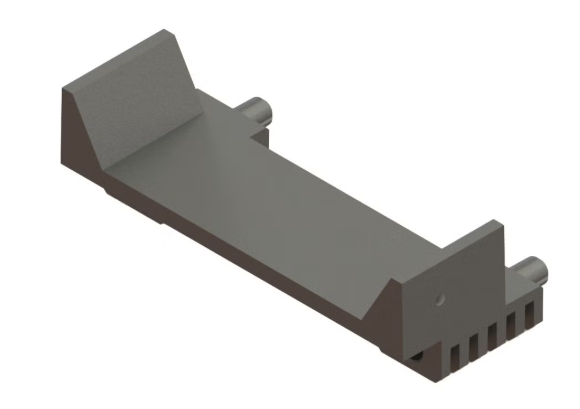

Picture of HES 5104-1 Stackable Lip Extension For 5000 Series - 1"
