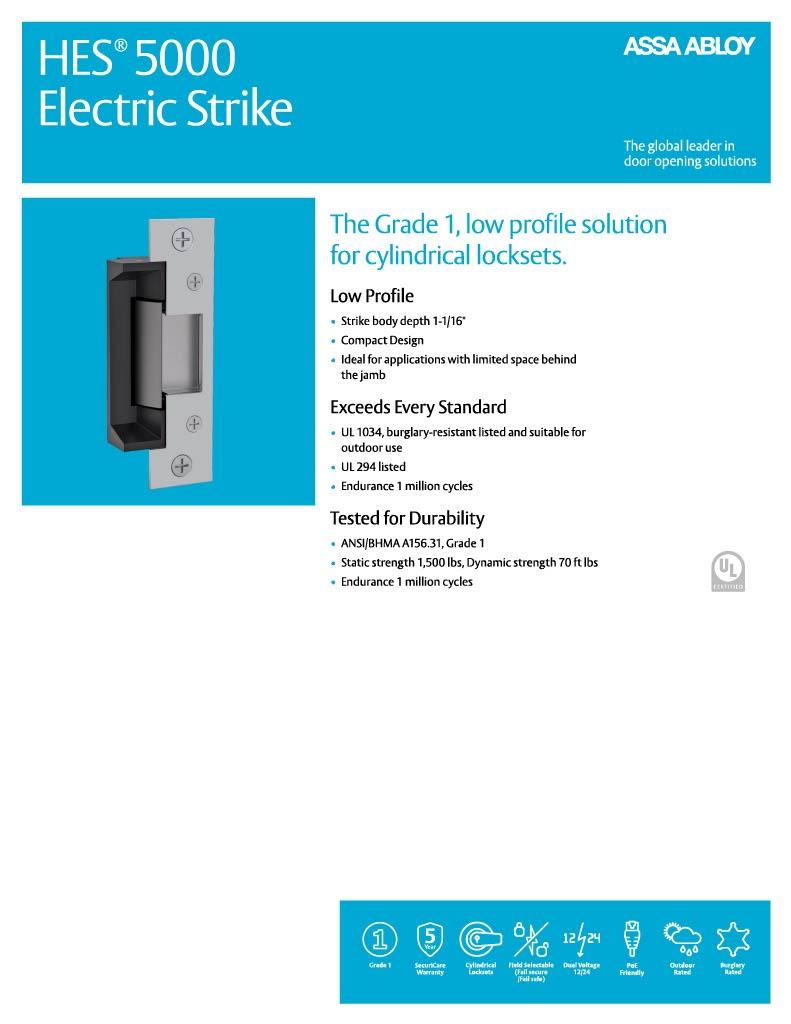

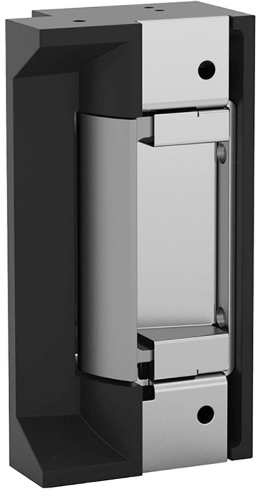

HES 5000 Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike

HES 5000 Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware.

This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application Metal, Wood

Electrical: .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

Non-handed

Internally mounted solenoid

Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)

Strike body depth 1-1/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Finishes: 630 - Satin stainless, 605 - Bright brass, 606 - Satin brass, 612 - Satin bronze, 613 - Bronze toned, 629 - Bright stainless steel, BLK - Black

Optional Features

LBM - Latchbolt monitor

Faceplate Options 501 Option Square corners and flat faceplate. For use with: Cylindrical locksets in ANSI metal jambs ANSI/BHMA Numbers: E09321, E09322, E09323

501A Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

502 Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

503 Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

504 Option Radius corners and flat faceplate. For use with: Cylindrical locksets. Four-point mounting for wood installations ANSI/BHMA Numbers: E09321, E09322, E09323

Model: HES, 5000, 5000LBM, 5000501605, 5000501606, 5000501612, 5000501613, 5000501629, 5000501630, 5000501BLK, 5000501A613, 5000501A630, 5000502605, 5000502606, 5000502612, 5000502613, 5000502629, 5000502630, 5000502BLK, 5000503605, 5000503606, 5000503612, 5000503613, 5000503630, 5000503BLK, 5000504605, 5000504606, 5000504612, 5000504613, 5000504629, 5000504630, 5000504BLK, Electric Strike

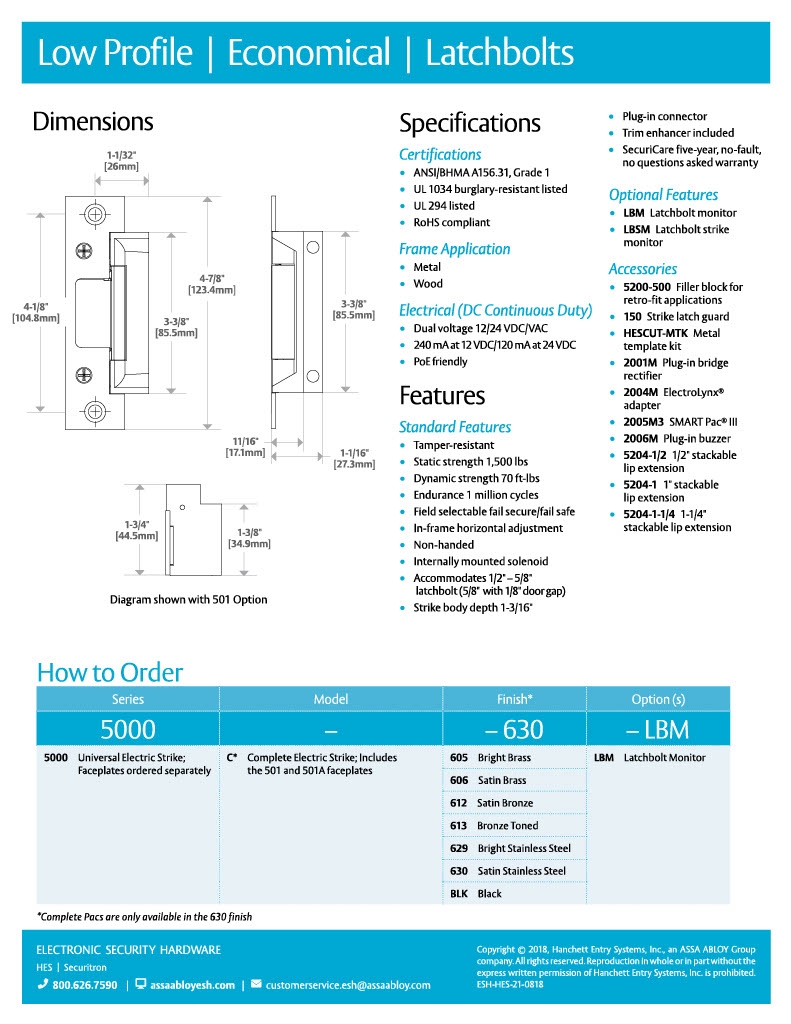

Specifications

UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 MEA New York City accepted Patent #5,934,720
