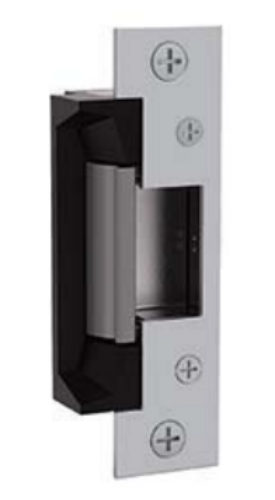

HES 5200 Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike

HES 5200 Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike

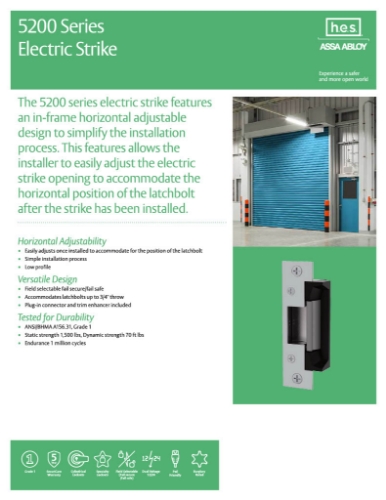

The 5200 series electric strikes feature an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accomodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 3/4" throw.

Frame application Metal, Wood

Electrical: .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

In-frame horizontal adjustment

Non-handed

Internally mounted solenoid

Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)

Strike body depth 1-3/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Finishes: 630 - Satin stainless, 605 - Bright brass, 606 - Satin brass, 612 - Satin bronze, 613 - Bronze toned, 629 - Bright stainless steel, BLK - Black

Optional Features LBM - Latchbolt monitor LBSM - Latchbolt strike monitor

Faceplate Options 501 Option

Square corners and flat faceplate. For use with: Cylindrical locksets in ANSI metal jambs ANSI/BHMA Numbers: E09321, E09322, E09323

501A Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

502 Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

503 Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

504 Option Radius corners and flat faceplate. For use with: Cylindrical locksets. Four-point mounting for wood installations ANSI/BHMA Numbers: E09321, E09322, E09323

Model: HES, 5200, 5200LBM, 5200501605, 5200501606, 5200501612, 5200501613, 5200501629, 5200501630, 5200501BLK, 5200501A613, 5200501A630, 5200502605, 5200502606, 5200502612, 5200502613, 5200502629, 5200502630, 5200502BLK, 5200503605, 5200503606, 5200503612, 5200503613, 5200503630, 5200503BLK, 5200504605, 5200504606, 5200504612, 5200504613, 5200504629, 5200504630, 5200504BLK, Electric Strike

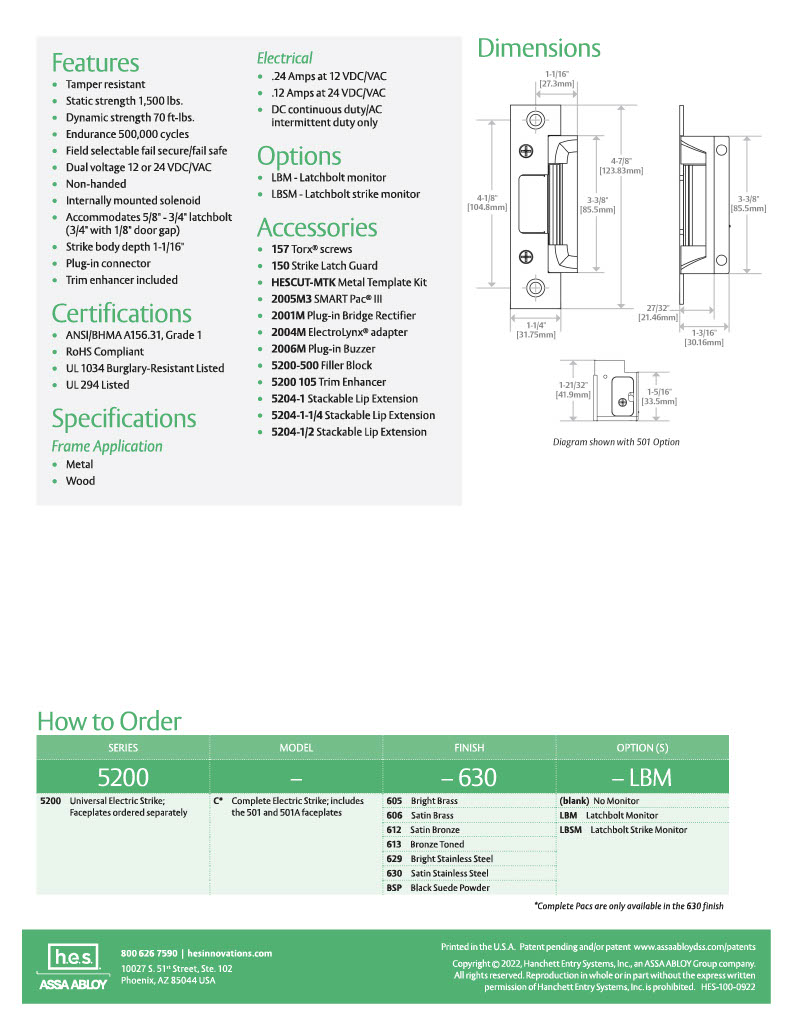

Specifications

UL 1034, burglary-resistant listed ANSI/BHMA A156.31, Grade 1 Patent #5,934,720
