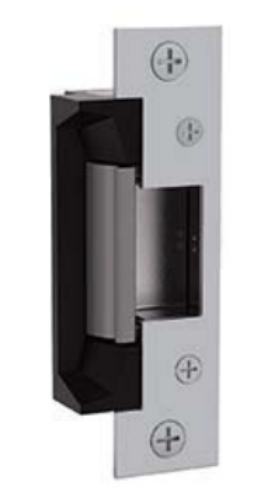

HES 5200C-630 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

HES 5200C-630 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

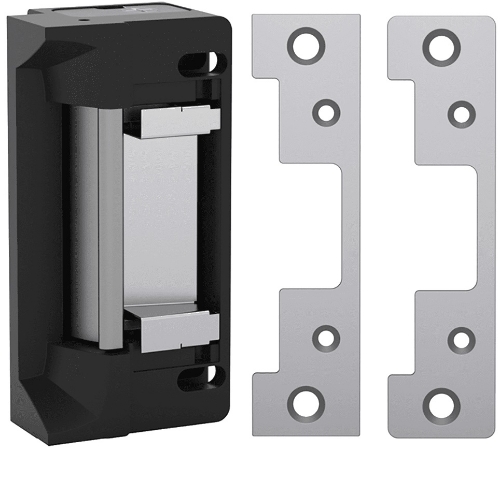

Includes the 501 and 501A face plates in the box

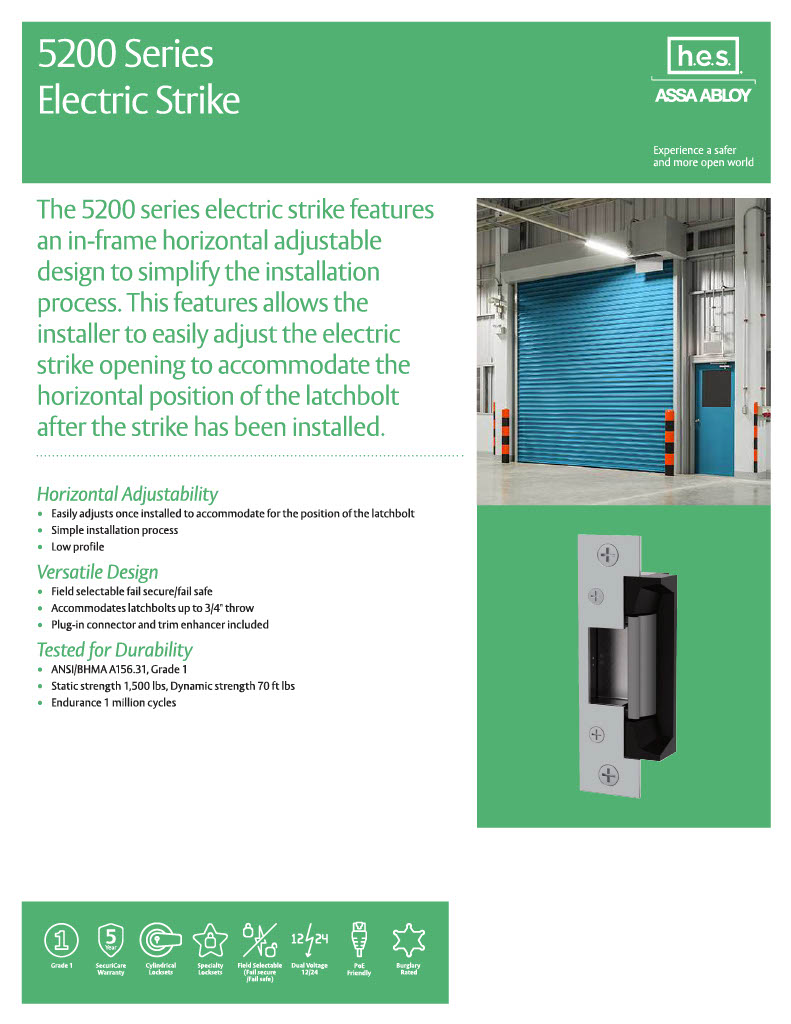

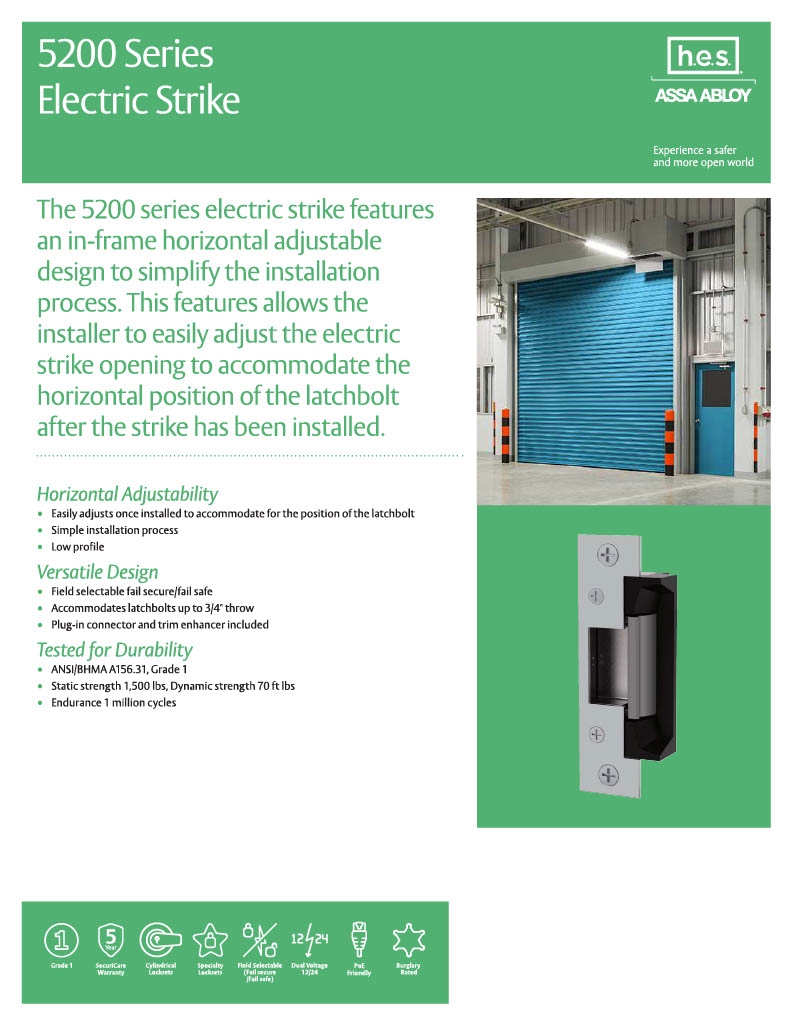

The 5200 series electric strikes feature an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accomodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 3/4" throw.

Frame application Metal, Wood

Electrical: .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

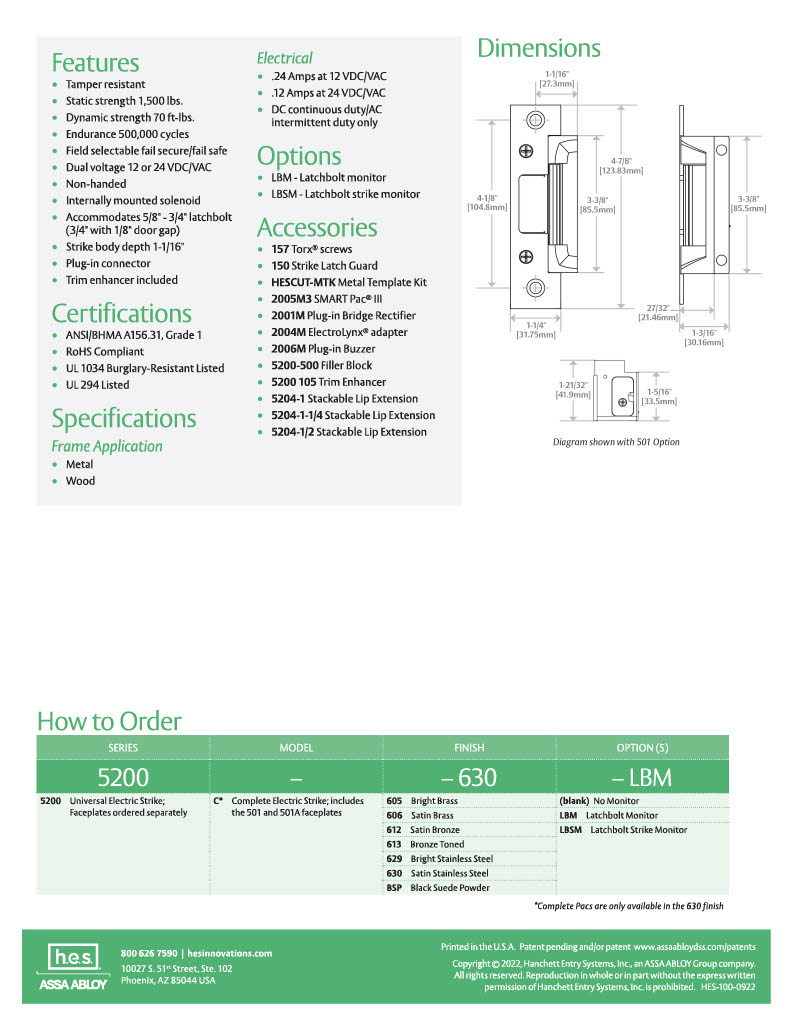

Standard Features

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail secure/ fail safe

Dual voltage 12 or 24 VDC/VAC

In-frame horizontal adjustment

Non-handed

Internally mounted solenoid

Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)

Strike body depth 1-3/16"

Plug-in connector

Trim enhancer included

Five year limited warranty

Finishes: 630 - Satin stainless

Optional Features LBM - Latchbolt monitor LBSM - Latchbolt strike monitor

Faceplate Options 501 Option

Square corners and flat faceplate. For use with: Cylindrical locksets in ANSI metal jambs ANSI/BHMA Numbers: E09321, E09322, E09323

501A Option Radius corners and flat faceplate. For use with: Cylindrical locksets or spring latches used in aluminum frames. Includes universal mounting tabs. ANSI/BHMA Numbers: E09321, E09322, E09323

Model: HES, 5200C, 5200CLBM, 5200C630, 5200CLBM630,Electric Strike

Specifications

UL 1034, burglary-resistant listed ANSI/BHMA A156.31, Grade 1 Patent #5,934,720
