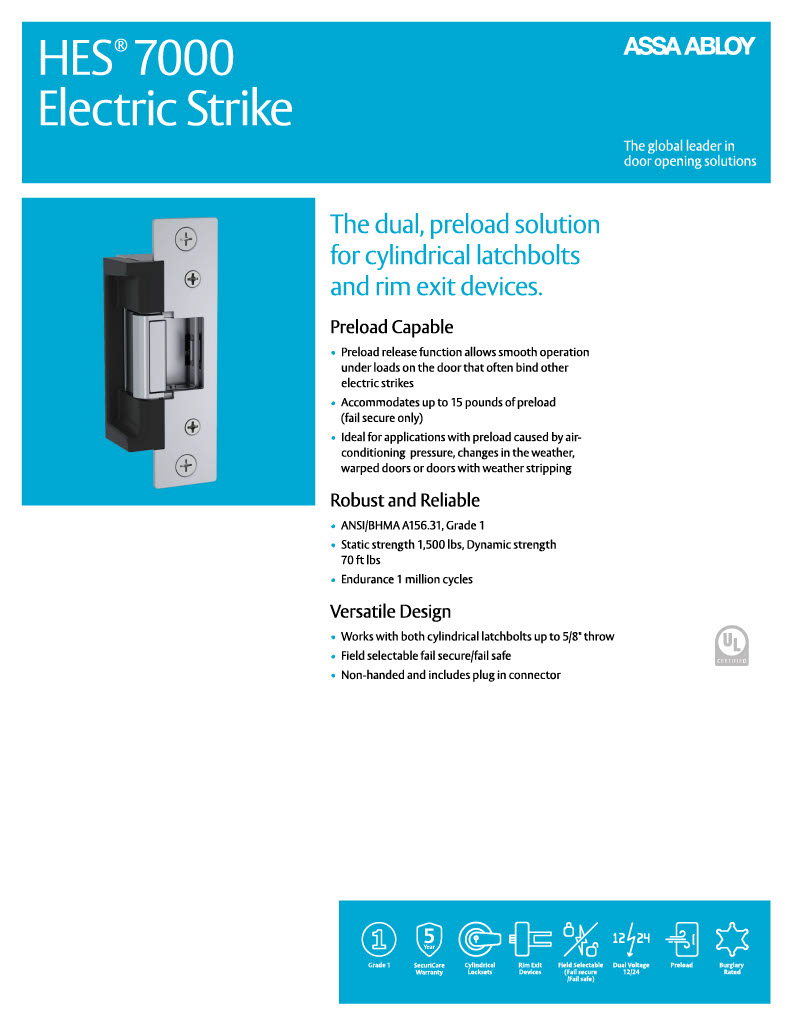

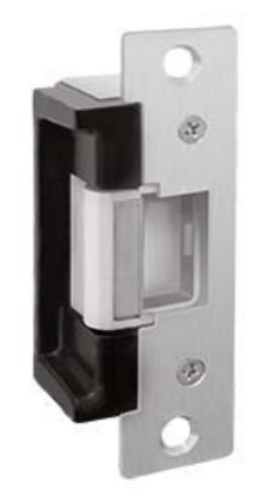

HES 7000 Electric Strike Body Only, Fail Safe/Fail Secure, 12/24VDC

HES 7000 Electric Strike Body Only, Fail Safe/Fail Secure, 12/24VDC

Offers two solutions to address pre-loaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation.

The pre-load release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Frame application Metal Wood

Electrical .45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty

Standard Features

Stainless steel construction

Tamper resistant

Static strength 1,500 lbs. (791 and 792 options)

Dynamic strength 70 ft-lbs. (791 and 792 options)

Static strength 1,000 lbs. (783S, 786S and 789S options)

Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)

Endurance 500,000 cycles

Field selectable fail secure/fail safe

Accommodates pre-load (fail secure only)

Horizontal adjustment

Non-handed

Internally mounted solenoid

Strike body depth 1-11/16"

Plug-in connector

Trim enhancer (791 and 792 options)

Pocket adapter (786S and 789S options)

Three year limited warranty

791 and 792

Available Finishes 630 - Satin stainless, 605 - Bright brass, 606 - Satin brass, 612 - Satin bronze, 613C - Brown nylon powder coated, 629 - Bright stainless steel, BLK - Black

738S, 786S, and 789S

Available Finishes 613C - Brown nylon powder coated , 626 - Brushed chrome

Optional Features

LBM - Latchbolt monitor

Faceplate Options

791 For use with Cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323

792 For use with cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323

783S For use with rim exit devices in metal jambs with up to a 3/4" pullman latch. Compatible Locksets: American Device, Arrow, Doramatic, Monarch, Precision, Sargent, Von Duprin, Yale. ANSI/BHMA Numbers: #E09312, #E09313

786S For use with rim exit devices in aluminum jambs and surface mounted vertical rod exit devices with up to a 3/4" pullman latch. Compatible Locksets:  American Device, Arrow, Doramatic, Jackson, Monarch, Precision, Sargent, Von Duprin, Yale. ANSI/BHMA Numbers: #E09312, #E09313

789S For use with rim exit devices in aluminum jambs with up to a 3/4" pullman latch. Includes keeper pocket adapter. Compatible Locksets:  American Device, Arrow, Doramatic, Jackson, Monarch, Precision, Sargent, Von Duprin, Yale. ANSI/BHMA Numbers: #E09312, #E09313

Model: HES, 7000, 700012LBM, 700012791605, 700012791606, 700012791612, 700012791613, 700012791629, 700012791630, 700012791BLK, 700012791A613, 700012791A630, 700012792605, 700012792606, 700012792612, 700012792613, 700012792629, 700012792630, 700012792BLK, 700012738S613, 700012738S626, 700012786S613, 700012786S626, Electric Strike, 700024LBM, 700024791605, 700024791606, 700024791624, 700024791613, 700024791629, 700024791630, 700024791BLK, 700024791A613, 700024791A630, 700024792605, 700024792606, 700024792624, 700024792613, 700024792629, 700024792630, 700024792BLK, 700024738S613, 700024738S626, 700024786S613, 700024786S626, Electric Strike

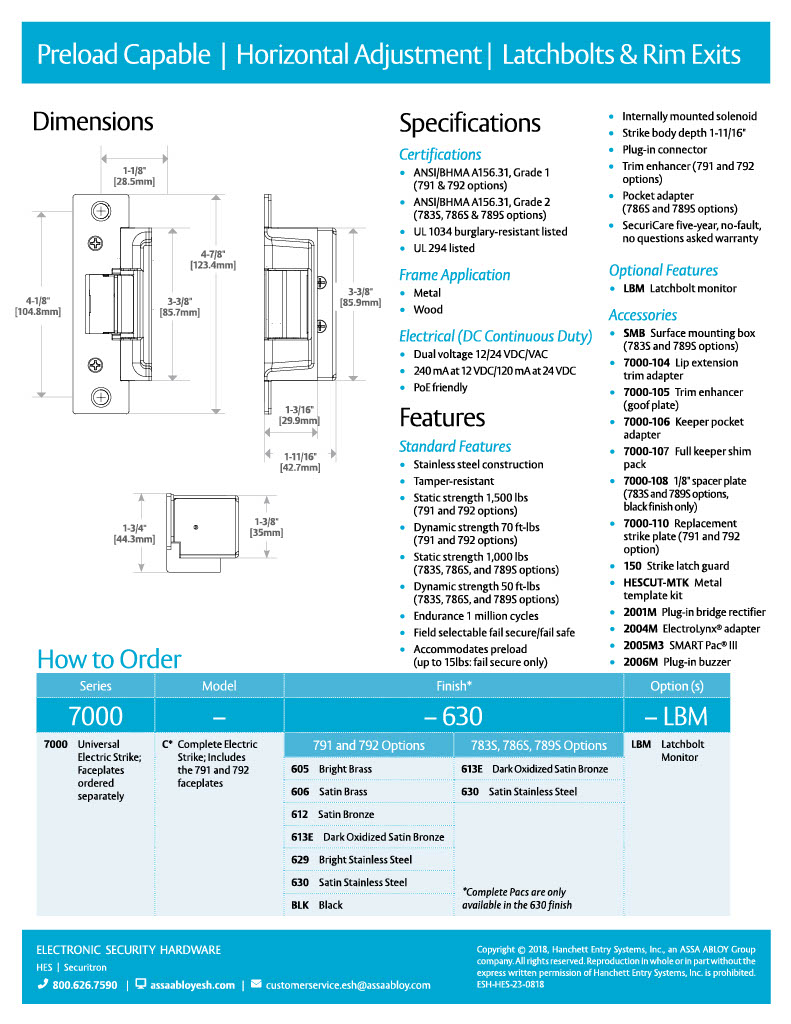

Specifications

UL 1034, burglary-resistant listed ANSI/BHMA A156.31, Grade 1 (791 and 792 options) ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options) MEA New York City accepted Patent #5,484,180
