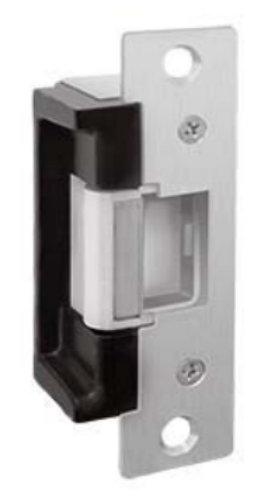

HES 7000C-630 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

HES 7000C-630 Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

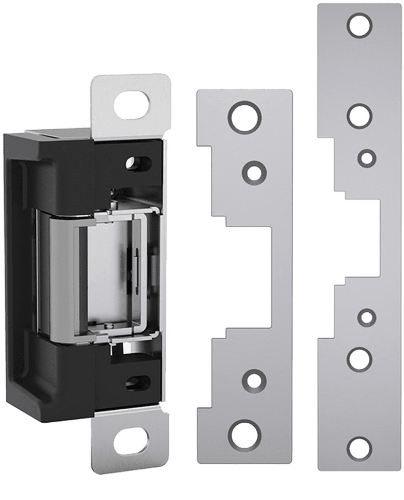

Includes the 791 and 792 faceplates in the box

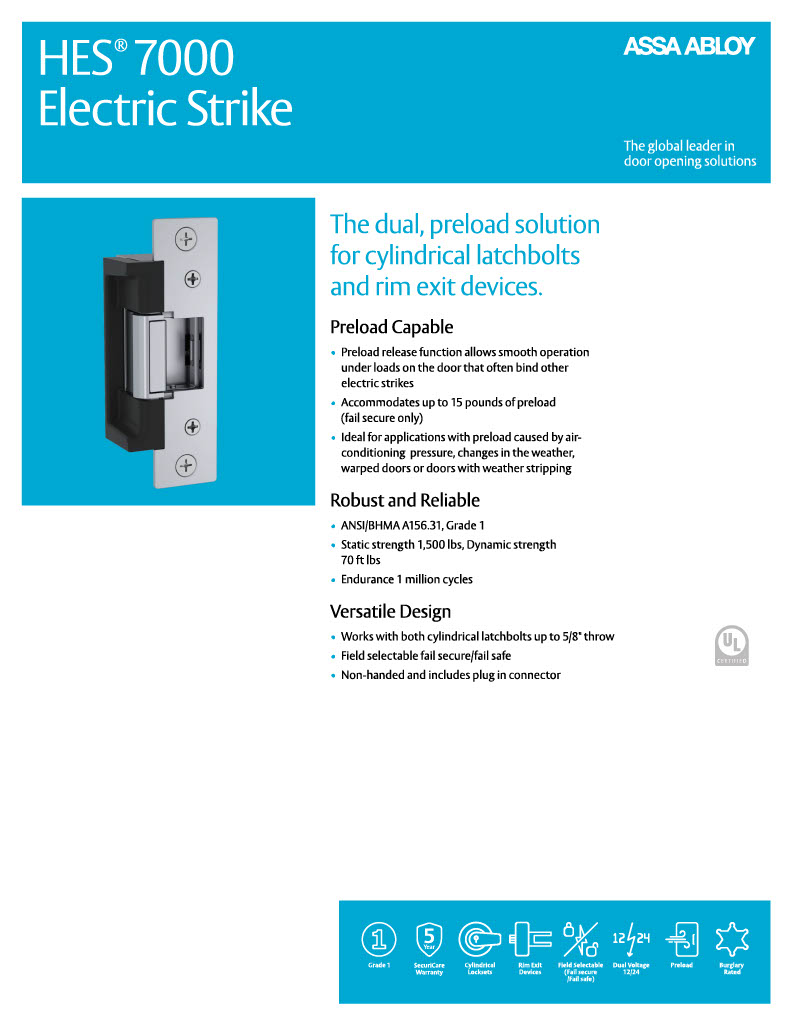

Offers two solutions to address pre-loaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation.

The pre-load release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Frame application Metal Wood

Electrical. 45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty

Standard Features

Stainless steel construction

Tamper resistant

Static strength 1,500 lbs. (791 and 792 options)

Dynamic strength 70 ft-lbs. (791 and 792 options)

Static strength 1,000 lbs. (783S, 786S and 789S options)

Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)

Endurance 500,000 cycles

Field selectable fail secure/fail safe

Accommodates pre-load (fail secure only)

Horizontal adjustment

Non-handed

Internally mounted solenoid

Strike body depth 1-11/16"

Plug-in connector

Trim enhancer (791 and 792 options)

Pocket adapter (786S and 789S options)

Three year limited warranty

Optional Features

LBM - Latchbolt monitor

Faceplates

791 For use with Cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323

792 For use with cylindrical locksets up to 5/8" throw. ANSI/BHMA Numbers: #E09322, #E09323

Model: HES, 7000C, 7000CLBM, 7000C630, Electric Strike

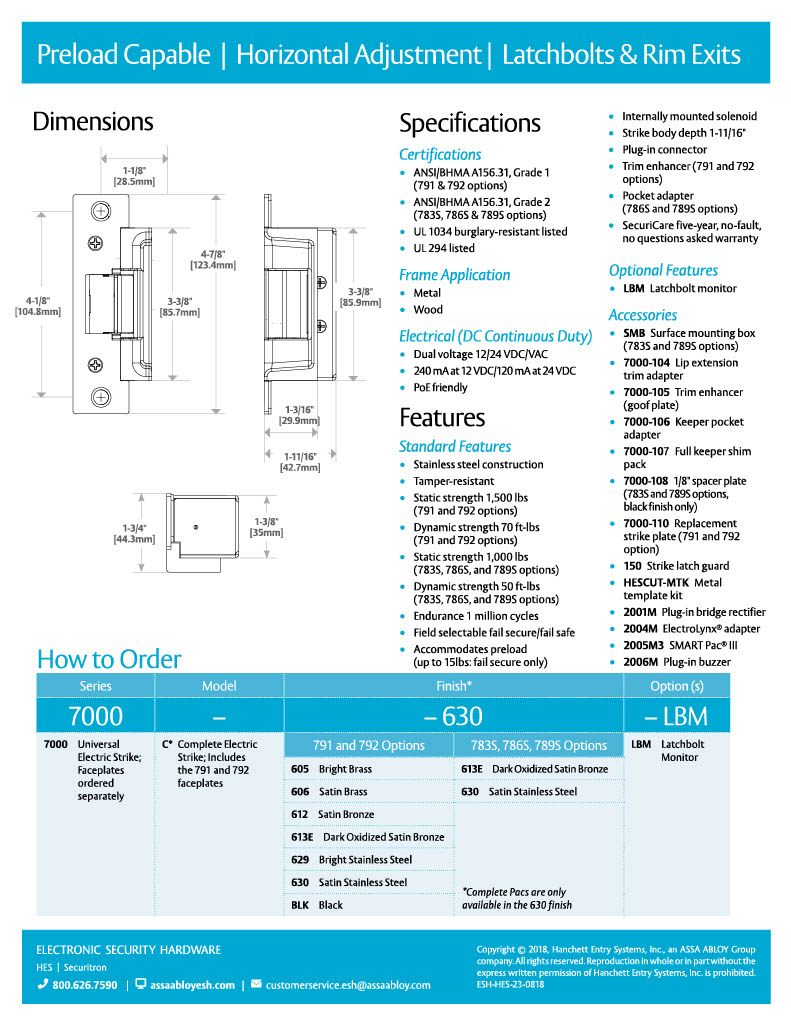

Specifications

UL 1034, burglary-resistant listed ANSI/BHMA A156.31, Grade 1 (791 and 792 options) ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options) MEA New York City accepted Patent #5,484,180
