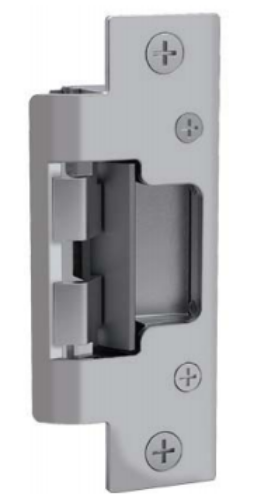

HES 8000 Concealed Electric Strike for Cylindrical Locksets

HES 8000 Concealed Electric Strike for Cylindrical Locksets

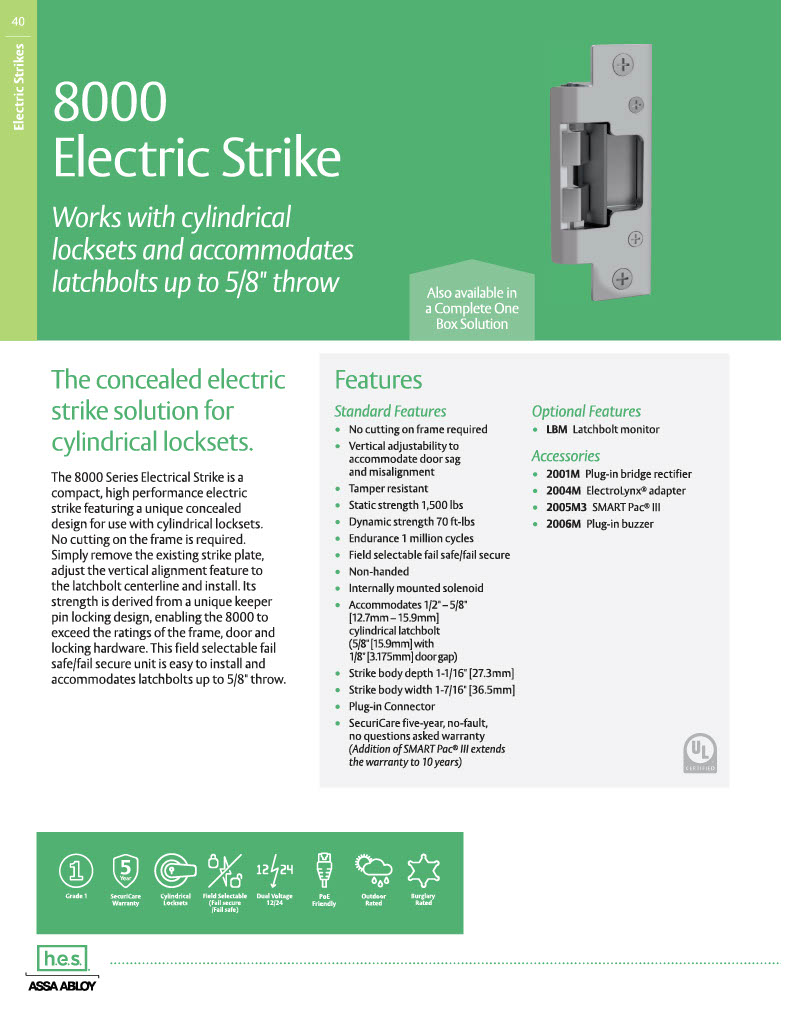

The 8000 series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets.

No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install.

Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware.

This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application Metal, Wood

Electrical .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

No cutting on frame required

Vertical adjustability to accommodate door sag and misalignment

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail safe/fail secure

Dual voltage 12 or 24 VDC/VAC

Non-handed

Internally mounted solenoid

Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)

Strike body depth 1-1/16"

NEW! Strike body width decreased to 1-7/16" to increase frame compatibility

Five year limited warranty Finishes:  630 - Satin stainless, 605 - Bright brass, 606 - Satin brass, 612 - Satin bronze, 613 - Bronze toned, 629 - Bright stainless steel, BLK - Black

Optional Features

LBM - Latchbolt monitor

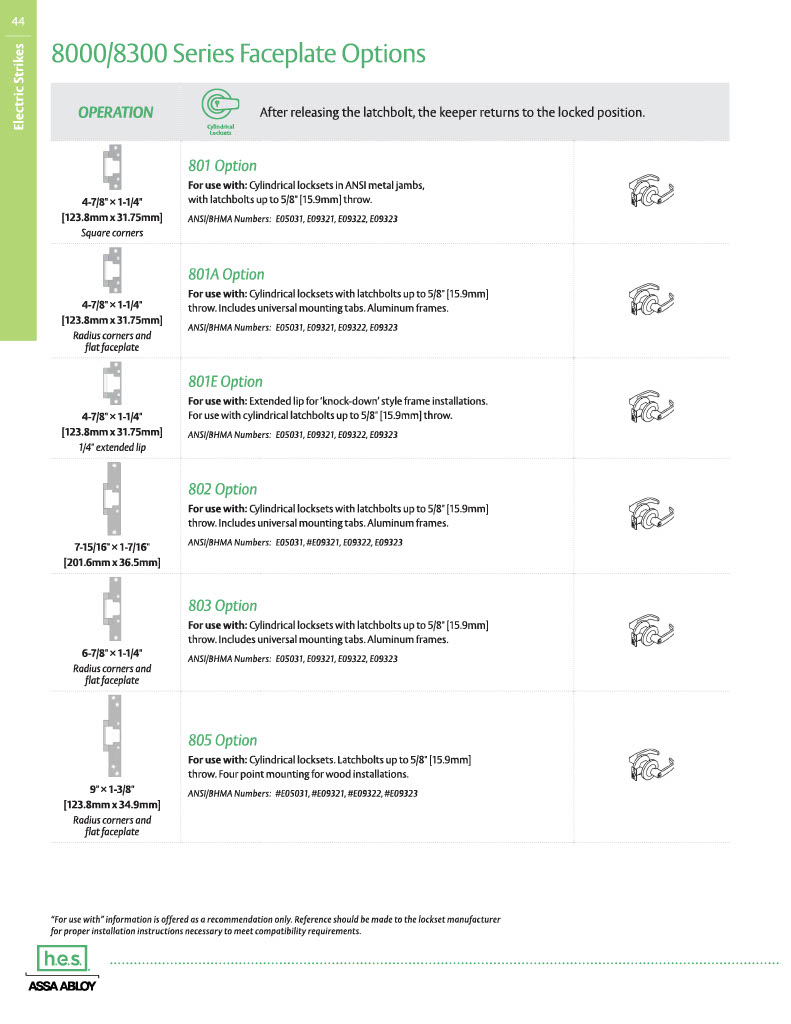

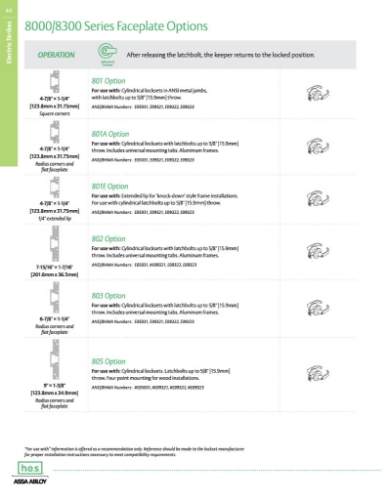

Faceplate Options

801 For use with cylindrical locksets in ANSI metal jambs. For use with latchbolts up to 5/8" throw. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

801A For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

801E For use with extended lip for "knock-down" style frame installations. For use with cylindrical latchbolts up to 5/8" throw. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

802 For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

803 For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum applications. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

805 For use with cylindrical locksets. For use with latchbolts up to 5/8" throw. Four point mounting for wood installations. ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

Model:HES, 8000, 8000LBM, 8000801, 8000801A, 8000801630, Electric Strike

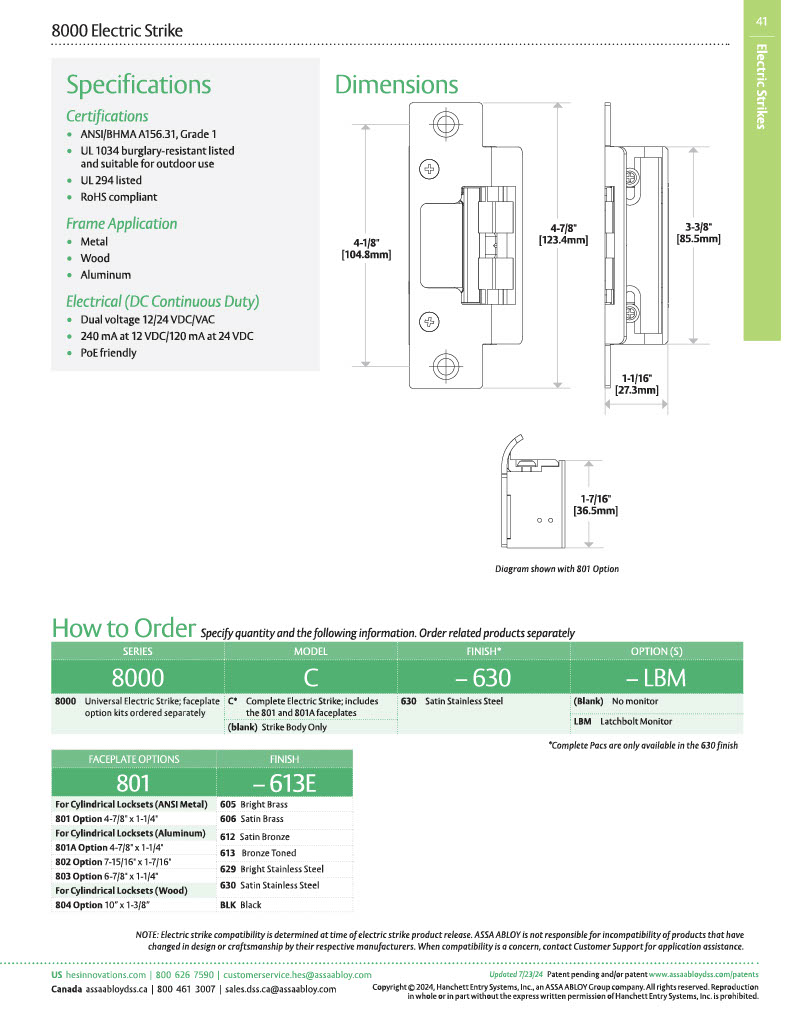

Specifications

UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 Patent #5,934,720; 8,146,966; 8,157,302
