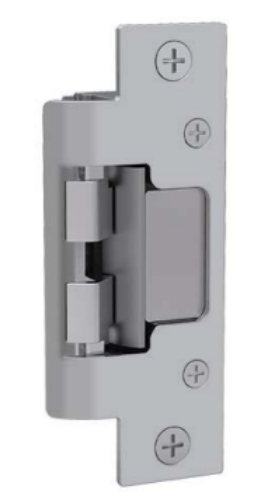

HES 8300C 630 Fire-Rated Concealed Complete Electric Strike for Cylindrical Locksets - Satin Stainless

HES 8300C 630 Fire-Rated Concealed*Complete*Electric Strike for Cylindrical Locksets - Satin Stainless

Accommodates no-cut frame & vertical adjustment with ½"-5/8" cylindrical latchbolts.

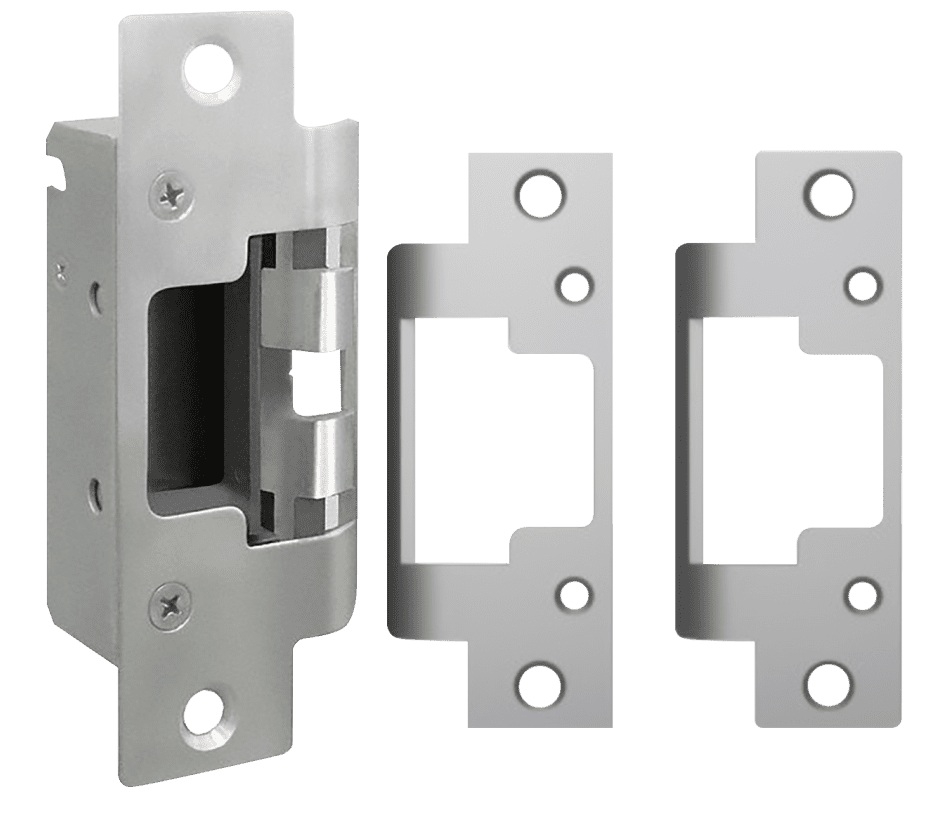

Includes 8000 electric strike body, 801 & 801A faceplates (4-7/8" x 1-1/4") and mounting hardware

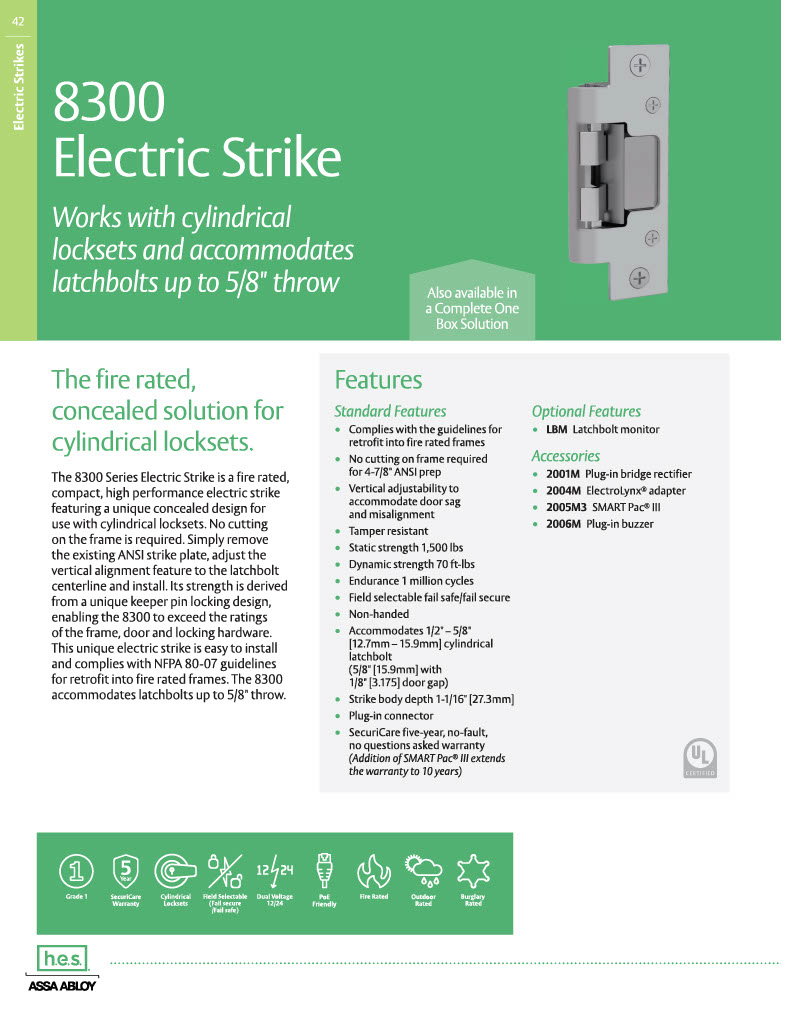

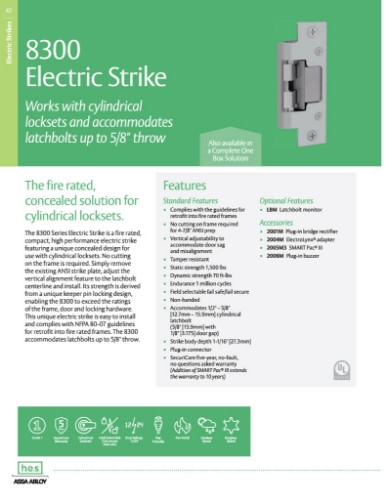

The 8300 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets.

No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install.

Its strength is derived from a unique keeper pin locking design, enabling the 8300 to exceed the ratings of the frame, door and locking hardware.

This unique electric strike is easy to install and complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8300 accommodates latchbolts up to 5/8" throw.

Frame application Metal, Wood

Electrical .24 Amps @ 12VDC/VAC .12 Amps @ 24VDC/VAC DC continuous duty/AC intermittent duty only

Standard Features

Falls within the guidelines for retrofit into fire-rated frames

No cutting on frame required

Vertical adjustability to accommodate door sag and misalignment

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail safe/fail secure

Non-handed

Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)

Strike body depth 1-1/16"

Plug-in connector

Finishes: 630 - Satin stainless, 605 - Bright brass, 606 - Satin brass, 612 - Satin bronze, 613 - Bronze toned, 629 - Bright stainless steel, BLK - Black

Optional Features

LBM - Latchbolt monitor

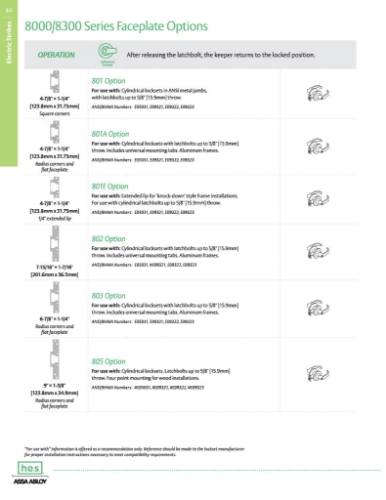

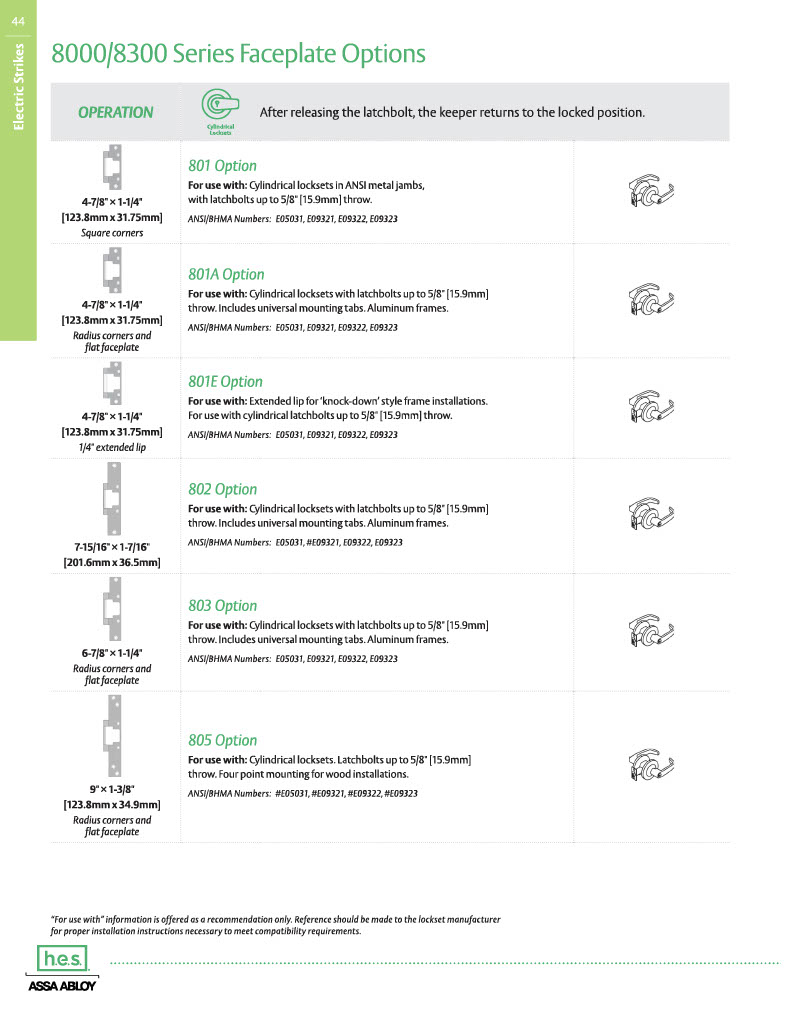

Faceplate Options

801 For use with cylindrical locksets in ANSI metal jambs.  For use with latchbolts up to 5/8" throw.  ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

801A  For use with cylindrical locksets.  For use with latchbolts up to 5/8" throw. Includes universal mounting tabs. Aluminum frames.  ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

Model: HES, 8300C, 8300CLBM, 8300C630, Electric Strike

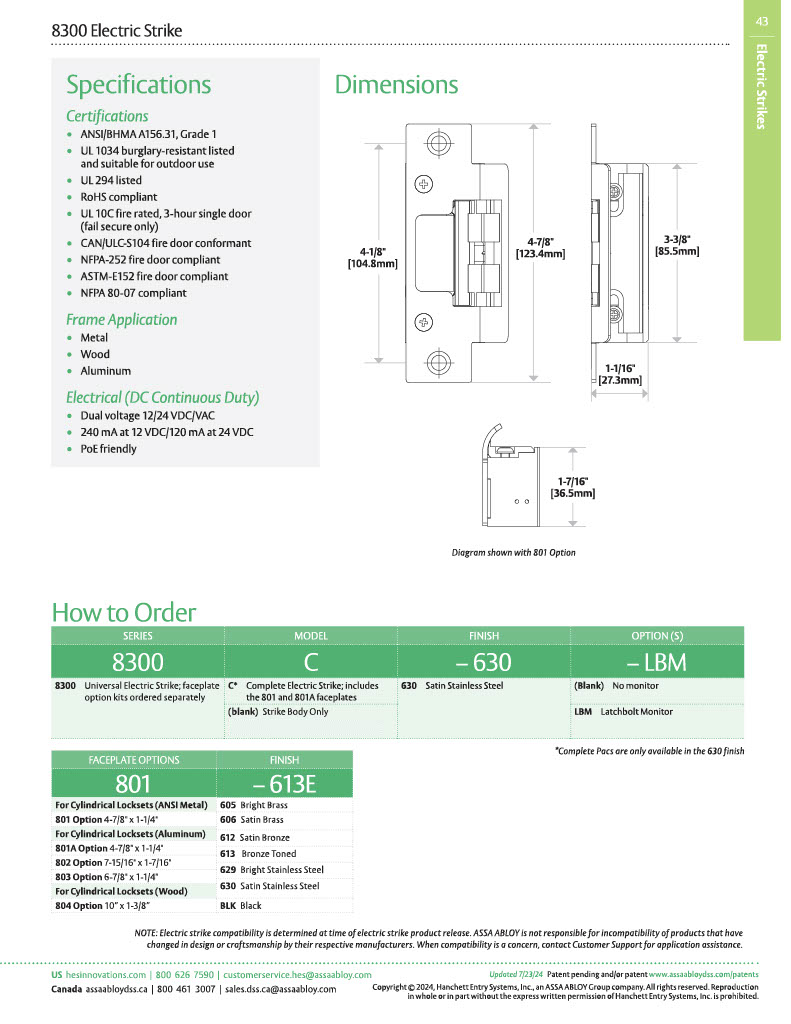

Specifications

UL 10C, fire-rated, 3 hour (fail secure only) CAN4-S104 (ULC-S104) fire door conformant NFPA 80-07 compliant UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant UBC-7-2-94, Uniform Building Code Patent #5,934,720; 8,146,966; 8,157,302
