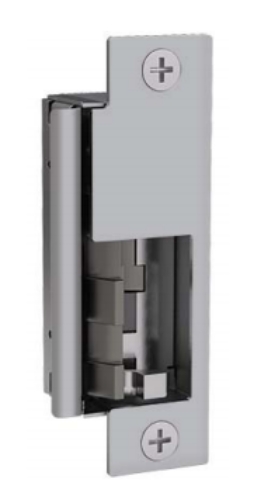

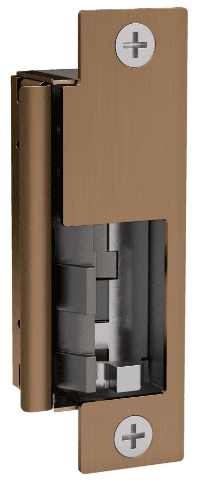

HES 8500-612 Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike, Satin Bronze Finish

HES 8500-612 Fail Safe/Fail Secure, Body Only, 12/24VDC Electric Strike, Satin Bronze Finish

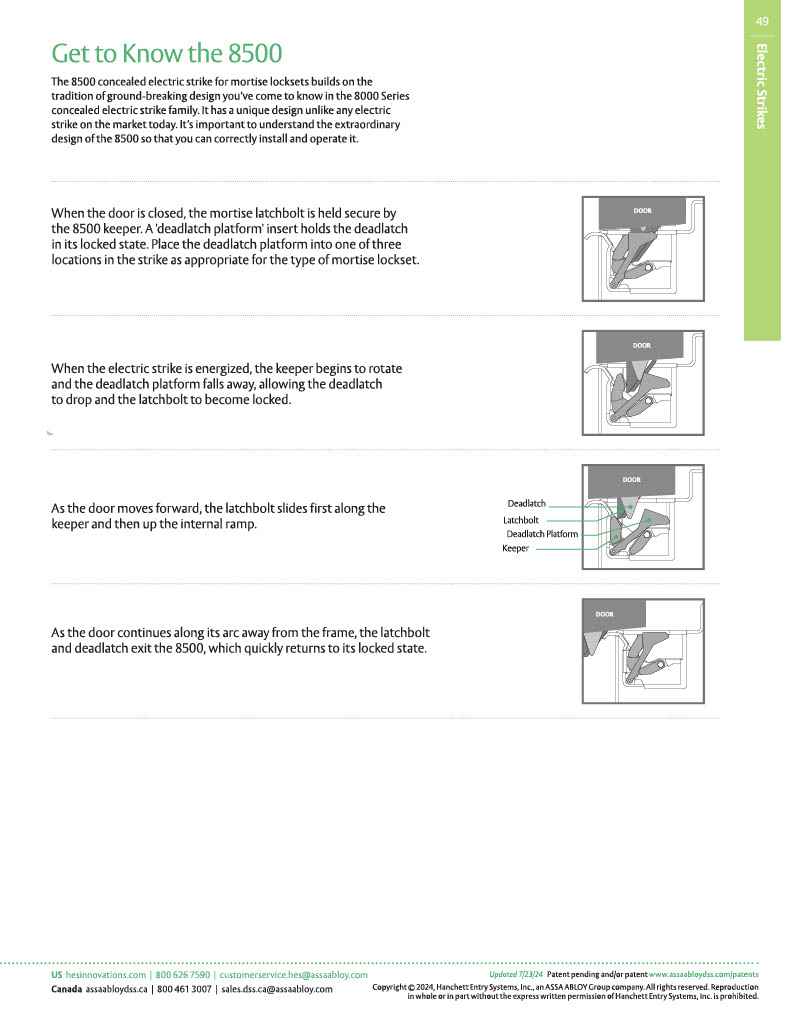

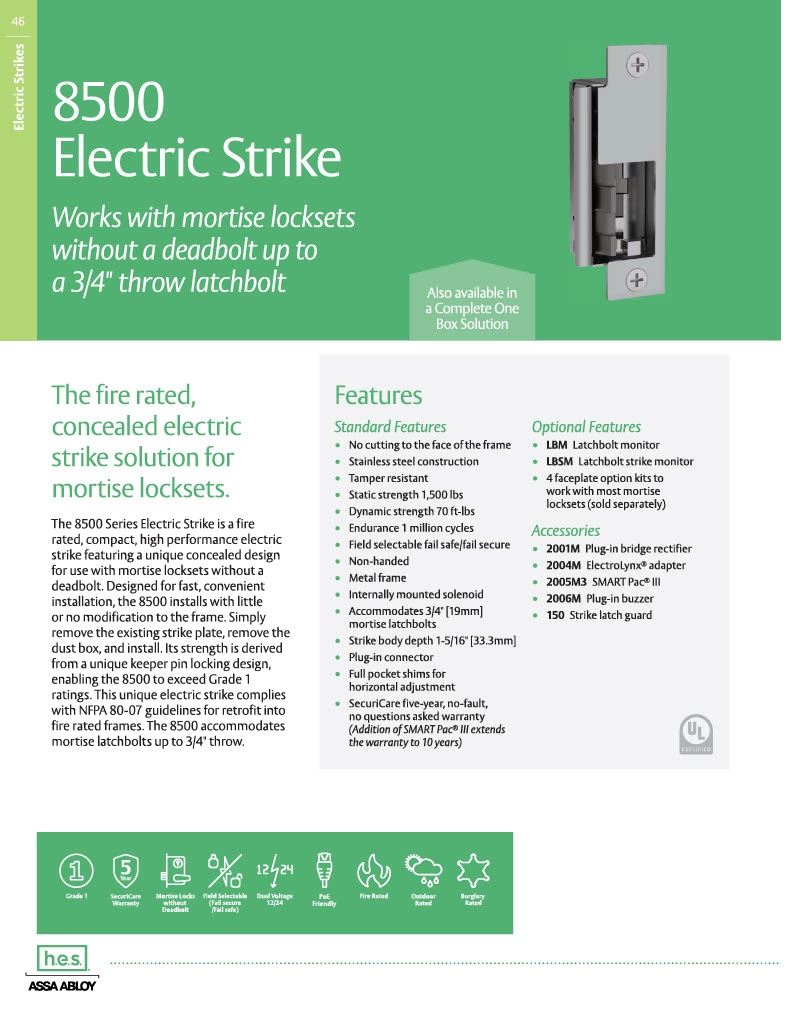

The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install.

Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings.

This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.

Frame application Metal, Wood

Standard Features

No cutting of the face of the frame

Stainless steel construction

Tamper resistant

Static strength 1,500 lbs

Dynamic strength 70 ft-lbs

Endurance 500,000 cycles

Field selectable fail safe / fail secure

Dual voltage 12 or 24 VDC/VAC

Non-handed

Metal or Wood Frame

Internally mounted solenoid

Accommodates 3/4" mortise latchbolts

Strike body depth 1-5/16"

Plug-in connector

Full pocket shims for horizontal adjustment

Five year limited warranty

Finish: 612 - Satin Bronze

Optional Features

LBM - Latchbolt Monitor

LBSM - Latchbolt Strike Monitor

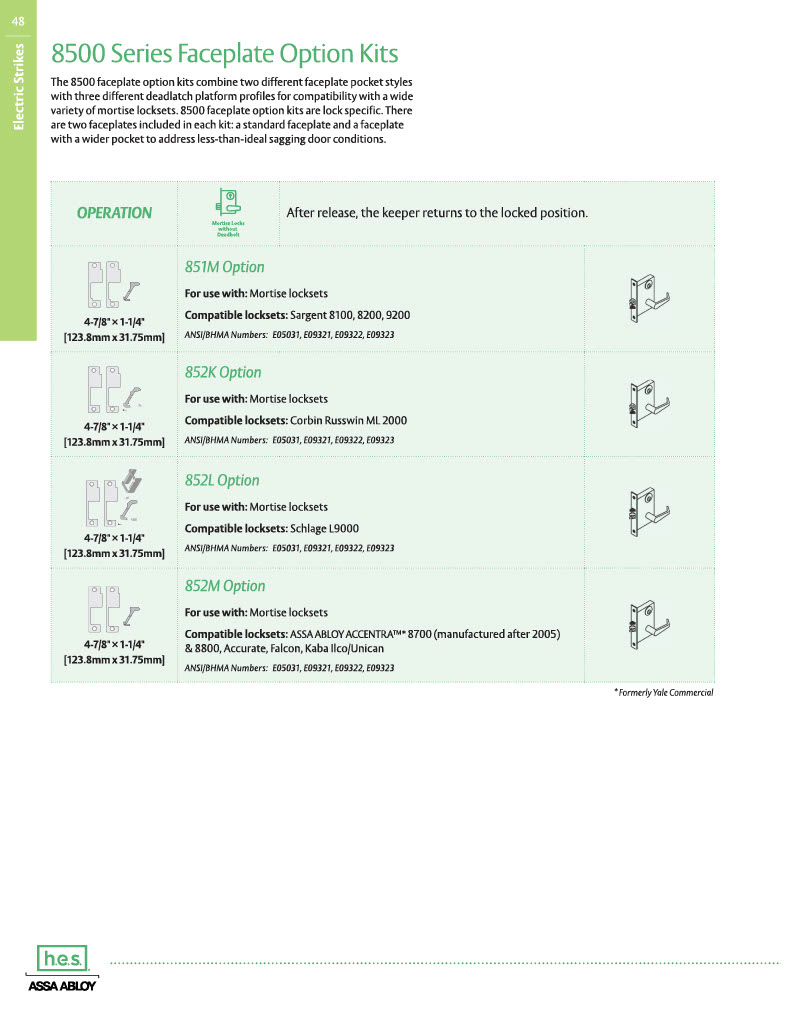

Faceplate Options

The 8500 faceplate options kits combine two different faceplate pocket styles with three different deadlatch profiles for compatibility with a wide variety of mortise locksets. HES 8500 faceplate option kits are lock specific. There are two faceplates included in each kit: a standard faceplate and a faceplate with a wider pocket to address less-than-ideal sagging door conditions.

851M For use with compatible mortise locksets: Sargent 8100, 8200, 9200 ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

852K For use with compatible mortise locksets: Corbin Russwin ML 2000 ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

852L For use with compatible mortise locksets: Schlage L9000 ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323.

852M For use with mortise locksets: Yale 8700* & 8800, Accurate, Falcon, Kaba Ilco/Unican ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323.

*Manufactured after 2005

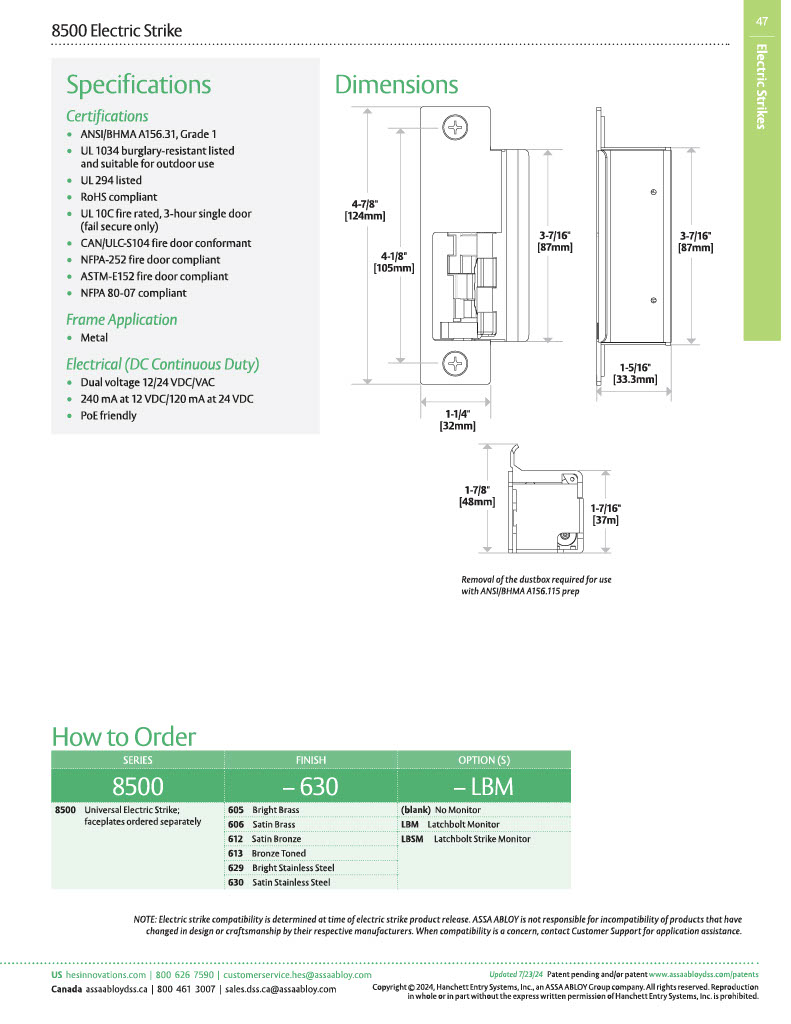

Specifications

UL 10C-fire-rated, 3 hour (fail secure) CAN4-S104(ULC-S104) fire door conformant NFPA 80-07 Compliant UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 NFPA -252 fire door conformant ASTM-E152 fire doorconformantPatents Pending

Electrical .24 Amps @ 12VDC .12 Amps @ 24VDC DC continuous duty/AC intermittent duty only
