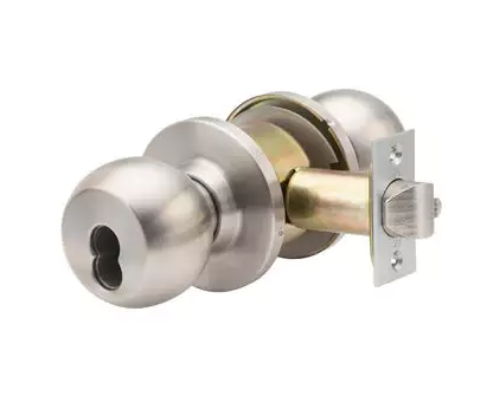

Imperial DL-HVB53IC-US32D Entry Knob Set - Stainless Steel - Accepts SFIC Core

Imperial DL-HVB53IC-US32D EntryKnob Set - Stainless Steel - Accepts SFIC Core

Function:Entry latch - ANSI F109 Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked.

Door Thickness:1 3/4" - 2"

Cylinder:Schlage "C" keyway

Keying:Schlage 6 pin keyed

Key:2 six pin nickel plated

Backset:2 3/4" - face 1 1/8"- 2 1/4"

Latch:5/8" projection stainless steel 3 hour UL

Bore:2 1/8" hole retrofits all cylindrical locksets Strike: ANSI 1 1/4" - 4 7/8" strike

Non-handed and reversible

IC:Small format Figure 8 Interchangeable Core NOT included

Warranty:Lifetime mechanical. 10 year finish.

Finish:US32D

Model:Imperial DL-HVB53IC-US32D, DL-HVB153IC, DL-HVB53ICEntry,PRILOCK HV-B53 2-3/4UL US32D ANSI STRK
