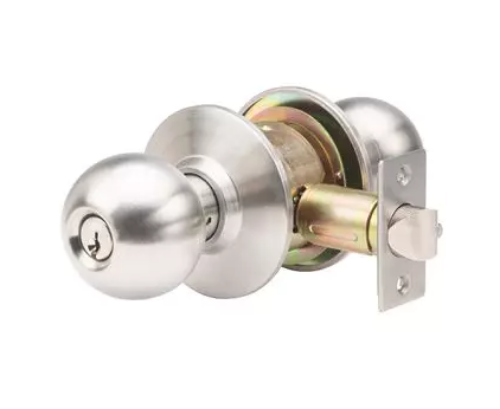

Imperial DL-SVB53 Entry Knob Set

Imperial DL-SVB53 Entry Grade 2 Knob Set

Function:Entry latch - ANSI F109 Turn/push-button locking:Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked. Door Thickness: 1 3/4" - 2"

Backset:2 3/4" - face 1 1/8"- 2 1/4"

Cylinder:Schlage "C" keyway

Keying:Schlage 6 pin keyed

Key:2 six pin nickel plated

Latch:1/2" projection stainless steel 3 hour UL

Bore: 2 1/8" hole retrofits all cylindrical locksets Strike: ANSI 1 1/4" - 4 7/8" strike

Non-handed and reversible

Warranty:Lifetime mechanical. 10 year finish.

Finish:US32D - US3

Model:Imperial DL-SVB53-US32D, DL-SVB53 US3 DLSVB53US3,DL-SVB53 US3, DL-SVB53 Passage, KEYLOCK SV-B53 2 3/4 US32D ANSI SC6-KD
