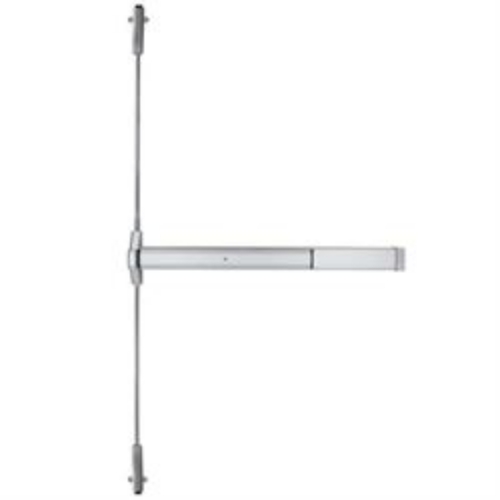

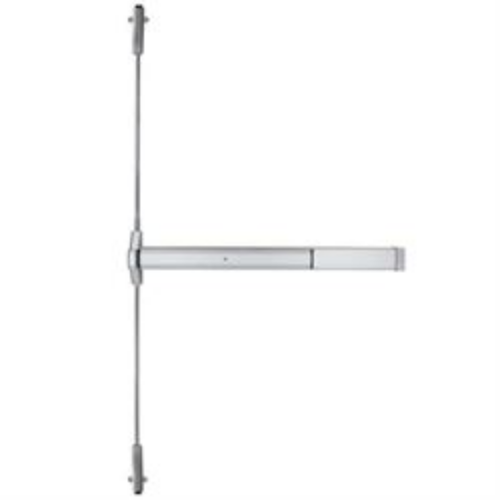

Imperial TH1100-STED36CVR Narrow Reversible Concealed Vertical Rod Exit Device - 36"

Product Details

Imperial*(Global)  TH1100-STED36CVRNarrow Reversible Concealed Vertical Rod Exit Device - 36"*

Cylinder:Includes Mortise Cylinder and Cylinder Mounting Pad with Locking Ring

Underwriters' Laboratories Inc. Listed - Panic Hardware

For use with narrow, medium and wide stile Aluminum doors.

HANDING:Non-handed, Field reversible for LH or RH doors

Dogging:Outside unlatching and dogging by cylinder key or dogging by Hex key in touch bar

Top steel toggle latch and bottom steel rod latch bolt

Unit uses standard mortise cylinder with MS type cam and TH1100-BC cylinder mounting pad

Door Width: 36" , can be field sized to 30"

Finishes:Aluminum and Duronotic

Warranty:10 years

Model:Imperial (Global)  TH1100-STED36CVR, TH1100-STED36CVRAL, TH1100-STED36CVRDU, STOREFRONT, EXIT DEVICE CONCEALED VERT. ROD 36' AL, STOREFRONT, EXIT DEVICE CONCEALED VERT. ROD 36' DU

Imperial TH1100-STED36CVR Narrow Reversible Concealed Vertical Rod Exit Device - 36"

SKU: TH1100-STED36CVR

In Stock

Finish *

$236.37

$203.84

You saved ($32.53)

About this item

The TH1100-STEDCVR narrow stile "Concealed Vertical Rod" exit devices are suitable for aluminum doors where there is no projection on the surface. Manufactured of extruded Anodized Aluminum and is durable enough for most demanding applications. Mortise cylinder and a cylinder mounting pad with locking ring are included.

Resources

Imperial*(Global)  TH1100-STED36CVRNarrow Reversible Concealed Vertical Rod Exit Device - 36"*

Cylinder:Includes Mortise Cylinder and Cylinder Mounting Pad with Locking Ring

Underwriters' Laboratories Inc. Listed - Panic Hardware

For use with narrow, medium and wide stile Aluminum doors.

HANDING:Non-handed, Field reversible for LH or RH doors

Dogging:Outside unlatching and dogging by cylinder key or dogging by Hex key in touch bar

Top steel toggle latch and bottom steel rod latch bolt

Unit uses standard mortise cylinder with MS type cam and TH1100-BC cylinder mounting pad

Door Width: 36" , can be field sized to 30"

Finishes:Aluminum and Duronotic

Warranty:10 years

Model:Imperial (Global)  TH1100-STED36CVR, TH1100-STED36CVRAL, TH1100-STED36CVRDU, STOREFRONT, EXIT DEVICE CONCEALED VERT. ROD 36' AL, STOREFRONT, EXIT DEVICE CONCEALED VERT. ROD 36' DU

TH1100-STED36CVR
Imperial TH1100-STED36CVR Narrow Reversible Concealed Vertical Rod Exit Device - 36"

Product code: TH1100-STED36CVR

In Stock

$203.84

$236.37



TH1100-STED36CVR
Imperial TH1100-STED36CVR Narrow Reversible Concealed Vertical Rod Exit Device - 36"

Product code: TH1100-STED36CVR

In Stock

$203.84

$236.37
