Product Details

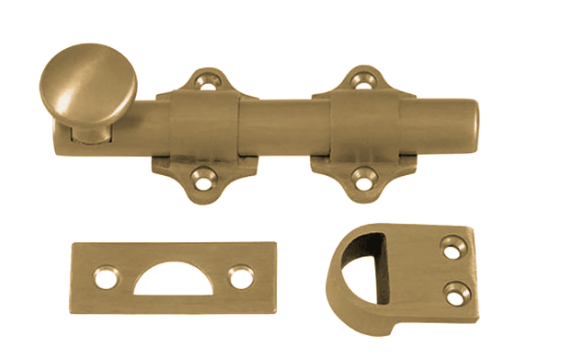

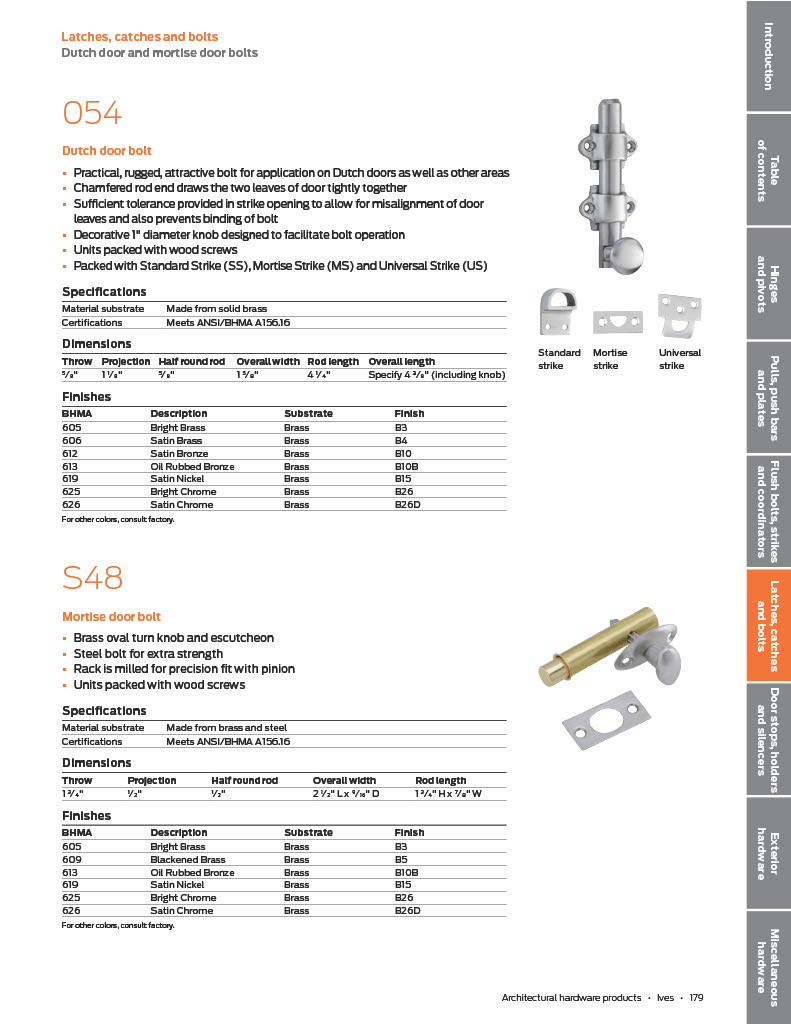

**Ives 054 Dutch Door Bolt
**Practical, rugged, attractive bolt for application on dutch doors as well as other areas.
Chamfered rod end draws the two leaves of door tightly together.
Sufficient tolerance provided in strike opening to allow for misalignment of door leaves and also prevents binding of bolt.
Decorative 1" diameter knob designed to facilitate bolt operation.
Made from solid brass.
Packed with Standard Strike (SS), Mortise Strike (MS) and
Universal Strike (US).
**Dimensions
**Throw: 5/8"
Projection: 1-1/8"
Half Round Rod: 5/8"
Overall Width: 1-5/8"
Rod Length: 4-1/4"
Overall Length: Specify 4-3/8" (Including Knob)
Finish:
B3 (US3) Bright Brass, Clear Coat (605)
B4 (US4) Satin Brass, Clear Coat (606)
B10 (US10) Satin Bronze, Clear Coat (612)
B10B (US10B) Dark Bronze, Oil Rubbed (613)
B15 (US15) Satin Nickel, Clear Coat (619)
B26 (US26) Bright Chrome (625)
B26D (US26D) Satin Chrome (626)
Model:
054B3, 054B4, 054B10,054B10B, 054B15, 054B26, 054B26D
