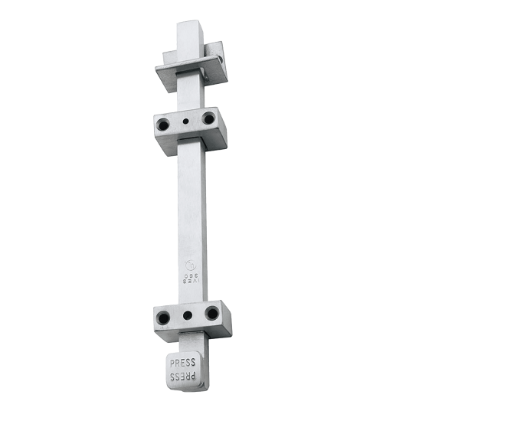

Ives SB360 12" Surface Bolt

**Ives SB360 12" Surface Bolt

Finish:US2C - Zinc Plated (604)

**Surface Bolt has 1-1/4" throw for maximum security.

Jimmy-resistant design, bolt locks automatically when thrown, can be released only be pressing knob toward door while retracting.

Ideal for all types of doors.

12" length.

Unit locks in both the up and down position.

Accepts padlock (not furnished) with maximum 3/8" diameter shackle, minimum 1-3/4" shackle opening height.

Units packed with one-way screws for added security. Standard screws also supplied.

Units packed with both a universal top strike (US) and a mortise bottom strike (MS).

Constructed of heavy duty steel.

Optional Sex Bolts available.

Optional Mortise Strike available.

**Dimensions

**Bar: 3/4" Wide x 3/4" Thick

Overall Width: 2-1/32"

Overall Projection: 2-1/16"

Top Strike: 1-1/2" Wide x 1-1/2" Long x 3/16" Thick

Optional Mortise Strike: 1-5/8" Wide x 3-1/2" Long x 1/8" Thick

Model:SB360US2C 12 IN, SB360US2C12IN
