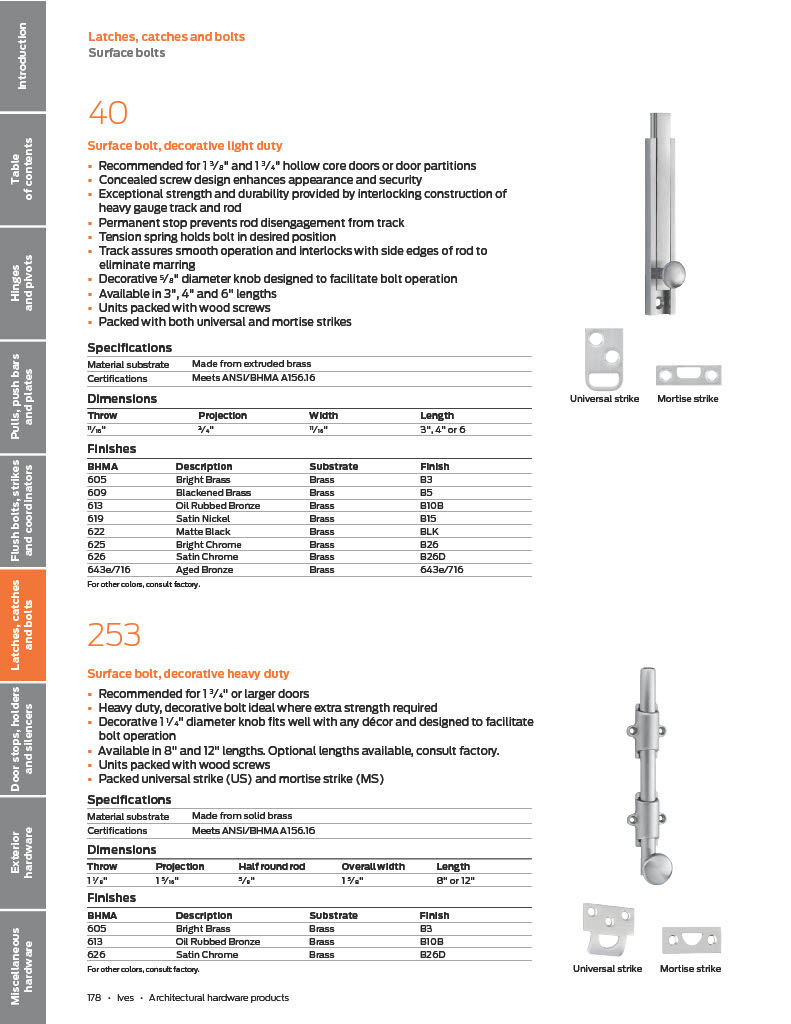

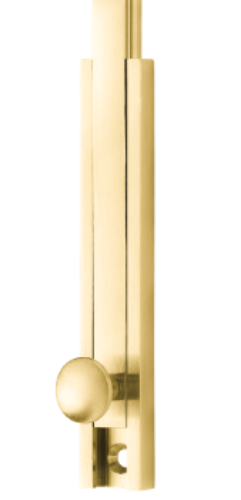

Ives 40 Decorative Light Duty Surface Bolt 4"

**Ives 40 Decorative Surface Bolt 4"

**Concealed screw design enhances appearance and security.

Exceptional strength and durability provided by interlocking construction of heavy gauge track and rod.

Permanent stop prevents rod disengagement from track.

Tension spring holds bolt in desired position.

Track assures smooth operation and interlocks with side edges of rod to eliminate marring.

Decorative 5/8" diameter knob designed to facilitate bolt operation.

Made from extruded brass or aluminum.

Available in 3", 4" and 6" lengths.

Packed with both Universal and Mortise Strikes. Optional Surface Strike available.

**Dimensions

**Throw: 15/16"

Projection: 3/4"

Width: 11/16"

Length: 4"

Finishes: B3 - Brass Material - Bright Brass (605)  B5 - Brass Material - Antique Brass (609)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)

Model: 40PA28 4 IN, 40B3 4 IN,  40B5 4 IN,  40B10B 4 IN,  40B15 4 IN,  40B26 4 IN,  40B26D 4 IN, 40B33IN,  40B54IN, 40B10B4IN,  40B154IN,  40B264IN,  40B26D4IN
