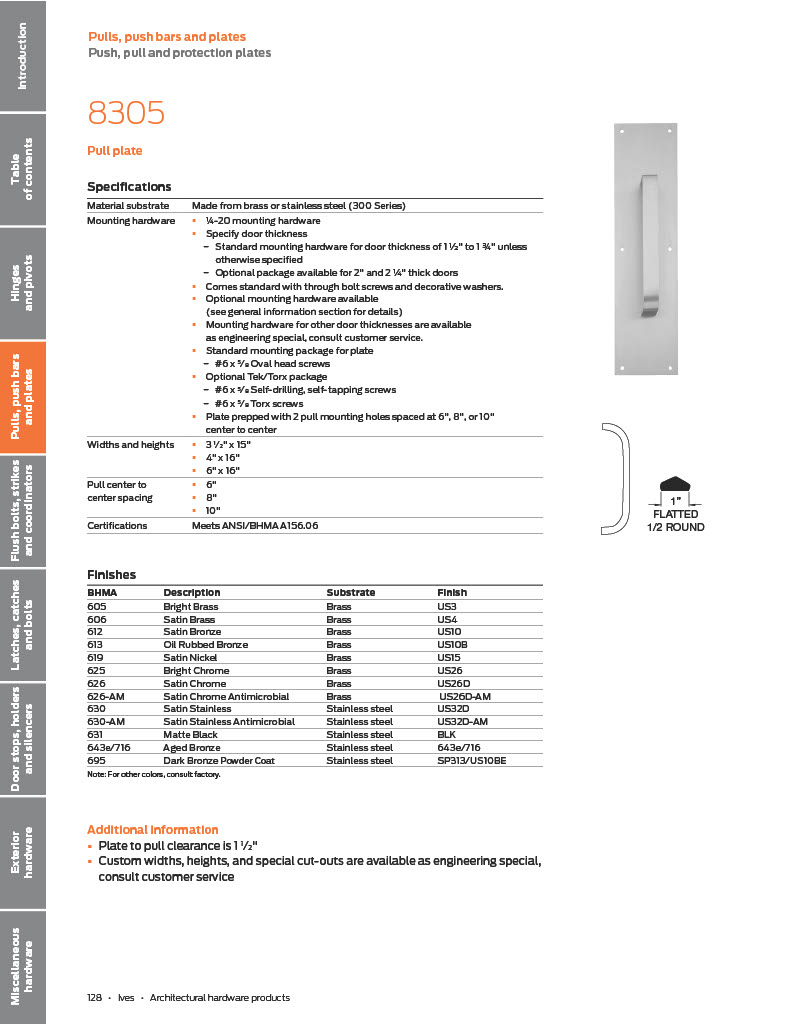

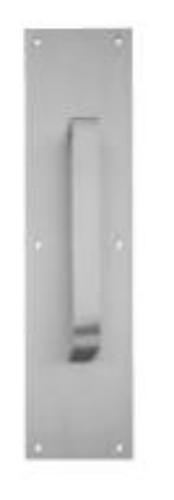

Ives 8305-6, 6" Door Pull - 1" Flatted - 3-1/2" x 15" Plate

Ives 8305-6, 6"Door Pull  - 1Flattened - 3-1/2" x 15" Plate

**Pull Dimensions

**

Projection "A" -2"

Clearance - 1-1/2"

Center to Center "B" - 6"

Overall Length "C" -6-1/2"

Standard Mounting

All mounting hardware is for standard 1-3/4" door.

(2) 1/4-20 x 2-1/4" brass, oval head machine screws; plated to match.

(2) No. 14 countersunk washers; plated to match

Model:

8305, 8305-6, 83056US10, 83056US26, 83056US26D, 83056US32D, 83056US28, 83056B10, 83056B26, 83056B26D, 83056S32D, 83056PA28

Finish: B10 (US10) Satin Bronze, Clear Coat (612) B26 (US26) Bright Chrome (625) B26D (US26D) Satin Chrome (626) S32D (US32D) Satin Stainless Steel (630) PA28 (US28) Satin Alumimum, Clear Anodized (628)
