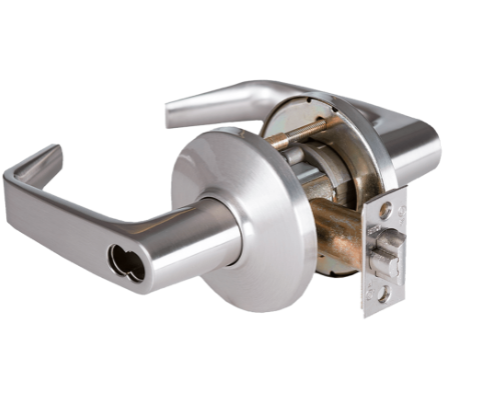

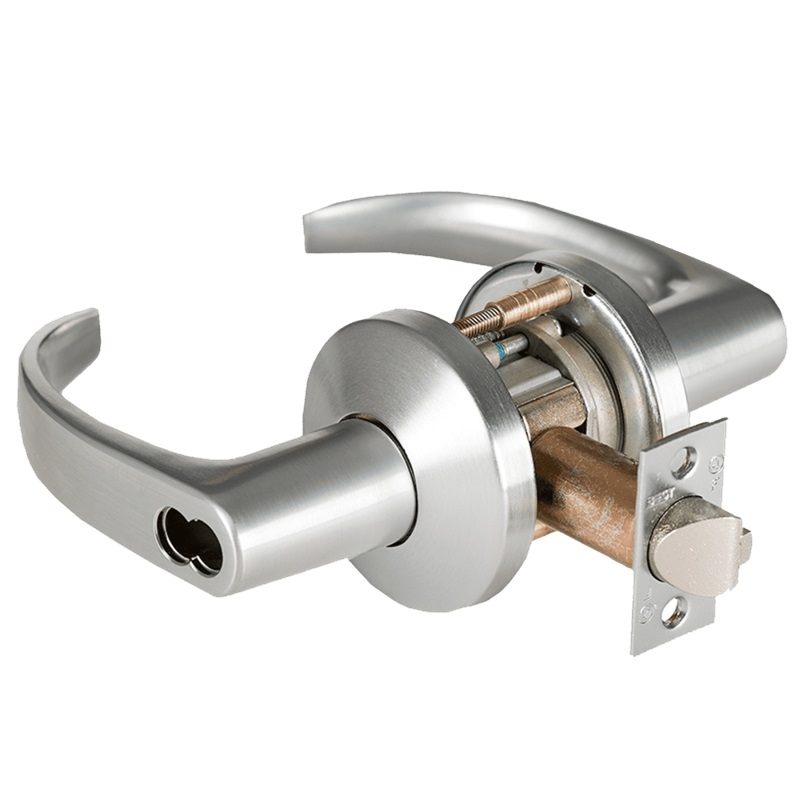

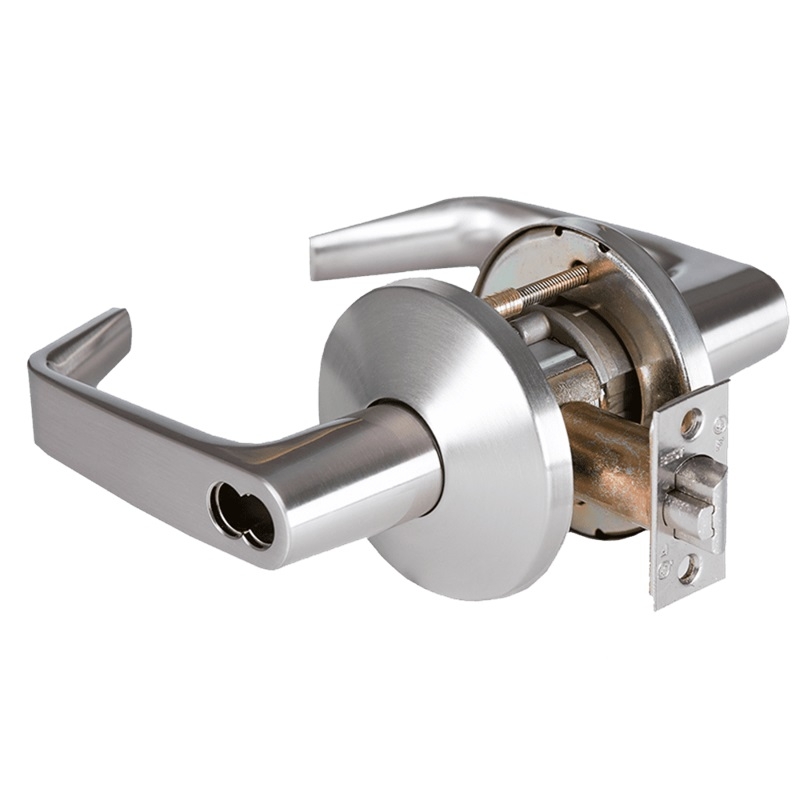

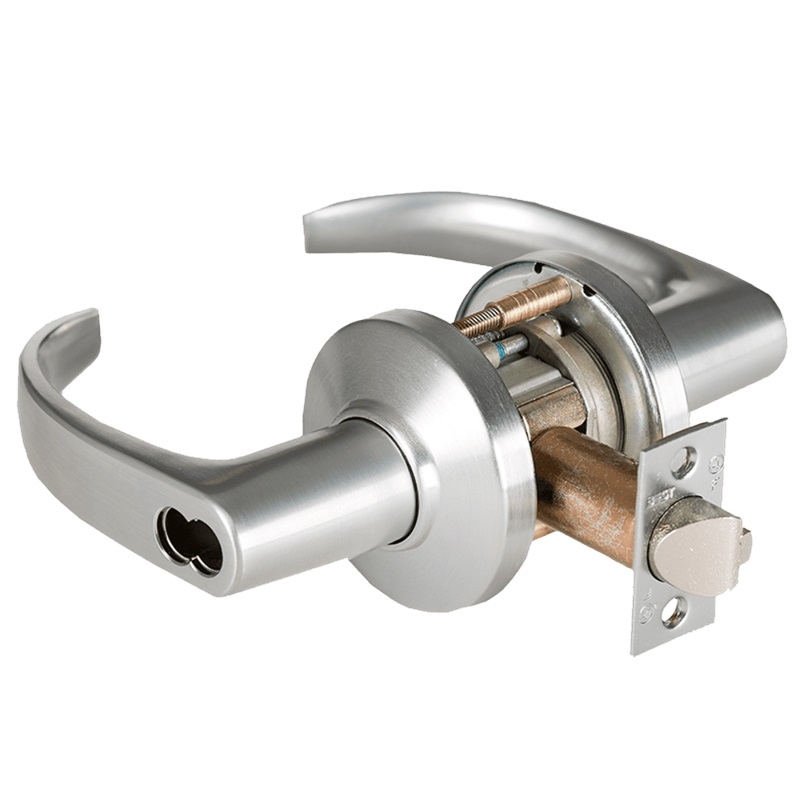

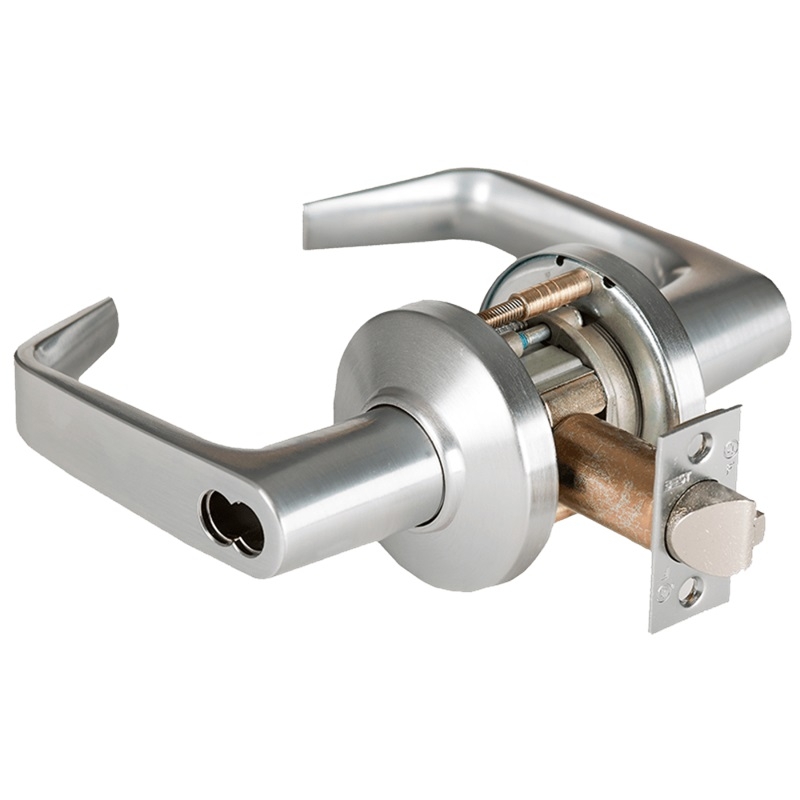

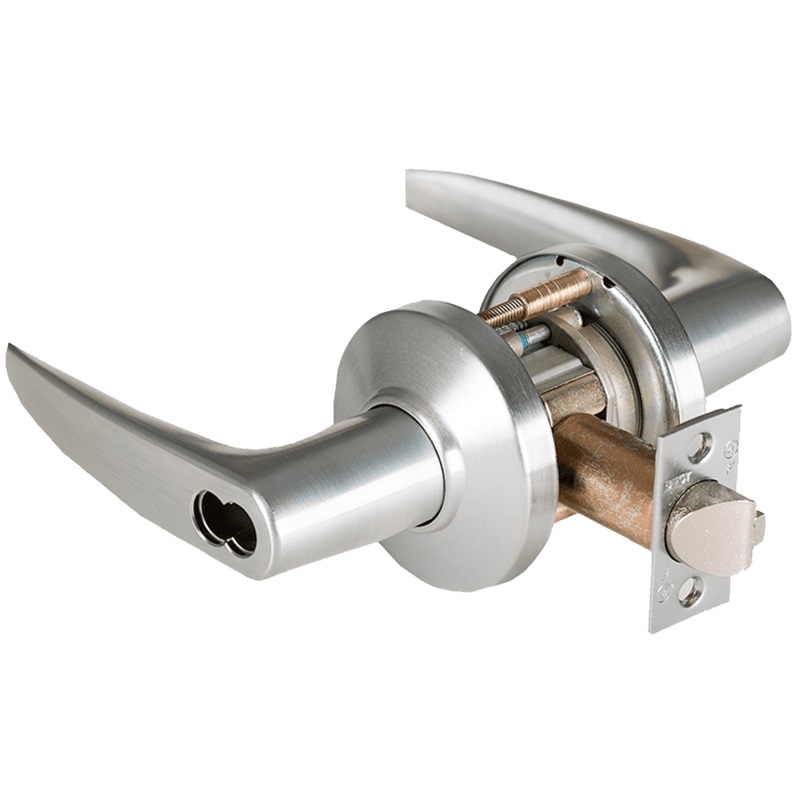

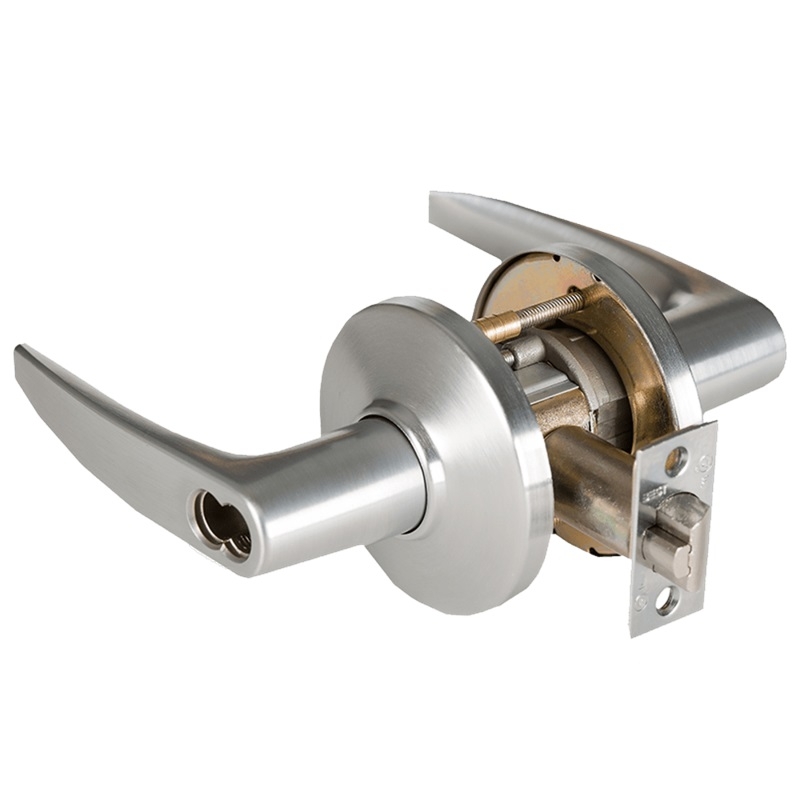

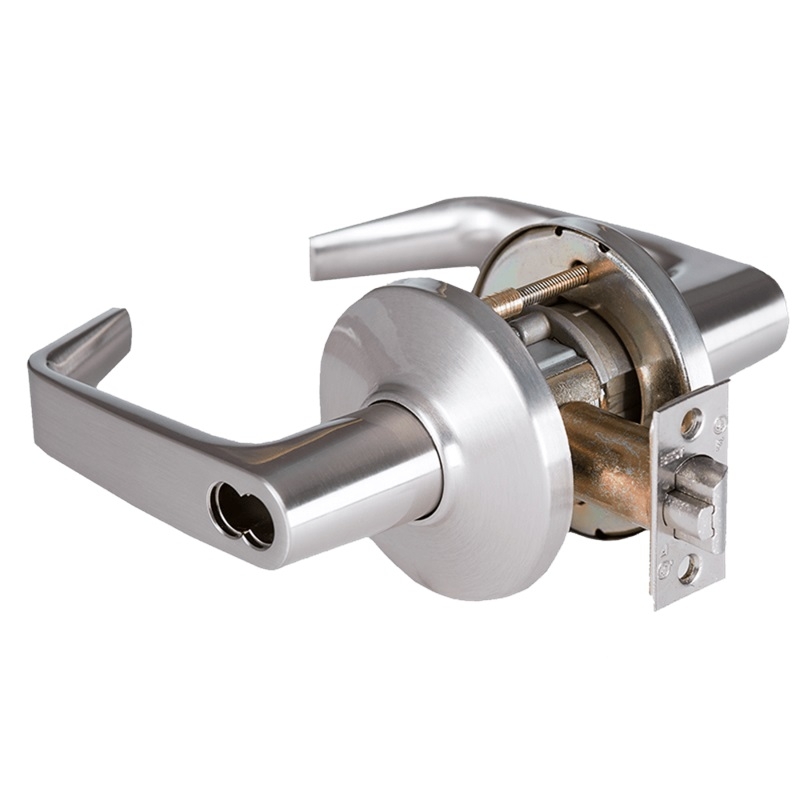

BEST 9K-3-7-G Grade 1 Storeroom Lever Lock - Double Cylinder
ATTENTION: Locksets that secure both sides of the door are con trolled by building codes and the Life Safety Code. In an emergency exit situation, failure to quickly unlock the inside lever could be hazardous or even fatal.

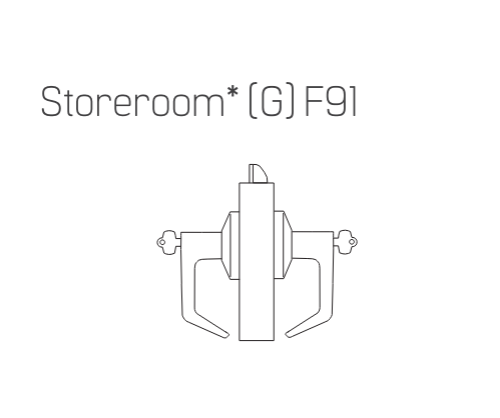

Function:ANSI # F91 Storeroom
Latch operated by:Rotating the outside lever when not locked by key. Rotating the inside lever when not locked by key
Outside Lever Locked by:Turning the key in the inside lever. Turning the key in the outside lever
Outside Lever Unlocked by:Turning the key in the inside lever. Turning the key in the outside lever
Inside Lever Locked by:Turning the key in the inside lever. Turning the key in the outside lever
Inside Lever Unlocked by:Turning the key in the inside lever. Turning the key in the outside lever
Backset- 2 3/4" standard, 3 3/4 available.
Chassis- Critical latch and chassis components are brass or corrosion-treated steel. 2 1/16" diameter to fit 2 1/8" hole in door. (Conforms to ANSI A115.2)
Door thickness- Available for 1 3/4" to 2 1/4" doors only. Spacers available for 1 3/8" doors.

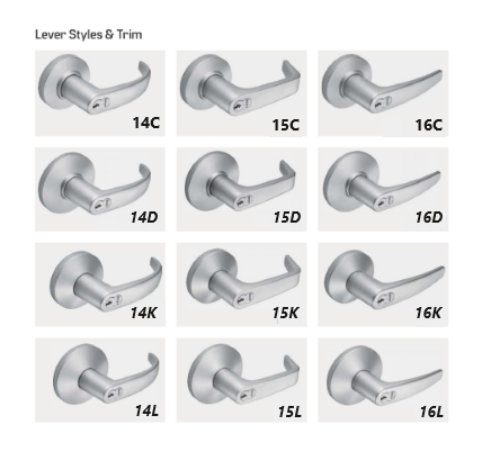

Roses

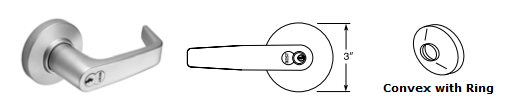

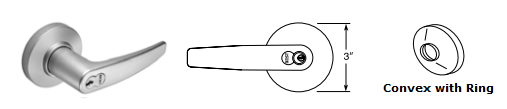

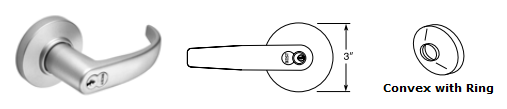

C - 3" Convex

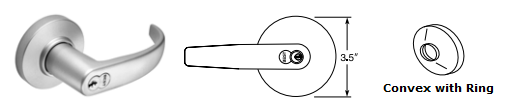

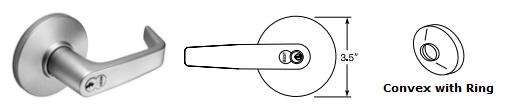

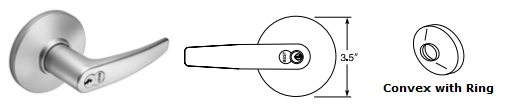

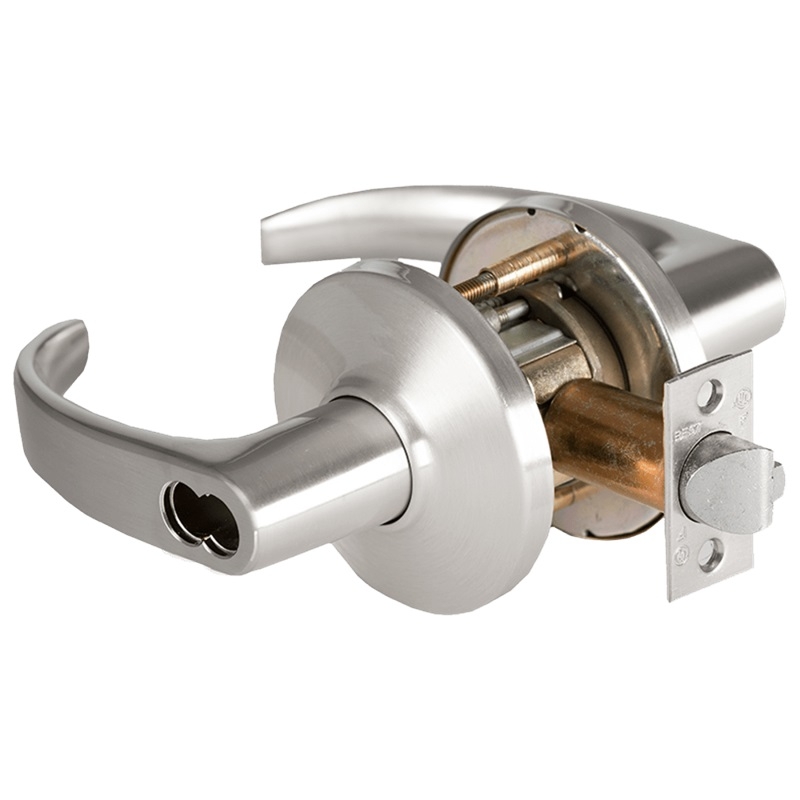

D - 3 1/2" Convex

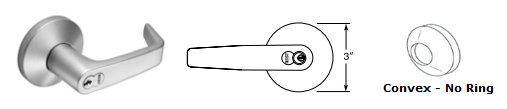

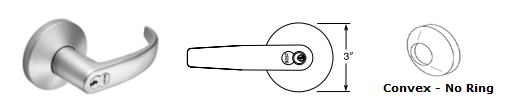

K - 3" Convex - no ring

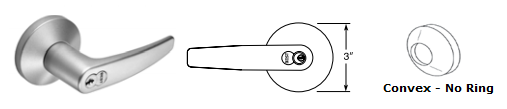

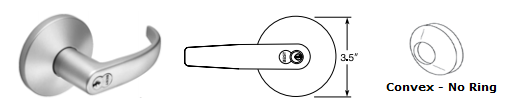

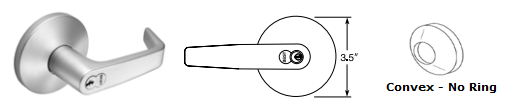

L - 3 1/2" Convex - no ring
Finish - 605 (US3) bright brass, 612 (US10) satin bronze, 613 (US10B) oxidized satin bronze, oil rubbed, 626 (US26D) satin chromium plated

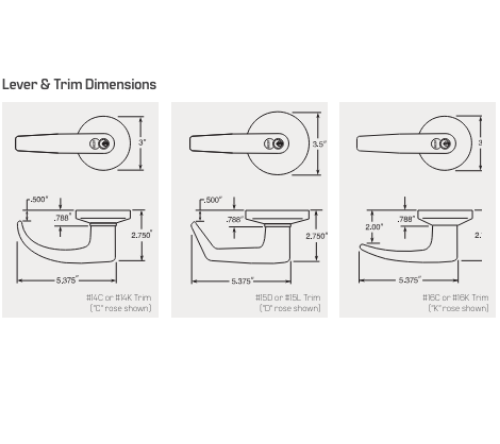

Lever handles- Lever handles are a high-quality zinc alloy. Trim components are brass or bronze. Body is approximately 5/8" in diameter; Handle is approximately 4 3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.
Mounting- In addition to standard door preparation (ANSI A115.2 for 1 3/4" doors), two additional holes are needed for through-bolts. Through-bolts require two 5/16" diameter holes located at 12 o'clock and 6 o'clock positions. A drill jig can be order ed to insure accuracy of the holes.
Projection on door- Approx. 2 3/4" when mounted on 1 3/4" door.
Strike- S3: Conforms to ANSI A115.2 for 1 3/4" doors (4 7/8" x 1 1/4" with curved lip).
Rose locking pin and rose assembly design offers great torque resistance. It prevents the locking pin from twisting, bending, or breaking under attack.The innovative design of the slotted key release cam and locking lug assembly create maximum attack resistance.Even though damaged, the lock still allows key access. In addition, the lever is fully functional from the inside. The hub-mounted torsion spring and strong retractor springs help prevent lever sag and offer a smooth and snappy operation.Strong through-bolt mounting studs increase torque resistance. Heavy rose liner material is highly attack resistant.Strong retractor springs provide resistance to lever sag.Zinc hubs with a shrouded locking lug, guaranteeing higher quality and increased torque resistance.The outside lever sleeve is a seamless one piece construction made of a hardened steel alloy that provides additional reinforcement in the locking lug slot.
Model:Best 9K37G, 9K37G14DS3605, 9K37G14DS3612, 9K37G14DS3613, 9K37G14DS3626, 9K37G15DS3605, 9K37G15DS3612, 9K37G15DS3613, 9K37G15DS3626, 9K37G16DS3605, 9K37G16DS3612, 9K37G16DS3613, 9K37G16DS3626, 9K37G14CS3605, 9K37G14CS3612, 9K37G14CS3613, 9K37G14CS3626, 9K37G15CS3605, 9K37G15CS3612, 9K37G15CS3613, 9K37G15CS3626, 9K37G16CS3605, 9K37G16CS3612, 9K37G16CS3613, 9K37G16CS3626, 9K37G14KS3605, 9K37G14KS3612, 9K37G14KS3613, 9K37G14KS3626, 9K37G15KS3605, 9K37G15KS3612, 9K37G15KS3613, 9K37G15KS3626, 9K37G16KS3605, 9K37G16KS3612, 9K37G16KS3613, 9K37G16KS3626, 9K37G14LS3605, 9K37G14LS3612, 9K37G14LS3613, 9K37G14LS3626, 9K37G15LS3605, 9K37G15LS3612, 9K37G15LS3613, 9K37G15LS3626, 9K37G16LS3605, 9K37G16LS3612, 9K37G16LS3613, 9K37G16LS3626
