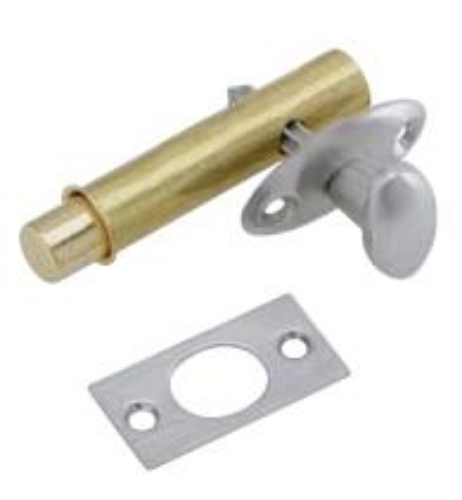

Ives S48 Mortise Door Bolt

Ives S48 Mortise Door Bolt

Brass oval turn knob and escutcheon.

Steel bolt for extra strength.

Rack is milled for precision fit with pinion.

**Dimensions

**Backset: 1-3/4"

Bolt Throw: 1/2"

Bolt Diameter: 1/2"

Case: 2-1/2" Long x 9/16" diameter

Strike: 1-3/4" High x 7/8" Wide

Finish: B3 - (US3) Bright Brass (605) B5 - (US5) Satin Brass, Blackened, Satin Relieved (609) B10B - (US10B) Oil Rubbed Bronze (613) B15 - (US15) Satin Nickel, Clear Coat (619) B26 - (US26) Bright Chrome (625) B26D - (US26D) Satin Chrome (626)

Model: S48, S48B3, S48B5, S48B15, S48B10B, S48B26, S48B26D
