Product Details

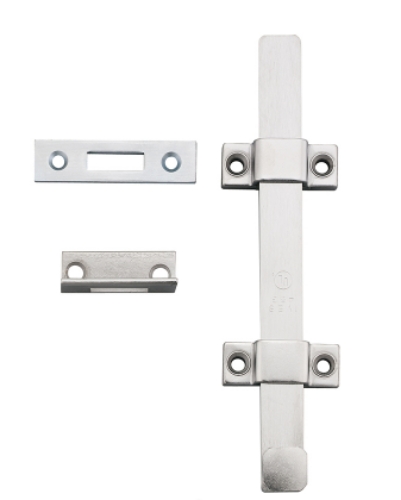

Ives SB453 Surface Bolt
Surface Bolt has 1-3/16" throw for maximum security.
Strong tension springs prevent creep.
Ideal for all types of doors.
Available 8" & 12" lengths.
Units packed with standard screws for added security.
Units packed with both a universal top strike (US) and a mortise bottom strike (MS).
Constructed of heavy duty steel.
Optional Sex Bolts available.
Optional Thru Bolts available.
Dimensions
Bar: 3/4" Wide x 1/4" Thick
Overall Width: 2-1/32"
Overall Projection: 1-5/16"
Top Strike: 1-1/2" Wide x 1-1/2" Long x 3/16" Thick
Bottom Strike: 1-5/8" Wide x 3-1/2" Long x 1/8" Thick
Finish: US3 - Bright Brass (632) US4 Satin Brass, Clear Coat (633) US10 - Satin Bronze (639) US10B - Oil Rubbed Bronze (640) US26D - Satin Chrome (652) US2C - Zinc Plated (604)
Model: SB453, SB4538, SB45312, SB453US2C8TB, SB453US26D8TB, SB453US10B8TB, SB453US108TB, SB453US48TB, SB453US38TB, SB453US2C12TB, SB453US26D12TB, SB453US10B12TB, SB453US1012TB, SB453US412TB, SB453US312TB
