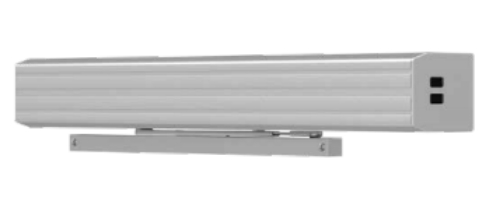

LCN 4631 Auto Equalizer Power Operator - Pull Side Mount

LCN 4631 Auto Equalizer Power Operator - Top jamb (pull side) mounted

*Electric Closer:120V*

Finish:Aluminum or Dark Bronze

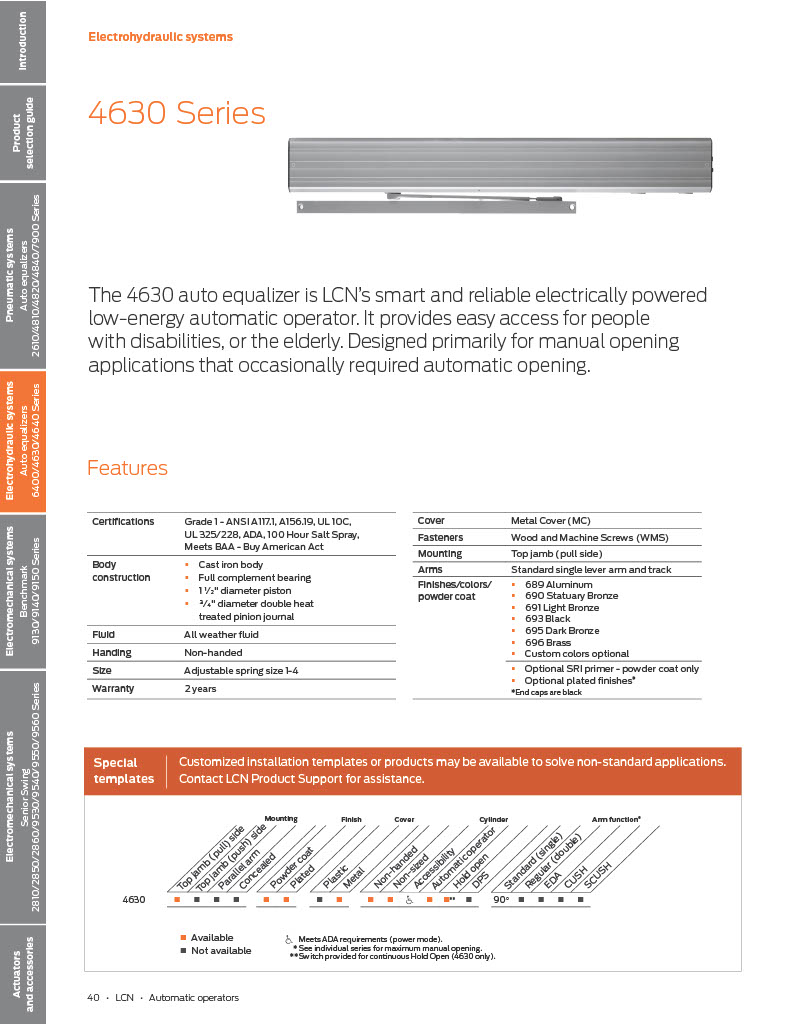

The 4600 Series electric Auto

Equalizerseries combines all door operator anddoor control functions in one package. This versatile, easy-to-install system is lowmaintenance and offers the following features:

Allows 90 Degree of power opening & Manual opening up to 170 DegreeEasy access to on / off and hold open switches.Quiet, reliable operator delivers consistent performance.No expensive service contracts or periodic maintenance required.Fail safe operator acts as a standard door closer in event of power outage.Low energy operator does not require guard rails or safety mats.Advanced, easy-to-install controller module allows independent adjustment of:

Door Opening Speed Delay / Trigger Time for Sequential Option Door Opening Force Electric Strike Delay Time Hold Open Time 90 Degree Slow Down Alternate Action Timeout Safety Scanner Lockout Time

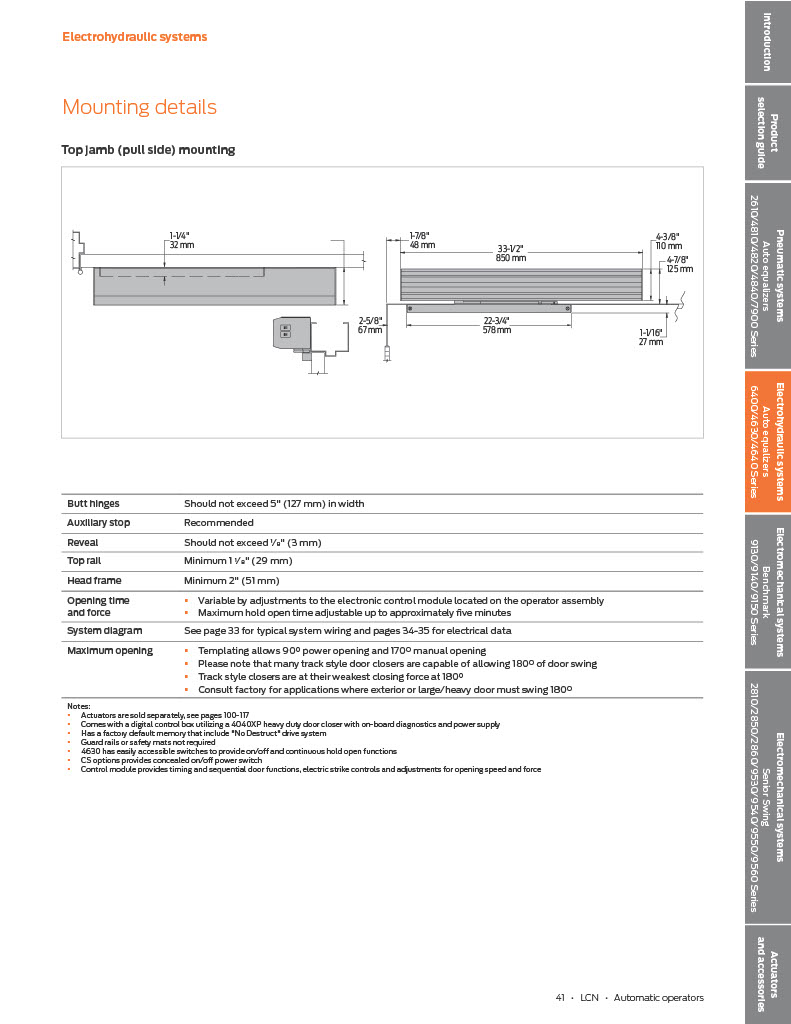

Meets ADA requirements (power mode).Non-sized cylinders for interior doors to 4'0" and exterior doors to 3'0". Non-Sized 4630 series cylinder is adjustable from size 1 through size 4 and is shipped set to size 3. Closing power of 4630 Series closers may be increased 50%.Non-handed for either right or left swinging door.The 4631 is designed for pull side installation on the top jamb and requires a minimum door width of 36" and a 2" min. head frame. To p rail of door must be 1 1/8" min. and butt hinge size should not exceed 5". Maximum pull side reveal of 1/8". Maximum door weight is 225 lbs

Electrical Data & Certifications:See next Tab

Electrical Data

The 4600 series can accommodate both surface and concealed wiring applications. It requires 120VAC supplied to the operator. Maximum AC current load is 1 amp. A built-in 12VDC & 24VDC power supply (rated for 1 amp combined current load) can power peripheral actuators, electronic strikes or mag-lock devices. The 4600 series is compatible with all LCN 8300 series actuators and scanners. High-security card readers or keypads may also be used as actuators. The 4600 series will accept inputs from a wide variety of security systems, allowing security personnel to regulate accessability. A 4600 will accept a fire alarm input to deactivate unit when fire alarm is triggered. A circuit breaker and resettable fuses protect high-voltage inputs and low-voltage output circuits, respectively. To ensure proper electrical functions, installation should be made when temperature is between 35 F up to 120 F

Certifications

4630 Series is UL and cUL listed with standard arm for self-closing doors and meets the provisions of ANSI Standards A117.1, A156.19, and the Americans with Disabilities Act.
