Product Details

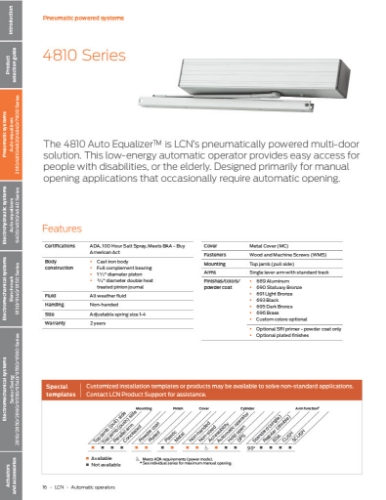

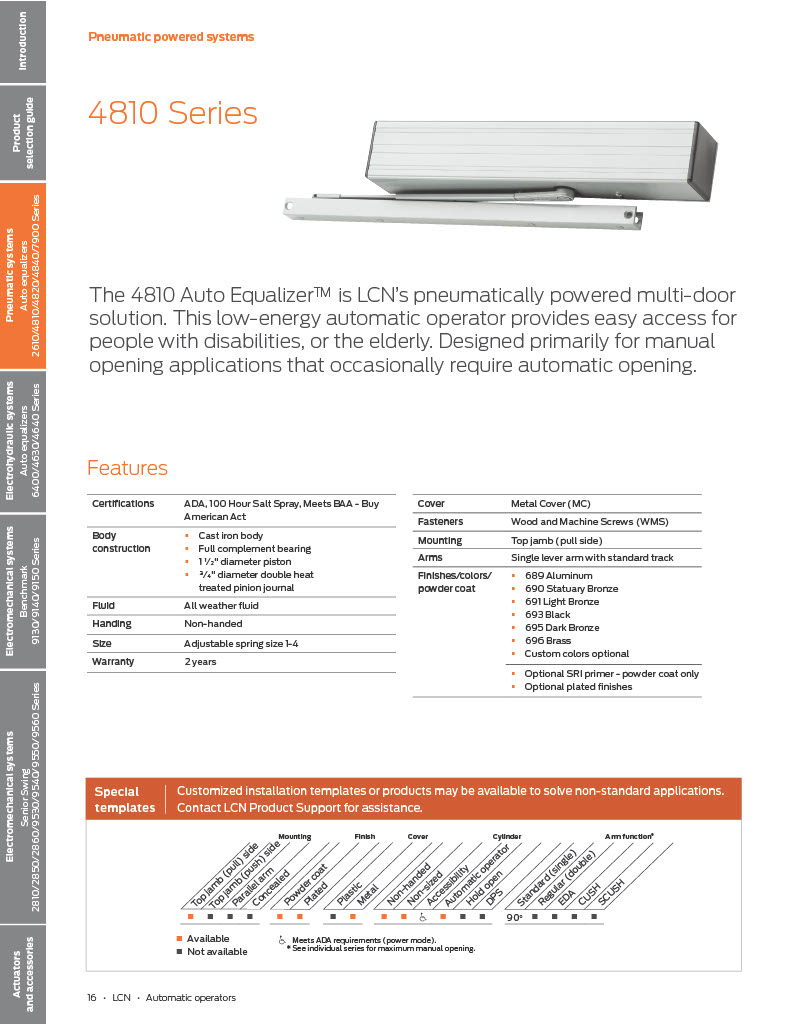

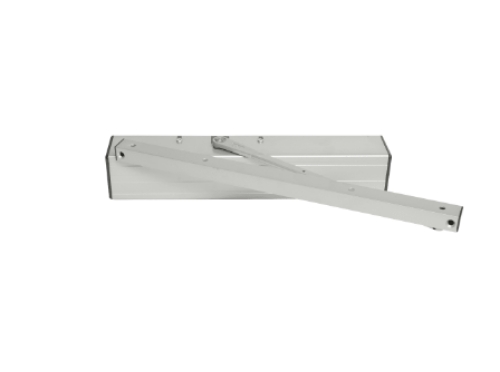

LCN 4811 STD Auto Equalizer Pneumatically Powered - Top jamb (Pull Side)
Non-sized:4810 Series cylinder is adjustable from size 1 through size 4 and is shipped set to size 3
Closing power of 4810 Series closers may be increased 50%
Requires control box with integral compressor or control box using auxiliary air supply.
Certifications Grade:1
ANSI A117.1, A156.19 UL228, ADA, 100 Hour Salt Spray, Meets BAABuy American Act
Body Construction:
Cast Iron BodyFull Complement Bearing1-1/2˝ Diameter Piston3/4˝ Diameter Double Heat Treated Pinion Journal
Fluid:All Weather Fluid
Fasteners:Wood and machine screws

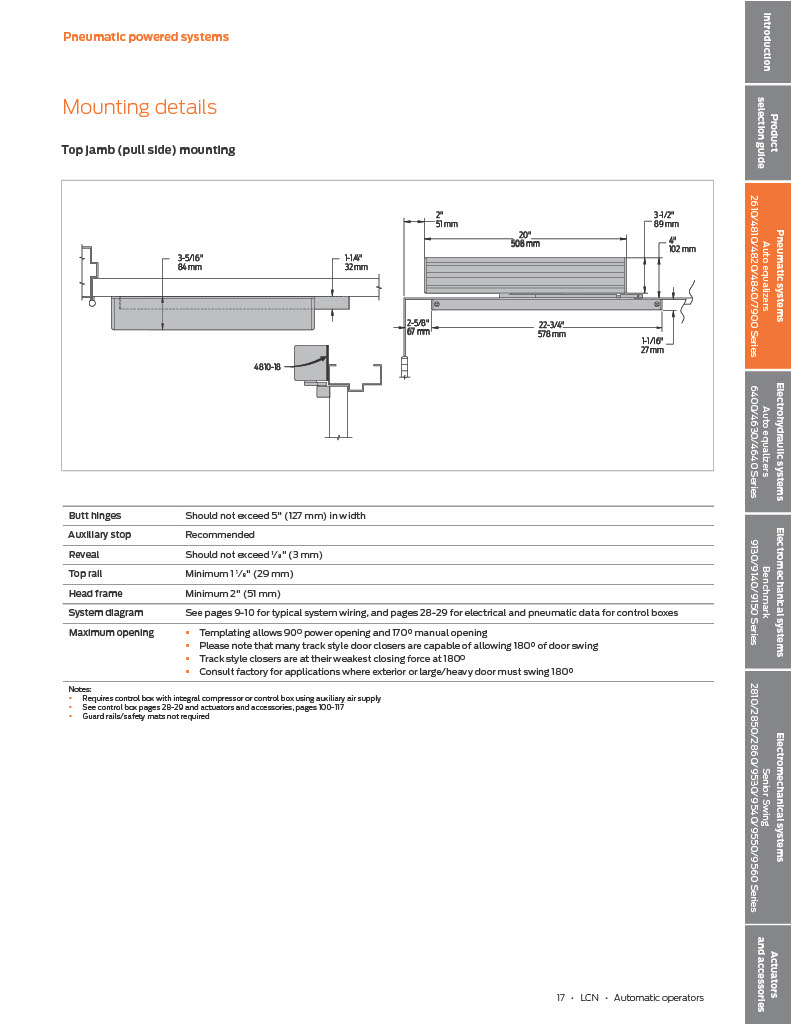

Mounting:Top jamb (Pull Side)
Reveal:Should not exceed 1/8˝ (3 mm)
Head Frame:Minimum 2˝ (51 mm)
Top Rail:Minimum 1-1/8˝ (29 mm)
